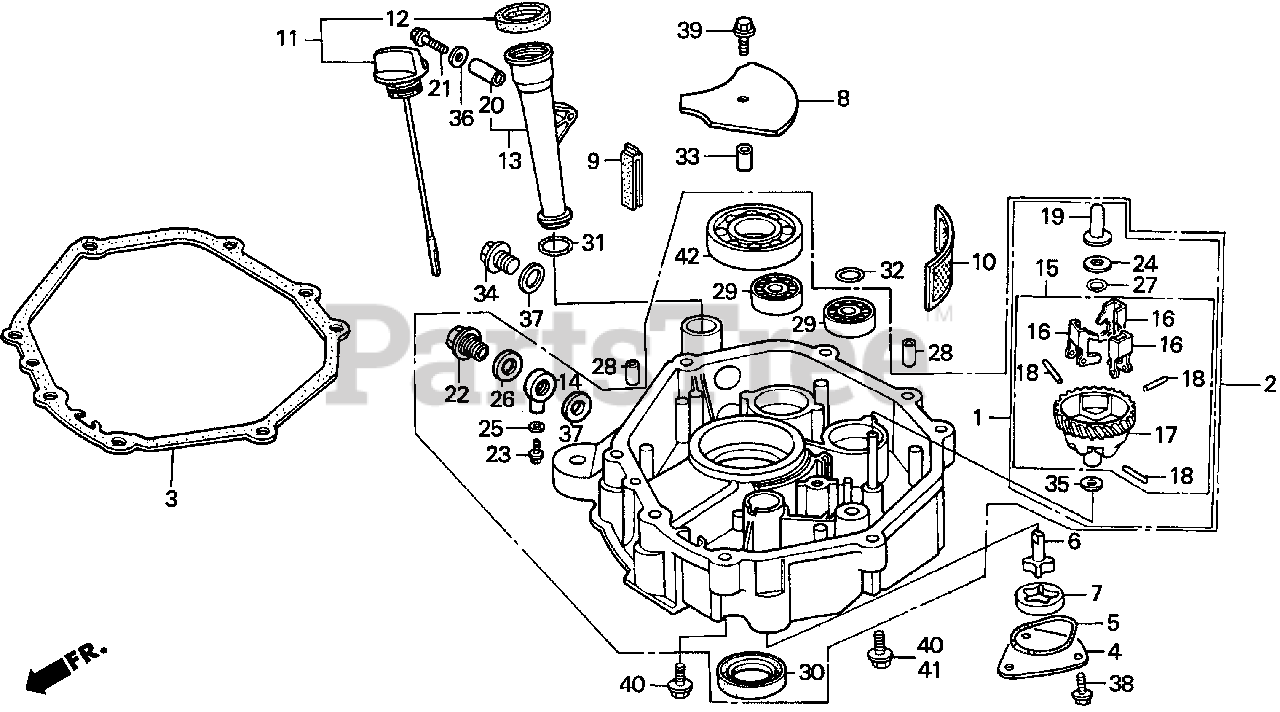

H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) OIL PAN Parts Diagram

Riding Mower, Made in Japan

OIL PAN Parts Diagram

  • Title

1

Honda 06165-ZE3-000

SEE PART DETAILS - SUP; GOVERNOR KIT Use from Engine SN 2086153.
(Superseded to 06165-ZE3-020)

Note: (Optional).Use from Engine SN 2086453.

$24.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE3-010

SEE PART DETAILS - SUP; GOVERNOR KIT Use from Engine SN 2086153.
(Superseded to 06165-ZE3-020)

Note: (Optional).Use from Engine SN 2086453.

$24.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE3-020

SEE PART DETAILS - PRI; GOVERNOR KIT Use from Engine SN 2086153.

Note: (Optional).Use from Engine SN 2086453.

$24.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE8-000

GOVERNOR KIT Use up to Engine SN 2086152.

Note: (Optional).Use up to Engine SN 2086452.

$21.99

$

Usually ships in 3-6 days

0

2

Honda 113A0-ZE9-L20

PAN ASSY., OIL (NOT AVAILABLE)

Note: Use up to Engine SN 2086152.

$

$

Not available

2

Honda 11300-ZE9-L21

PAN ASSY., OIL

Note: Use from Engine SN 2086153 to 2102951.

$

$

Not available

2

Honda 11300-ZF5-Q00

PAN ASSY., OIL

Note: Use from Engine SN 2102952.

$353.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE9-306

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 4428223).
(Superseded to 11381-ZE9-801)

Note: Use up to Engine SN 2057739.

$16.99

$

In Stock, only 3 left!

0

3

Honda 11381-ZE9-800

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 4145660).
(Superseded to 11381-ZE9-801)

Note: Use up to Engine SN 2104745.

$16.99

$

In Stock, only 3 left!

0

3

Honda 11381-ZE9-801

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 6495758).

Note: Use from Engine SN 2104746.

$16.99

$

In Stock, only 3 left!

0

4

Honda 15130-ZE8-000

COVER, OIL PUMP (Honda Code 2089886).

$9.99

$

Usually ships in 3-6 days

0

5

Honda 15131-ZE9-003

SEE PART DETAILS - PRI; O-RING, PUMP COVER (Honda Code 2278331).

$4.49

$

In Stock, only 3 left!

0

6

Honda 15330-ZE8-000

ROTOR (INNER) (Honda Code 2089902).

$22.99

$

Usually ships in 3-6 days

0

7

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER) (Honda Code 0800219).

$18.99

$

Usually ships in 3-6 days

0

8

Honda 15334-ZE8-010

PLATE, OIL FILTER (Honda Code 2461655).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 15335-ZE9-000

RUBBER, OIL RETURN (Honda Code 2278349).

$5.99

$

Usually ships in 3-6 days

0

10

Honda 15421-ZE9-003

SEE PART DETAILS - PRI; SCREEN, OIL FILTER (Honda Code 2608644).

$15.99

$

In Stock, only 1 left!

0

11

Honda 15600-ZF5-000

SEE PART DETAILS - SUP; CAP ASSY., OIL FILLER
(Superseded to 15600-Z5N-800)

$4.49

$

In Stock, only 2 left!

0

12

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

13

Honda 15630-ZE8-000

EXTENSION, OIL FILLER (Honda Code 2089977).
(Superseded to 15630-Z5N-800)

$5.99

$

In Stock, only 1 left!

0

14

Honda 15642-ZF5-L00

JOINT, OIL DRAIN

$10.99

$

Usually ships in 3-6 days

0

15

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

Note: Use from Engine SN 2086153.

$31.99

$

In Stock, only 2 left!

0

15

Honda 16510-ZE8-000

GOVERNOR ASSY. (Honda Code 2278521).

Note: Use up to Engine SN 2086152.

$

$

Not available

16

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$7.99

$

Usually ships in 3-6 days

0

17

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

Note: Use from Engine SN 2086153.

$18.99

$

Usually ships in 3-6 days

0

17

Honda 16512-ZE8-000

HOLDER, GOVERNOR WEIGHT (Honda Code 2090108).

Note: Use up to Engine SN 2086152.

$19.99

$

Usually ships in 3-6 days

0

18

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

19

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR (Honda Code 2025989).
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, Qty 5

0

19

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, Qty 5

0

20

Honda 17240-ZE6-000

COLLAR, EXTENSION Use up to Engine SN 1257294.

$4.99

$

In Stock, only 1 left!

0

21

Honda 90014-ZE8-000

BOLT, HEAD COVER (Honda Code 2092955).

$6.99

$

Usually ships in 3-6 days

0

22

Honda 90031-ZF5-L00

BOLT, OIL JOINT

$29.99

$

Usually ships in 3-6 days

0

23

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

24

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16) (Honda Code 0465591).

Note: Use up to Engine SN 2083993.

$1.99

$

In Stock, only 2 left!

0

25

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

26

Honda 90601-ZF5-L00

WASHER, OIL DRAIN (24MM)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

27

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER (Honda Code 0928101).

$1.99

$

Usually ships in 3-6 days

0

28

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

Note: Use from Engine SN 1106311.

$3.99

$

In Stock, only 2 left!

0

28

Honda 94301-08120

SEE PART DETAILS - PRI; PIN A, DOWEL (8X12) (Honda Code 0069328).

Note: Use up to Engine SN 1106310.

$2.99

$

Usually ships in 3-6 days

0

29

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202) (Honda Code 3132263).

$18.99

$

Usually ships in 3-6 days

0

30

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$10.99

$

In Stock, Qty 8

0

31

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2) Use from Engine SN 1257295.

$2.49

$

In Stock, Qty 12

0

32

Honda 91302-ZE9-003

SEE PART DETAILS - PRI; O-RING (11.8X2.4)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 91501-ZF5-000

COLLAR, OIL FILTER SETTING (Honda Code 3132271).

$3.99

$

Usually ships in 3-6 days

0

35

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

36

Honda 94103-06700

WASHER, PLAIN (6MM) (Honda Code 0622324).

$0.99

$

In Stock, Qty 5

0

37

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, only 4 left!

0

38

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

39

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0

40

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

Note: Use up to Engine SN 2100576.

$2.99

$

Usually ships in 3-6 days

0

40

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

Note: Use from Engine SN 2100577.

$2.99

$

Usually ships in 3-6 days

0

41

Honda 95701-08060-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526).

Note: Use from Engine SN 2100577.

$3.49

$

In Stock, only 1 left!

0

42

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

42

Honda 96100-62073-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207) (Honda Code 0572206).
(Superseded to 96100-62070-00)

Note: Use from Engine SN 2102952.

$56.99

$

Usually ships in 3-6 days

0
