H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) MUFFLER Parts Diagram

Riding Mower, Made in Japan

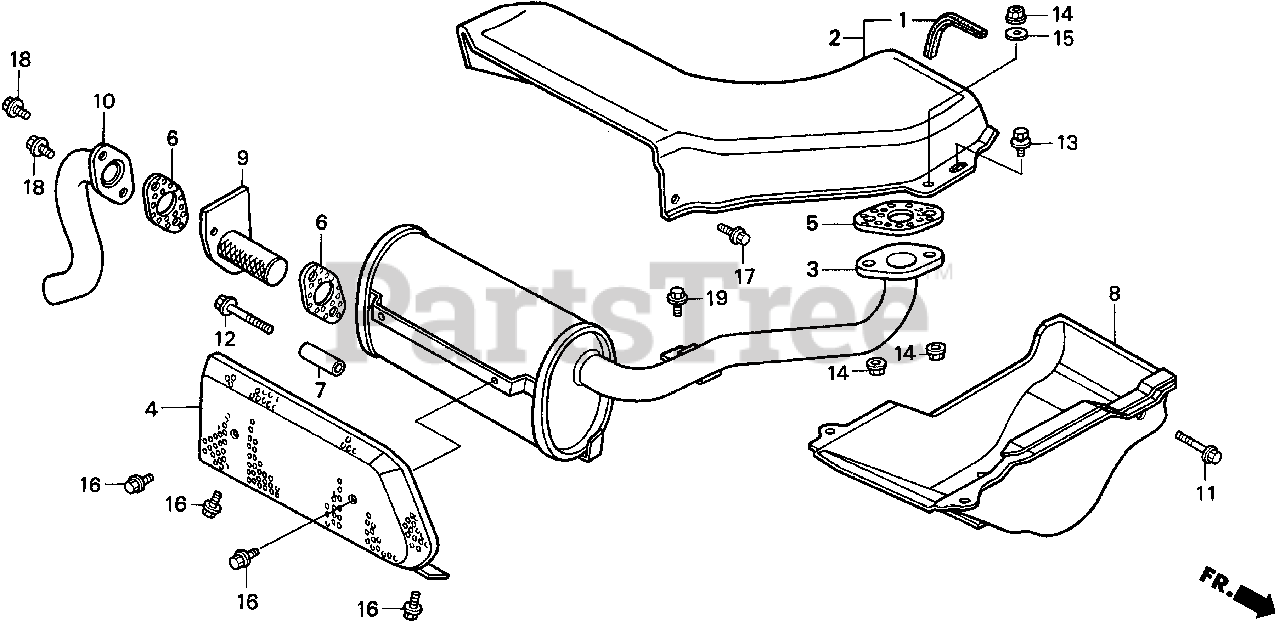

MUFFLER Parts Diagram

  • Title

1

Honda 17521-HA7-670

RUBBER, PROTECTOR

$5.49

$

Usually ships in 3-6 days

0

2

Honda 18305-763-A03

PROTECTOR ASSY., HEAT (UPPER)

$107.99

$

Usually ships in 3-6 days

0

3

Honda 18310-763-B03

MUFFLER

$317.99

$

Usually ships in 3-6 days

0

4

Honda 18321-763-A00

PROTECTOR, MUFFLER

$84.99

$

Usually ships in 3-6 days

0

5

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

5

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

$4.99

$

In Stock, Qty 20+

0

6

Honda 18394-763-A40

GASKET, TAIL PIPE

Note: Use up to Frame SN 6006347.

$5.49

$

Usually ships in 3-6 days

0

6

Honda 18394-763-A40

GASKET, TAIL PIPE

$5.49

$

Usually ships in 3-6 days

0

6

Honda 18394-763-A40

GASKET, TAIL PIPE

Note: Use from Frame SN 6006348 to 6006347.

$5.49

$

Usually ships in 3-6 days

0

7

Honda 18335-751-000

COLLAR, MUFFLER JOINT

$7.99

$

Usually ships in 3-6 days

0

8

Honda 18344-763-B01

PROTECTOR, HEAT (LOWER)

$84.99

$

Usually ships in 3-6 days

0

9

Honda 18355-751-600

ARRESTER, SPARK (NOT AVAILABLE)

Note: Use up to Frame SN 6006347.

$

$

Currently unavailable

9

Honda 18355-751-600

ARRESTER, SPARK (NOT AVAILABLE)

Note: Use from Frame SN 6006348.

$

$

Currently unavailable

10

Honda 18390-763-A02

PIPE, TAIL

$62.99

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

12

Honda 90180-MA3-660

BOLT, FLANGE (8X55)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 93404-06012-00

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

15

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

17

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

18

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0

19

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0
