H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) FOOT BRAKE PEDAL Parts Diagram

Riding Mower, Made in Japan

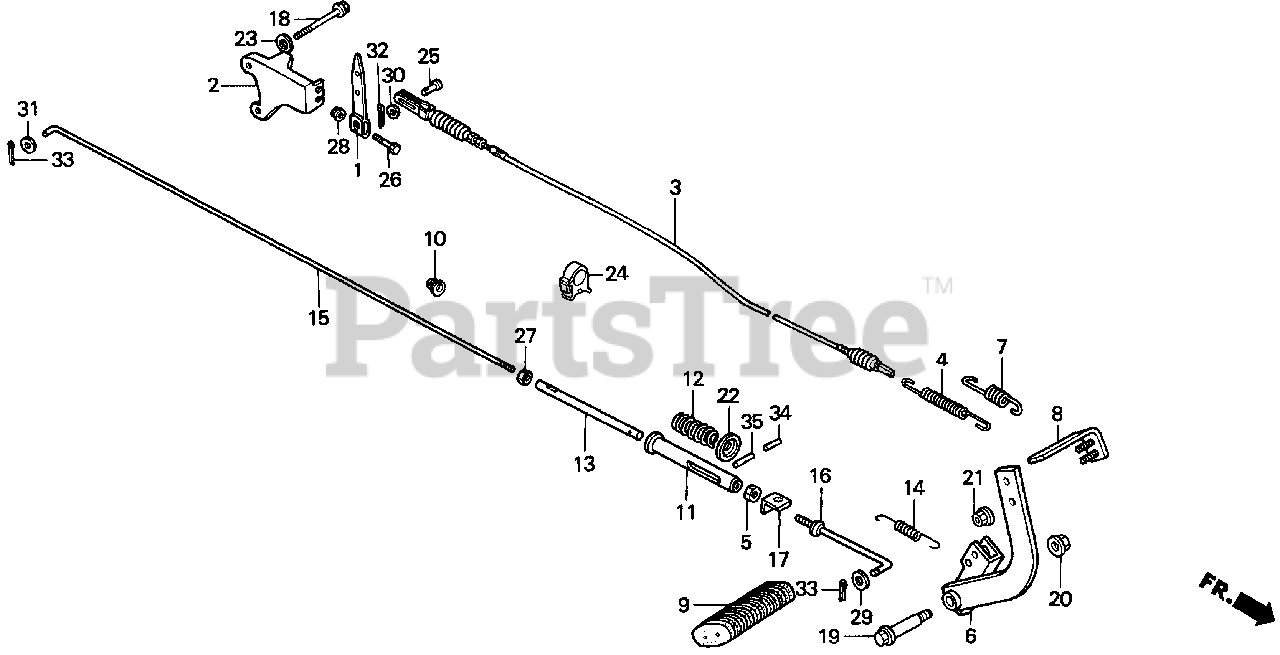

FOOT BRAKE PEDAL Parts Diagram

  • Title

5

Honda 45423-KA4-700

NUT, HEX. (6MM) (LEFT HAND THREAD)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 46510-763-D00

PEDAL, FOOT BRAKE

$69.99

$

Usually ships in 3-6 days

0

7

Honda 46514-763-A00

SPRING, BRAKE PEDAL

$5.99

$

Usually ships in 3-6 days

0

8

Honda 46515-763-D01

BRACKET, BRAKE PEDAL

$35.99

$

Usually ships in 3-6 days

0

9

Honda 46545-751-000

RUBBER, BRAKE PEDAL

$19.99

$

Usually ships in 3-6 days

0

10

Honda 46547-751-000

BUSH, BRAKE ROD

$5.99

$

Usually ships in 3-6 days

0

11

Honda 47241-763-A00

PIPE, BRAKE

$55.99

$

Usually ships in 3-6 days

0

12

Honda 47251-763-D01

SPRING, FOOT BRAKE LOAD SETTING

$14.99

$

Usually ships in 3-6 days

0

13

Honda 47253-763-A00

SHAFT, SPRING SET

$28.99

$

Usually ships in 3-6 days

0

14

Honda 47255-751-000

SPRING, BRAKE DAMPER

$7.49

$

Usually ships in 3-6 days

0

15

Honda 47261-763-D00

ROD A, FOOT BRAKE

$

$

Not available

16

Honda 47265-763-A00

ROD B, FOOT BRAKE

$6.99

$

Usually ships in 3-6 days

0

17

Honda 47269-763-A00

PLATE, DAMPER SPRING SETTING

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90104-751-000

BOLT, P.T.O. CLUTCH LEVER

$10.99

$

In Stock, only 1 left!

0

20

Honda 90118-961-000

NUT, SELF-LOCK (8MM)

$7.49

$

Usually ships in 3-6 days

0

21

Honda 90208-425-870

NUT, FLANGE (8MM) (NOT AVAILABLE)

$

$

Not available

22

Honda 90526-751-700

WASHER, BRAKE SPRING SETTING

$7.99

$

Usually ships in 3-6 days

0

27

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 10

0

29

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

31

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

33

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

34

Honda 94305-30282

PIN, SPRING (3X28)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 94305-50282

PIN, SPRING (5X28)
