H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) ENGINE PULLEY Parts Diagram

Riding Mower, Made in Japan

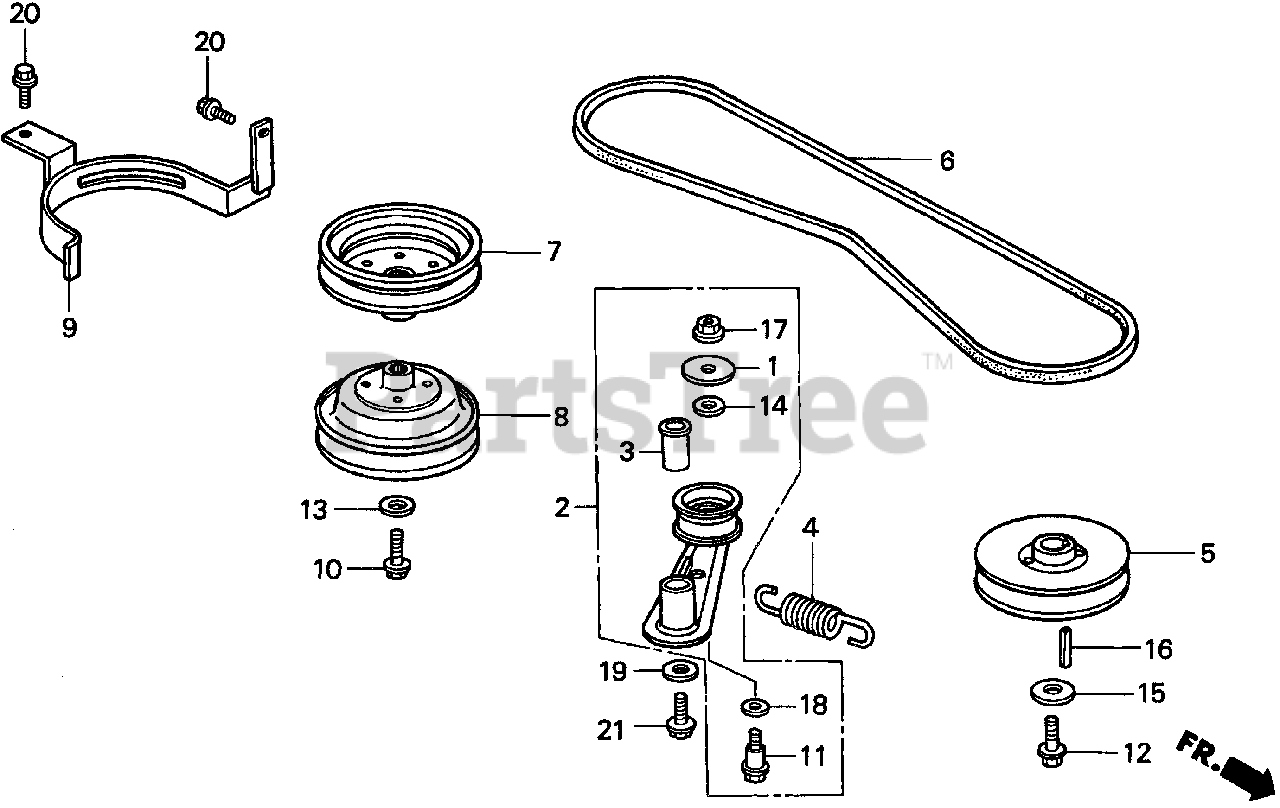

ENGINE PULLEY Parts Diagram

  • Title

1

Honda 22465-751-000

GUARD, TENSION ROLLER

$6.49

$

Usually ships in 3-6 days

0

2

Honda 22510-763-A00

SEE PART DETAILS - PRI; ARM ASSY., TENSIONER

$120.99

$

In Stock, only 2 left!

0

3

Honda 22525-751-300

BUSH (15X19X39.5)

$13.99

$

In Stock, only 3 left!

0

4

Honda 22531-751-000

SPRING, PRIMARY BELT TENSION

$13.99

$

Usually ships in 3-6 days

0

5

Honda 75170-763-A00

SEE PART DETAILS - PRI; PULLEY, ENGINE (120MM)

$82.99

$

Usually ships in 3-6 days

0

6

Honda 76182-751-023

SEE PART DETAILS - PRI; V-BELT, PRIMARY (SB-51)

$73.99

$

In Stock, only 2 left!

0

7

Honda 76225-763-D00

PULLEY, TRANSMISSION (ENGINE)

$135.99

$

Usually ships in 3-6 days

0

8

Honda 76240-763-D00

PULLEY, TRANSMISSION (DECK)

$113.99

$

In Stock, only 1 left!

0

9

Honda 76252-763-D00

STOPPER, BELT

$

$

Not available

10

Honda 90012-752-000

BOLT, FLANGE (8X20)

$4.49

$

In Stock, only 4 left!

0

11

Honda 90104-763-000

BOLT, SPECIAL (6X23)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 90107-751-003

BOLT, FLANGE (7/16"X28)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0) (Honda Code 0347823).

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90450-147-000

WASHER, THRUST (8MM) (Honda Code 0697722).

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90501-751-000

WASHER, PLAIN (12MM)

$14.99

$

Usually ships in 3-6 days

0

16

Honda 90761-751-000

KEY (6.3X6.3X30)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 94101-10800

WASHER, PLAIN (10MM) (Honda Code 0562199).

$2.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

21

Honda 95701-10020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X20) (Honda Code 2619153).

$3.49

$

In Stock, only 2 left!

0
