H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) CYLINDER HEAD Parts Diagram

Riding Mower, Made in Japan

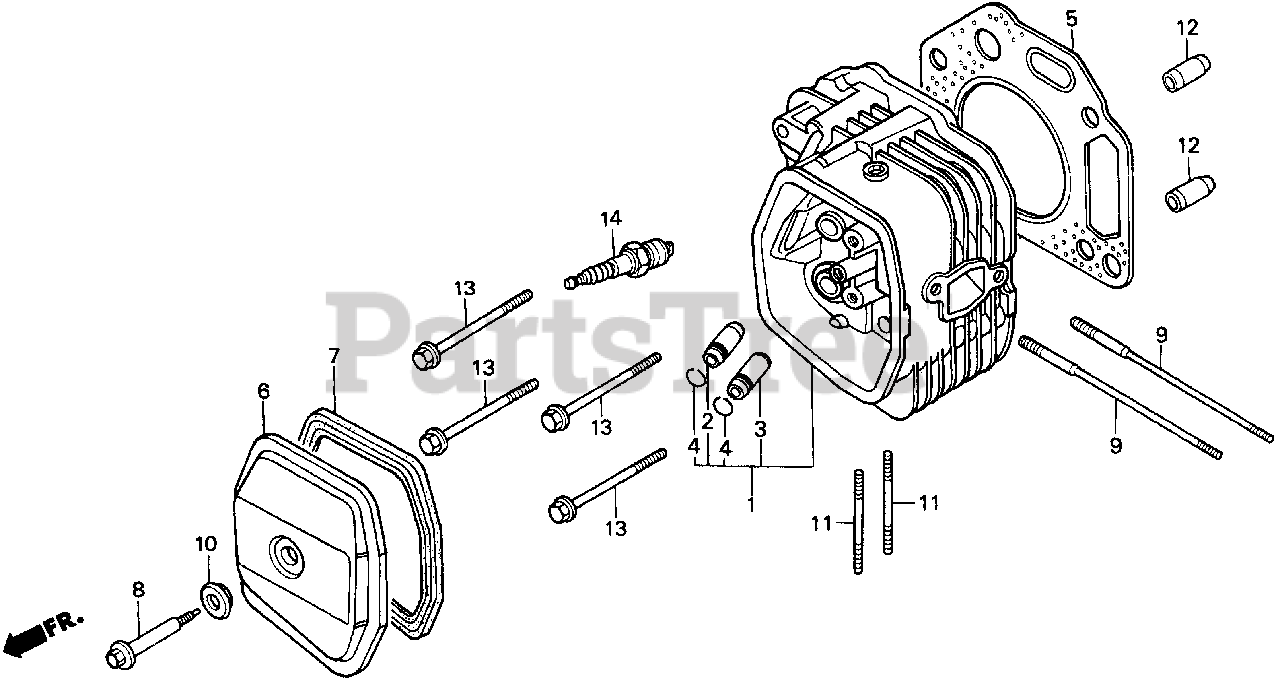

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-Z1E-405

SEE PART DETAILS - PRI; CYLINDER HEAD

$139.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4179164).

Note: (Optional).

$

$

Not available

2

Honda 12204-ZE2-315

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)
(Superseded to 12204-ZE2-306)

Note: (Optional).Use up to Engine SN 2040829.

$

$

Not available

3

Honda 12205-ZE2-305

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 2089563).

Note: (Optional).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE9-600

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3131810).

$26.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE8-000

COVER, HEAD (Honda Code 2089613).

$24.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE8-000

GASKET, CYLINDER HEAD COVER (Honda Code 2089670).

$18.99

$

In Stock, only 2 left!

0

8

Honda 90014-ZE8-000

BOLT, HEAD COVER (Honda Code 2092955).

$6.99

$

Usually ships in 3-6 days

0

9

Honda 90042-ZE8-700

BOLT, STUD (8X138.5)

$9.49

$

Usually ships in 3-6 days

0

10

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$6.99

$

In Stock, Qty 12

0

11

Honda 92900-08022-0B

BOLT, STUD (8X22) (Honda Code 1411610).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

14

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

14

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0
