H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) CUTTER PULLEY Parts Diagram

Riding Mower, Made in Japan

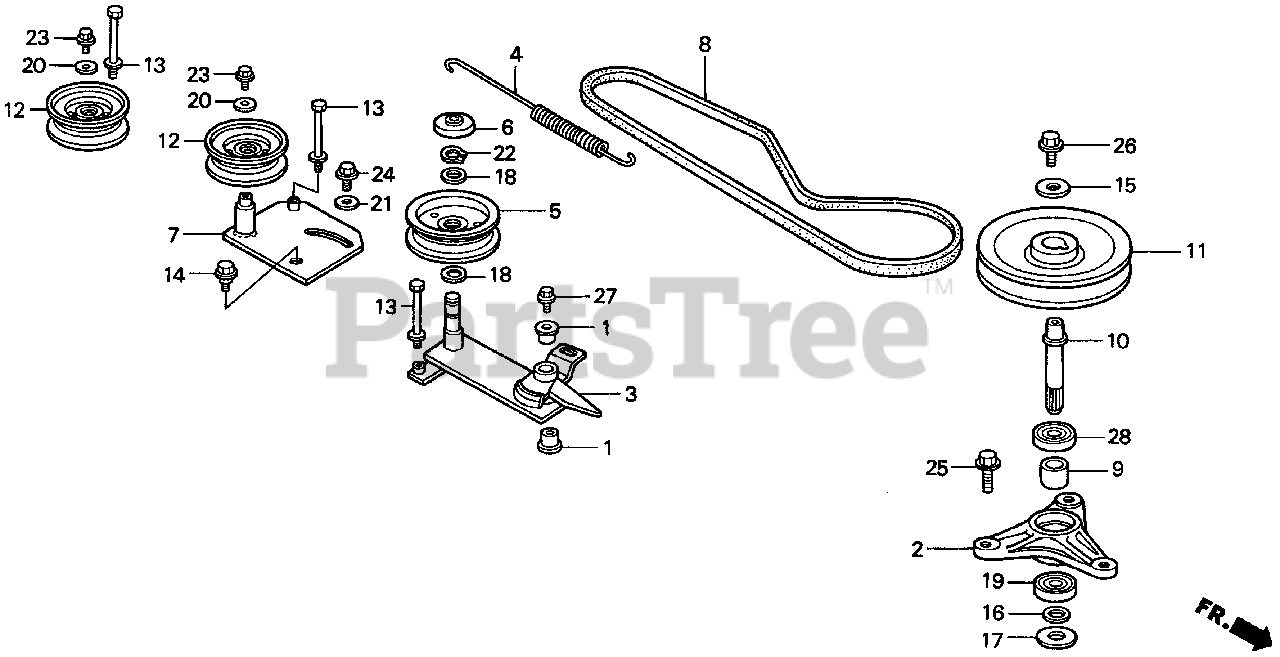

CUTTER PULLEY Parts Diagram

  • Title

1

Honda 24132-750-000

BUSH (15X19X22)

$12.99

$

Usually ships in 3-6 days

0

2

Honda 72711-763-A00

HOUSING, BEARING

$153.99

$

Usually ships in 3-6 days

0

3

Honda 76120-763-A01

ARM, TENSIONER (DECK)

$127.99

$

Usually ships in 3-6 days

0

4

Honda 76122-751-000

SPRING, TENSIONER ARM

$30.99

$

Usually ships in 3-6 days

0

5

Honda 76130-763-A00

ROLLER, TENSIONER (DECK)

$76.99

$

In Stock, only 1 left!

0

6

Honda 76135-751-000

DUST COVER, TENSION PULLEY (NOT AVAILABLE)

$

$

Not available

7

Honda 76180-763-A00

ARM, BELT ADJUSTING

$58.99

$

Usually ships in 3-6 days

0

8

Honda 76181-763-A02

V-BELT, BLADE (SB-71.2)

$88.99

$

In Stock, only 2 left!

0

9

Honda 76213-751-700

COLLAR, BLADE SHAFT

$12.99

$

In Stock, only 2 left!

0

10

Honda 76214-763-A00

SHAFT, BLADE

$89.99

$

In Stock, only 1 left!

0

11

Honda 76221-763-A00

PULLEY, CUTTER DECK (120MM)

$108.99

$

Usually ships in 3-6 days

0

12

Honda 76380-763-A00

SEE PART DETAILS - SUP; PULLEY, IDLER
(Superseded to 76380-763-A02)

Note: Use up to Frame SN 6008912.

$53.99

$

In Stock, only 1 left!

0

12

Honda 76380-763-A01

SEE PART DETAILS - SUP; PULLEY, IDLER
(Superseded to 76380-763-A02)

$53.99

$

In Stock, only 1 left!

0

12

Honda 76380-763-A02

SEE PART DETAILS - PRI; PULLEY, IDLER

$53.99

$

In Stock, only 1 left!

0

13

Honda 90109-751-000

BOLT, BELT STOPPER

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90110-763-A00

BOLT, ADJUSTING ARM

$6.49

$

Usually ships in 3-6 days

0

15

Honda 90405-758-L00

SEE PART DETAILS - PRI; WASHER (10.5X27X4)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 90428-752-830

WASHER, THRUST (20MM)

$4.49

$

In Stock, only 1 left!

0

17

Honda 90429-752-830

WASHER, BLADE HOLDER

$10.99

$

In Stock, only 2 left!

0

18

Honda 90503-751-000

WASHER (17.3X25)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 91055-752-831

BEARING, RADIAL BALL

$23.99

$

In Stock, only 2 left!

0

20

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 16

0

21

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 14

0

22

Honda 94511-17000

CIRCLIP (OUTER) (17MM)

$1.49

$

In Stock, Qty 7

0

23

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

24

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-10028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X28)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 95900-10016-08

BOLT, FLANGE (10X16) (NA USE ALT:95700-10016-08)

$

$

Currently unavailable

27

Honda 96001-06012-07

BOLT, FLANGE (6X12) Use from Frame SN 1001725.

$2.49

$

Usually ships in 3-6 days

0

28

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

$27.99

$

In Stock, only 2 left!

0
