H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) CAMSHAFT Parts Diagram

Riding Mower, Made in Japan

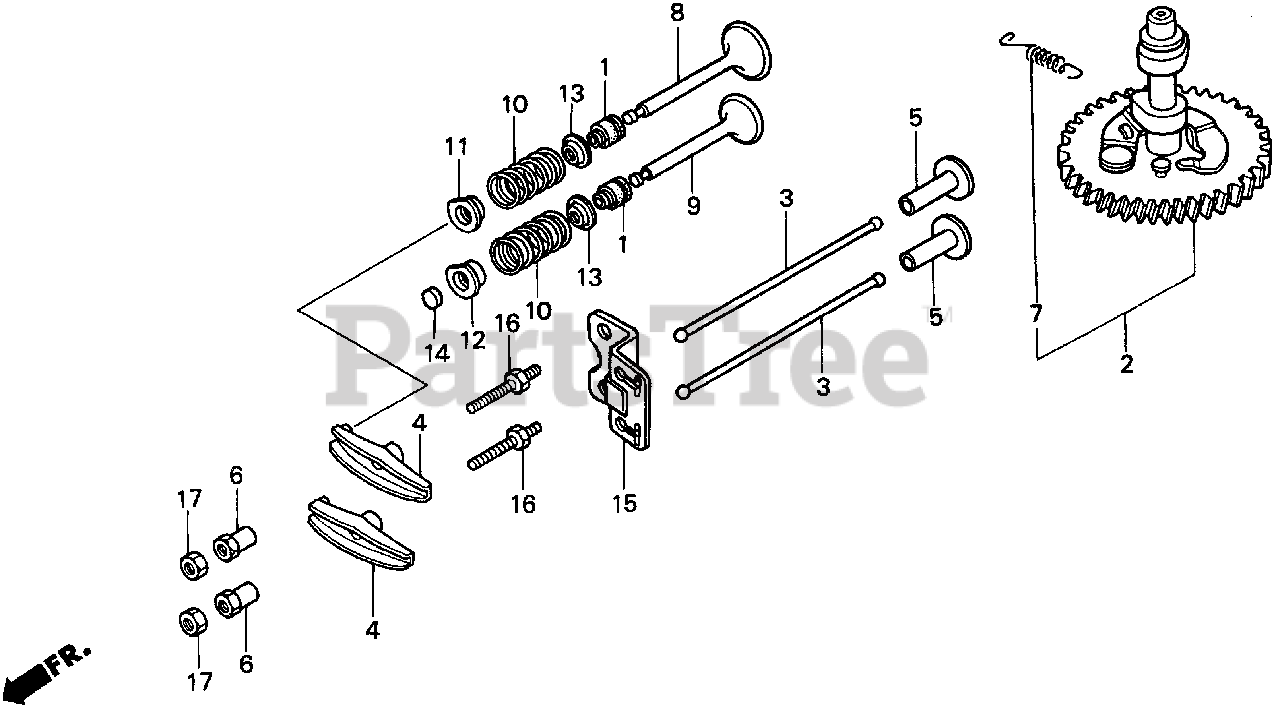

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZE8-003

SEAL, VALVE STEM (Honda Code 2089571).

$8.49

$

In Stock, Qty 6

0

2

Honda 14100-ZE8-600

CAMSHAFT ASSY. (Honda Code 3131893).

Note: Use up to Engine SN 2086152.

$

$

Not available

2

Honda 14100-ZE8-601

SEE PART DETAILS - SUP; CAMSHAFT ASSY. (Honda Code 4608410).

Note: Use from Engine SN 2086153 to 2104511.

$

$

Not available

2

Honda 14100-ZE8-602

CAMSHAFT ASSY.

Note: Use from Engine SN 2104512.

$208.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE3-013

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3371804).

$7.99

$

In Stock, Qty 5

0

4

Honda 14431-ZE2-000

SEE PART DETAILS - SUP; ARM, VALVE ROCKER (Honda Code 2025591).
(Superseded to 14431-ZE2-010)

$9.49

$

In Stock, only 2 left!

0

5

Honda 14441-ZE2-000

SEE PART DETAILS - PRI; LIFTER, VALVE

$16.99

$

In Stock, only 2 left!

0

6

Honda 14451-ZE1-003

SEE PART DETAILS - SUP; PIVOT, ROCKER ARM (Honda Code 1540764).
(Superseded to 14451-Z4M-000)

Note: Use up to Engine SN 2054423.

$5.99

$

In Stock, Qty 5

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM (Honda Code 4300901).
(Superseded to 14451-Z4M-000)

Note: Use from Engine SN 2054424.

$5.99

$

In Stock, Qty 5

0

7

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

8

Honda 14711-ZE3-000

VALVE, IN. (Honda Code 2107779).

$22.99

$

Usually ships in 3-6 days

0

9

Honda 14721-ZE3-000

VALVE, EX. (Honda Code 2107787).

$35.99

$

Usually ships in 3-6 days

0

10

Honda 14751-ZE2-003

SPRING, VALVE (Honda Code 2025633).

$5.49

$

In Stock, only 2 left!

0

11

Honda 14771-ZE2-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING (EXHAUST SIDE)
(Superseded to 14771-Z8S-000)

$2.49

$

In Stock, only 1 left!

0

11

Honda 14771-Z8S-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (EXHAUST SIDE)

$2.49

$

In Stock, only 1 left!

0

12

Honda 14773-Z8S-000

SEE PART DETAILS - PRI; RETAINER, EX. VALVE SPRING

$2.49

$

In Stock, only 2 left!

0

13

Honda 14775-ZE2-010

SEAT, VALVE SPRING (Honda Code 2157485).

$3.99

$

Usually ships in 3-6 days

0

14

Honda 14781-ZE2-000

ROTATOR, VALVE (Honda Code 2025666).

$5.99

$

In Stock, only 1 left!

0

15

Honda 14791-ZE9-000

SEE PART DETAILS - SUP; GUIDE, PUSH ROD (Honda Code 2271286).

Note: Use up to Engine SN 2104726.

$4.99

$

Usually ships in 3-6 days

0

15

Honda 14791-ZE9-010

SEE PART DETAILS - PRI; GUIDE, PUSH ROD (Honda Code 6260277).

Note: Use from Engine SN 2104727.

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.49

$

Usually ships in 3-6 days

0

17

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
