H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) BRAKE Parts Diagram

Riding Mower, Made in Japan

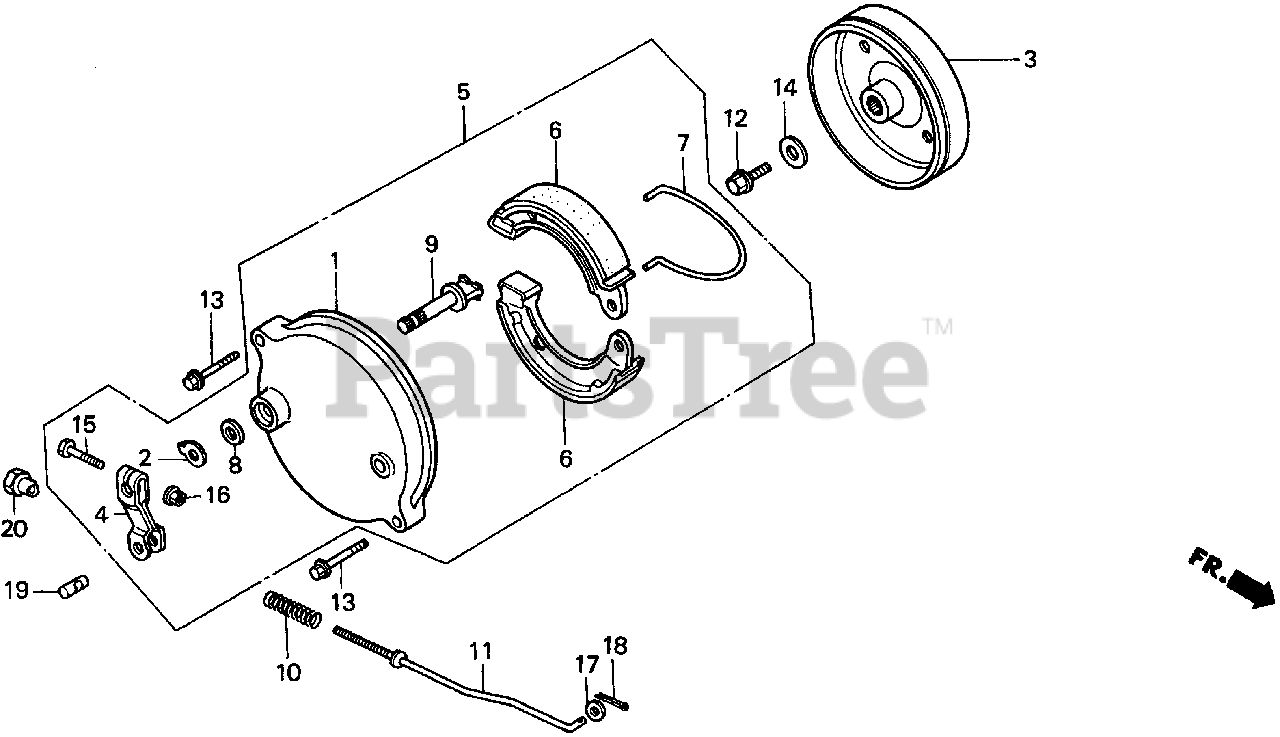

BRAKE Parts Diagram

  • Title
1

Honda 43100-751-000

PANEL, BRAKE

$85.99

$

Usually ships in 3-6 days

0

2

Honda 43145-751-000

INDICATOR, BRAKE

$4.99

$

Usually ships in 3-6 days

0

3

Honda 43210-751-700

DRUM, BRAKE

$56.99

$

In Stock, only 1 left!

0

4

Honda 43410-751-000

ARM, RR. BRAKE

$18.99

$

Usually ships in 3-6 days

0

5

Honda 43100-763-A40

PANEL ASSY., BRAKE

$161.99

$

Usually ships in 3-6 days

0

6

Honda 43120-763-A40

SHOE, BRAKE

Note: Use up to Frame SN 2000999.

$

$

Currently unavailable

6

Honda 43125-GZ9-003

SHOE, BRAKE (ASK)

Note: Use from Frame SN 2001000.

$

$

Currently unavailable

6

Honda 45120-147-672

SHOE, FR. BRAKE (NIPPON) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 45133-044-000

SPRING, BRAKE SHOE

$3.49

$

In Stock, only 1 left!

0

8

Honda 45134-165-890

SEAL, BRAKE CAM

$1.99

$

In Stock, only 2 left!

0

9

Honda 45141-147-040

SEE PART DETAILS - PRI; CAM, FR. BRAKE

$14.99

$

Usually ships in 3-6 days

0

10

Honda 47262-750-000

SPRING A, BRAKE ROD

$2.99

$

Usually ships in 3-6 days

0

11

Honda 47266-763-D00

ROD C, FOOT BRAKE

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90012-752-000

BOLT, FLANGE (8X20)

$3.99

$

In Stock, only 4 left!

0

13

Honda 95801-06028-08

BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0) (Honda Code 0347823).

$11.99

$

Usually ships in 3-6 days

0

15

Honda 92201-05025-0A

BOLT, HEX. (5X25) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

16

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

17

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

18

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

19

Honda 95015-31001

JOINT A, BRAKE ARM

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95015-41000

NUT A, BRAKE ROD ADJUSTING

$1.99

$

Usually ships in 3-6 days

0
