H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) BATTERY Parts Diagram

Riding Mower, Made in Japan

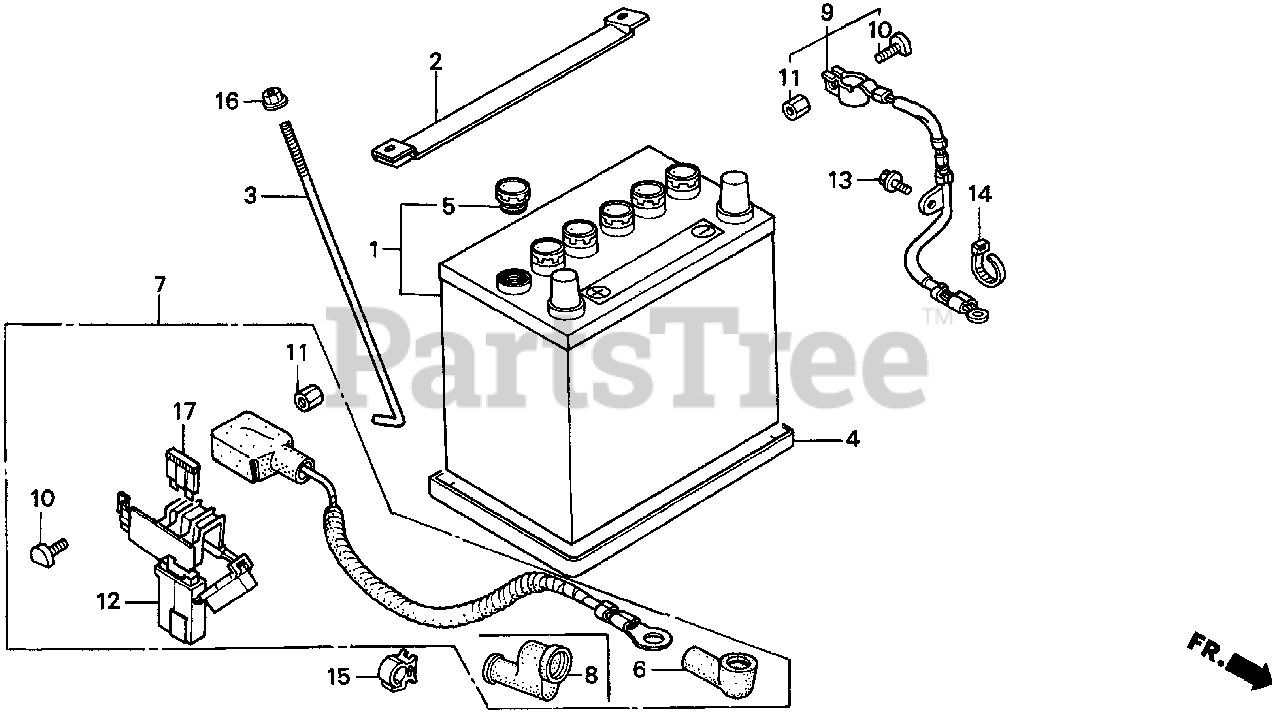

BATTERY Parts Diagram

  • Title

1

Honda 31500-750-013

SEE PART DETAILS - SUP; BATTERY ASSY. (32A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

1

Honda 31500-750-023

SEE PART DETAILS - PRI; BTTRY, MF (34A19RT) (S) (MSDS)

$145.99

$

Usually ships in 3-6 days

0

1

Honda 31500-751-013

SEE PART DETAILS - SUP; BATTERY (26A19RT-S) (YUASA)
(Superseded to 31500-750-023)

Note: Use up to Frame SN 6006347.

$145.99

$

Usually ships in 3-6 days

0

2

Honda 31512-751-010

SEE PART DETAILS - PRI; PLATE, BATTERY SETTING

$23.99

$

In Stock, only 1 left!

0

3

Honda 31513-634-000

BOLT, BATTERY SETTING (220MM)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 31523-ZA0-800

TRAY, BATTERY

$16.99

$

Usually ships in 3-6 days

0

5

Honda 31542-ZA0-007

PLUG, VENT (YUASA)

$6.99

$

Usually ships in 3-6 days

0

7

Honda 32410-763-D00

CABLE ASSY., STARTER (NOT AVAILABLE)

$

$

Not available

8

Honda 32411-763-D00

COVER, TERMINAL

Note: Use up to Frame SN 6001453.

$

$

Currently unavailable

8

Honda 32416-460-000

COVER B, MAGNETIC SWITCH (NOT AVAILABLE)

Note: Use from Frame SN 6001454.

$

$

Not available

9

Honda 32600-763-A00

CABLE ASSY., GROUND

$

$

Not available

10

Honda 32601-SA5-003

SEE PART DETAILS - SUP; BOLT, BATTERY TERMINAL (SUMITOMO)

$12.99

$

Usually ships in 3-6 days

0

10

Honda 32601-SK7-900

SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL

$12.99

$

Usually ships in 3-6 days

0

11

Honda 32602-SA5-003

NUT, BATTERY TERMINAL (SUMITOMO)

$7.99

$

Usually ships in 3-6 days

0

12

Honda 38210-751-003

CASE, MAIN FUSE

$23.99

$

In Stock, only 1 left!

0

13

Honda 90153-SE0-003

BOLT, GROUND (6X12) (SN)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

17

Honda 98200-30500

SEE PART DETAILS - PRI; FUSE, BLADE (5A) (Honda Code 1938737).

$1.99

$

In Stock, Qty 5

0
