H30-35438T - Tecumseh Engine Engine Parts List #1 Parts Diagram

Engine

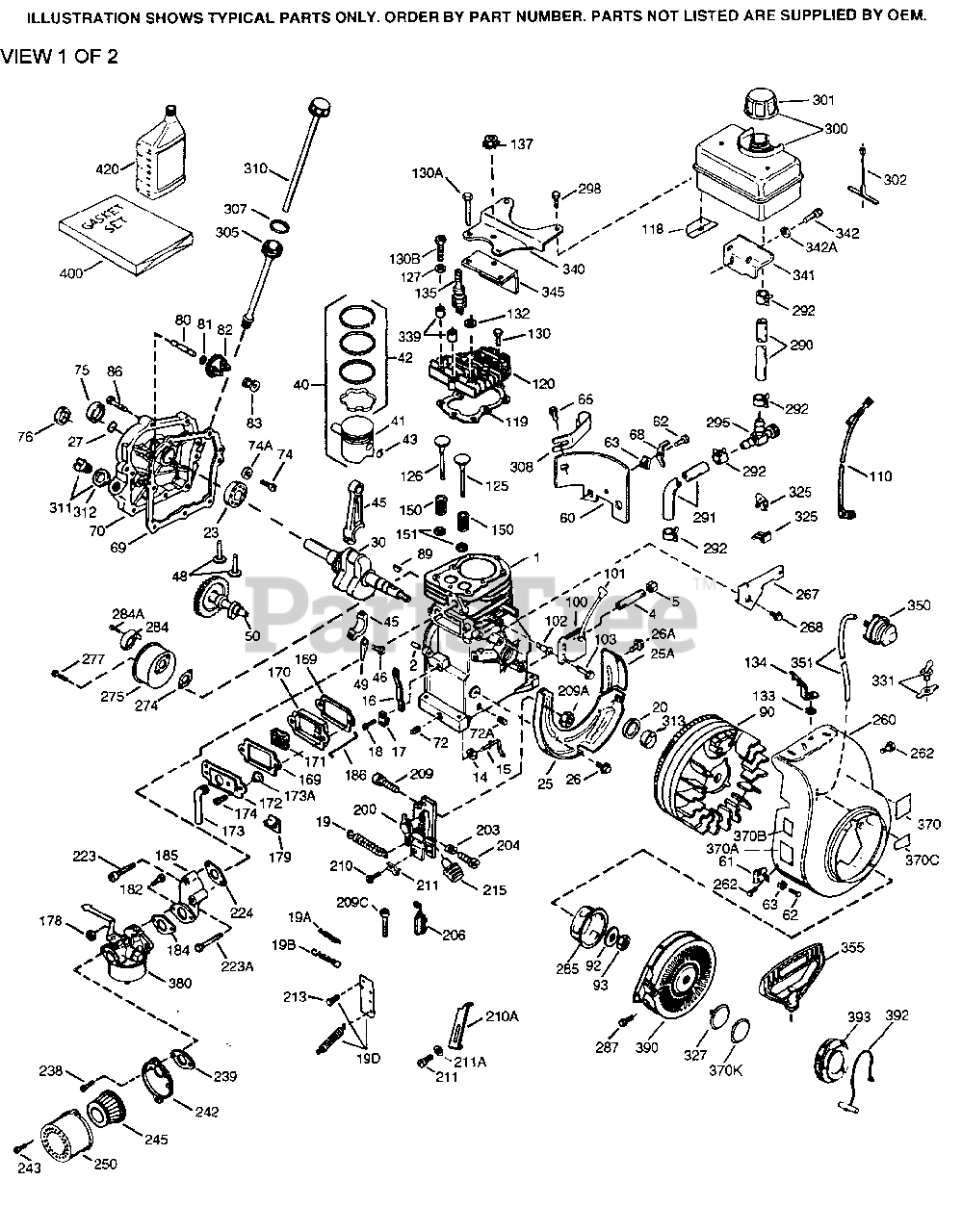

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 35764

"Cylinder (Incl. 2, 20 & 72)
(Superseded to 36562)

$

$

Not available

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 31334

Governor Rod

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 31510

Governor Lever
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

17

Tecumseh 31335

Governor Lever Clamp

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 31426

Extension Spring

$3.99

$

In Stock, Qty 20+

0

20

Tecumseh 32600

Oil Seal

$

$

Not available

23

Tecumseh 28458

Ball Bearing

$

$

Not available

25

Tecumseh 33342

Blower Housing Baffle
(Superseded to 36552)

$9.49

$

Usually ships in 3-12 days

0

25A

Tecumseh 35883

Baffle Extension

$1.99

$

In Stock, Qty 5

0

26

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

27

Tecumseh 28539

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 34719

Crankshaft

$

$

Not available

40

Tecumseh 34514

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

Tecumseh 34515

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

40

Tecumseh 34516

Piston, Pin & Ring Set (.020" OS)

$79.99

$

Usually ships in 3-12 days

0

41

Tecumseh 32538B

Piston & Pin Ass'y. (Std.) (Incl. 43)

$

$

Not available

41

Tecumseh 32548B

Piston & Pin Ass'y. (.010" OS) Incl. 43

$

$

Not available

41

Tecumseh 32549B

Piston & Pin Ass'y. (.020" OS) Incl. 43

$50.99

$

Usually ships in 3-12 days

0

42

Tecumseh 28986

Ring Set (Std.)

$

$

Not available

42

Tecumseh 28987

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 28988

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 30963B

Connecting Rod Ass'y. (Incl. 46 & 49)

$29.99

$

Usually ships in 3-12 days

0

46

Tecumseh 32610A

Connecting Rod Bolt

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

49

Tecumseh 28594

Oil Dipper

$8.99

$

In Stock, only 2 left!

0

50

Tecumseh 33149A

Camshaft (BCR)

$

$

Not available

60

Tecumseh 29745

Blower Housing Extension

$3.99

$

Usually ships in 3-12 days

0

65

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

65

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

65

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

69

Tecumseh 27677A

* Cylinder Cover Gasket

$7.49

$

In Stock, Qty 7

0

70

Tecumseh 30756C

Cylinder Cover Incl. 75 thru 83, 311 & 312

$108.99

$

Usually ships in 3-12 days

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

74A

Tecumseh 28537

Washer

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 28540

Oil Seal

$7.49

$

In Stock, only 1 left!

0

80

Tecumseh 30574A

Governor Shaft

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear Ass'y. (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 610961

Flywheel Key (also available in Packa ged Part #740007B)

$1.49

$

In Stock, Qty 20+

0

90

Tecumseh 611080

Flywheel
(Superseded to 611080A)

$122.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443A

Solid State Ignition
(Superseded to 34443D)

$44.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 650872

Solid State Mounting Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35182

Ground Wire

$1.99

$

In Stock, only 4 left!

0

119

Tecumseh 29953C

* Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

120

Tecumseh 30579A

Cylinder Head (Incl. 130)
(Superseded to 36438)

$

$

Not available

125

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

125

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

126

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

130

Tecumseh 650694A

Screw, 5/16-18 x 2"

$3.49

$

In Stock, Qty 20+

0

131

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, only 3 left!

0

135

Tecumseh 33636

Resistor Spark Plug - RJ17LM

$5.49

$

In Stock, Qty 12

0

150

Tecumseh 31672

Valve Spring

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Valve Spring Cap

$1.99

$

In Stock, only 3 left!

0

169

Tecumseh 27234A

* Valve Cover Gasket

$5.99

$

In Stock, only 1 left!

0

170

Tecumseh 27666

Breather Body

$14.99

$

In Stock, only 4 left!

0

171

Tecumseh 31410

Breather Element

$1.99

$

In Stock, Qty 20+

0

172

Tecumseh 34146

Valve Cover

$3.99

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Breather Tube

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 1 left!

0

182

Tecumseh 6201

Screw, 1/4-28 x 7/8"

$

$

Not available

184

Tecumseh 26756

* Carburetor To Intake Pipe Gasket

$2.99

$

In Stock, Qty 8

0

185

Tecumseh 28416A

Intake Pipe

$

$

Not available

186

Tecumseh 31858

Governor Link
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

200

Tecumseh 33858A

Control Bracket (Incl.19,203,204,206)
(Superseded to 36677)

$47.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

215

Tecumseh 32410

Control Knob

$5.49

$

In Stock, only 4 left!

0

223A

Tecumseh 650840

Screw, 1/4-20 x 1-7/32"

$1.99

$

Usually ships in 3-12 days

0

223

Tecumseh 650664

Screw, 1/4-20 x 1-19/32"

$1.99

$

In Stock, Qty 9

0

224

Tecumseh 26754A

* Intake Pipe Gasket

$1.99

$

In Stock, Qty 8

0

238

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

239

Tecumseh 27272A

* Air Cleaner Gasket

$4.49

$

In Stock, Qty 20+

0

242

Tecumseh 31691

Air Cleaner Base

$22.99

$

In Stock, only 1 left!

0

243

Tecumseh 650152

Screw, 8-32 x 3/8"

$2.49

$

In Stock, only 3 left!

0

245

Tecumseh 31700

Air Filter

$12.99

$

In Stock, only 1 left!

0

250

Tecumseh 31715

Air Cleaner Cover

$21.99

$

In Stock, Qty 7

0

260

Tecumseh 33663C

Blower Housing
(Superseded to 33663E)

$

$

Not available

262

Tecumseh 29212

Screw, 1/4-28 x 7/16"
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

267

Tecumseh 34212

Hold Down Bracket

$1.99

$

In Stock, Qty 5

0

275

Tecumseh 35603

Muffler (Incl. 277)
(Superseded to 36473A)

$14.99

$

In Stock, only 2 left!

0

277

Tecumseh 650795

Screw, 1/4-20 x 2-1/4"

$1.99

$

In Stock, only 2 left!

0

287

Tecumseh 650926

Screw, 8-32 x 21/64"

$1.49

$

In Stock, only 3 left!

0

290

Tecumseh 30705

Fuel Line

$16.99

$

In Stock, only 2 left!

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

298

Tecumseh 650665

Screw, 1/4-15 x 7/8"

$1.99

$

In Stock, only 3 left!

0

300

Tecumseh 35584

Fuel Tank (Incl. 292 & 301) (2 Quart)

$45.99

$

In Stock, only 4 left!

0

301

Tecumseh 35355

Fuel Cap (Red)
(Superseded to 37845)

$8.99

$

In Stock, Qty 10

0

311

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 7

0

312

Tecumseh 29673

* Oil Fill Plug Gasket

$1.99

$

In Stock, only 3 left!

0

313

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

340

Tecumseh 36247

Fuel Tank Bracket

$11.99

$

Usually ships in 3-12 days

0

342

Tecumseh 650751

Screw, 1/4-20 x 7/16"

$1.99

$

In Stock, Qty 5

0

345

Tecumseh 33344

Heat Baffle

$5.49

$

In Stock, only 1 left!

0

370

Tecumseh 34686

Name Decal
(Superseded to 34686A)

$

$

Not available

370

Tecumseh 34346

Lubrication Decal
(Superseded to 36261)

$

$

Not available

370

Tecumseh 35344

Throttle Decal
(Superseded to 35703)

$2.49

$

Usually ships in 3-12 days

0

380

Tecumseh 631921

Carburetor (Incl. 184)

$124.99

$

In Stock, only 1 left!

0

392

Tecumseh 590343

Starter Rope

$5.49

$

Usually ships in 3-12 days

0

393

Tecumseh 34788

Starter Pulley
(Superseded to 34788A)

$37.99

$

Usually ships in 3-12 days

0

400

Tecumseh 33233A

* Gasket Set (Incl. items marked PK in notes) Incl. part #'s 26754A (1), 267 56 (1), 27234A (2), 27272A (1), 27677 A (1), 29673 (2), 29953C (1), 30081A (1), 31340A (1), 31619A (1), 31688A ( 2), 32649A (1), 33170A (1)

$16.99

$

In Stock, only 1 left!

0

420

Tecumseh 730225

SAE 30 4-Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 2 left!

0
