H2450 (8750-2) - Generac 2,250 Watt Portable Generator Wheel Kit No. 65128 Parts Diagram

2,250 Watt Portable Generator

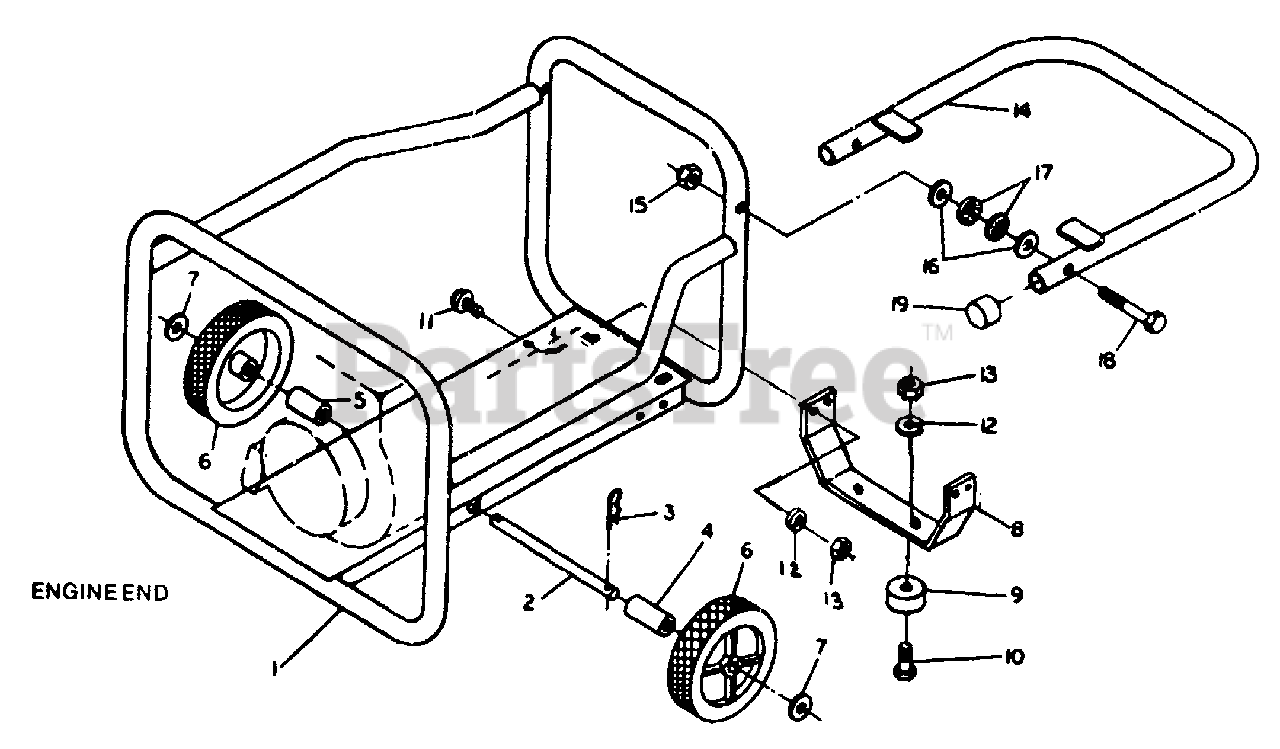

Wheel Kit No. 65128 Parts Diagram

  • Title

1

Briggs & Stratton 65113

CRADLE ASSEMBLY - 2100 Watt Units

$

$

Currently unavailable

1

Briggs & Stratton 65115

CRADLE ASSEMBLY - 3500 Watt Units

$

$

Currently unavailable

2

Briggs & Stratton 60564A

AXLE, Wheel - 14.12" Long

$

$

Currently unavailable

2

Briggs & Stratton 60564B

AXLE, Wheel - 16.50" Long

$

$

Currently unavailable

3

Briggs & Stratton 22268

PIN, Cotter - 3/32"
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 39712A

SPACER, Wheel - 0.50" Long

$

$

Currently unavailable

4

Briggs & Stratton 39712D

SPACER, Wheel - 3" Long

$

$

Currently unavailable

5

Briggs & Stratton 39712C

SPACER, Wheel - 2" Long

$

$

Currently unavailable

5

Briggs & Stratton 39712B

SPACER, Wheel - 1" Long

$

$

Currently unavailable

6

Briggs & Stratton 39714

WHEEL (Plastic) - 7" Diameter

$

$

Not available

7

Briggs & Stratton 22304

WASHER, Flat - 1/2" Steel
(Superseded to 22304GS)

$3.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 85114

LEG, Cradle Support

$

$

Currently unavailable

9

Briggs & Stratton 63015

MOUNT, Vibration (Rubber)

$

$

Currently unavailable

10

Briggs & Stratton 22287

CAPSCREW, Hex Head - 1/4"-20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22507

CAPSCREW, Hex Head - 1/4"-20 x 1/2"

$

$

Not available

12

Briggs & Stratton 22097

WASHER, Lock - 1/4" (M6)
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

14

Briggs & Stratton 65138

HANDLE, Cradle (Swing-up)

$

$

Currently unavailable

15

Briggs & Stratton 27529

NUT, Lock

Note: Note:install Spring Washers (Item 17) in diretion shown Tighten nylon Lock Nuts (item 15) until desired handle tension is obtained. Used on Cradle Assemblies for 3500 Watt Generators only

$

$

Not available

16

22473

WASHER, Flat - 1/4"(M6)

$

$

Not available

17

Briggs & Stratton 51219

WASHER, Spring - 1/4" (M6)
(Superseded to 7073528YP)

Note: Note:install Spring Washers (Item 17) in diretion shown Tighten nylon Lock Nuts (item 15) until desired handle tension is obtained. Used on Cradle Assemblies for 3500 Watt Generators only

$38.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 25965

CAPSCREW, Hex Head - 1/4"-20 x 2-1/4"

$

$

Currently unavailable

19

Briggs & Stratton 27794

CAP, End (Plastic)

$

$

Currently unavailable
