H242F (966412801) - Dixon Blower and Bagger for Zero-Turn Mowers (2009-11) BAGGER Parts Diagram

Blower and Bagger for Zero-Turn Mowers

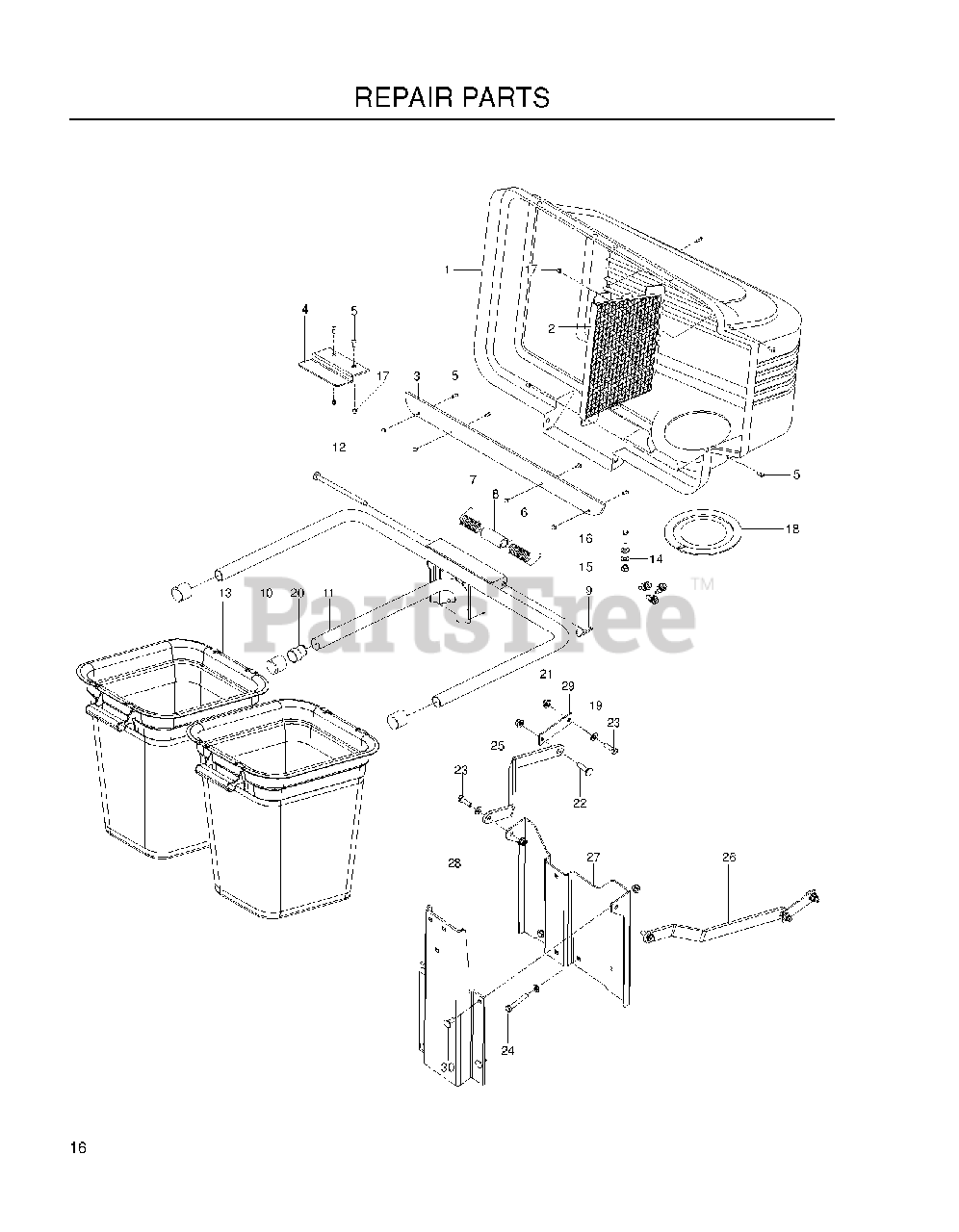

BAGGER Parts Diagram

  • Title

1

Dixon 539111139

HOOD ASM

$

$

Not available

2

Dixon 532127533

COVER SCREEN

$18.99

$

Usually ships in 3-10 days

0

3

Dixon 532155042

STRIP.REINFORCE.BAGGER.2BIN.BL

$18.99

$

In Stock, only 1 left!

0

4

Dixon 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0

5

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

6

Dixon 532132796

SPRING COVER LH

$6.99

$

In Stock, only 1 left!

0

7

Dixon 532132983

SPRING COVER RH

$6.99

$

In Stock, only 1 left!

0

8

Dixon 532133235

SPACER.COVER.BAGGER

$7.49

$

In Stock, only 1 left!

0

9

Dixon 539108096

RETAINER SPRING

$3.99

$

In Stock, only 2 left!

0

10

Dixon 539108097

TUBING PLUG
(Superseded to 532174083)

$7.49

$

In Stock, only 3 left!

0

11

Dixon 532179746

FRAME.ASM.BAGGER.2BIN.QC42B

$121.99

$

In Stock, only 1 left!

0

12

Dixon 532192786

BAGGER.HINGE.PIN

$17.99

$

Usually ships in 3-10 days

0

13

Dixon 532400226

CONTAINER BAG, SOFT

$87.99

$

In Stock, only 2 left!

0

14

Dixon 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

15

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

16

Dixon 539106312

SCREW 10-24 X 3/4

$9.99

$

Usually ships in 3-10 days

0

17

Dixon 539108086

NUT 10-24 ACORN ZD

$4.99

$

In Stock, Qty 20+

0

18

Dixon 532127534

GASKET.COVER.BAGGER

$13.99

$

In Stock, only 2 left!

0

19

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

20

Dixon 522801301

SPACER PLUG, BAGGER

$7.49

$

Usually ships in 3-10 days

0

21

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

23

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

24

Dixon 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 522854402

STRAP, SUPPORT, RT BLK

$157.99

$

Usually ships in 3-10 days

0

26

Dixon 522854502

STRAP, SUPPORT, LT BLK

$250.99

$

Usually ships in 3-10 days

0

27

Dixon 522854602

MOUNT, 2 BIN COLLECT, BLK

$

$

Not available

28

Dixon 522854702

BRACKET, COLLECTION BLK

$121.99

$

Usually ships in 3-10 days

0

29

Dixon 523112802

REINFORCEMENT PLATE BLK

$47.99

$

Usually ships in 3-10 days

0

30

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
