H213914 - Troy-Bilt Dethatcher Attachment DETHATCHER ATTACHMENT Parts Diagram

Dethatcher Attachment

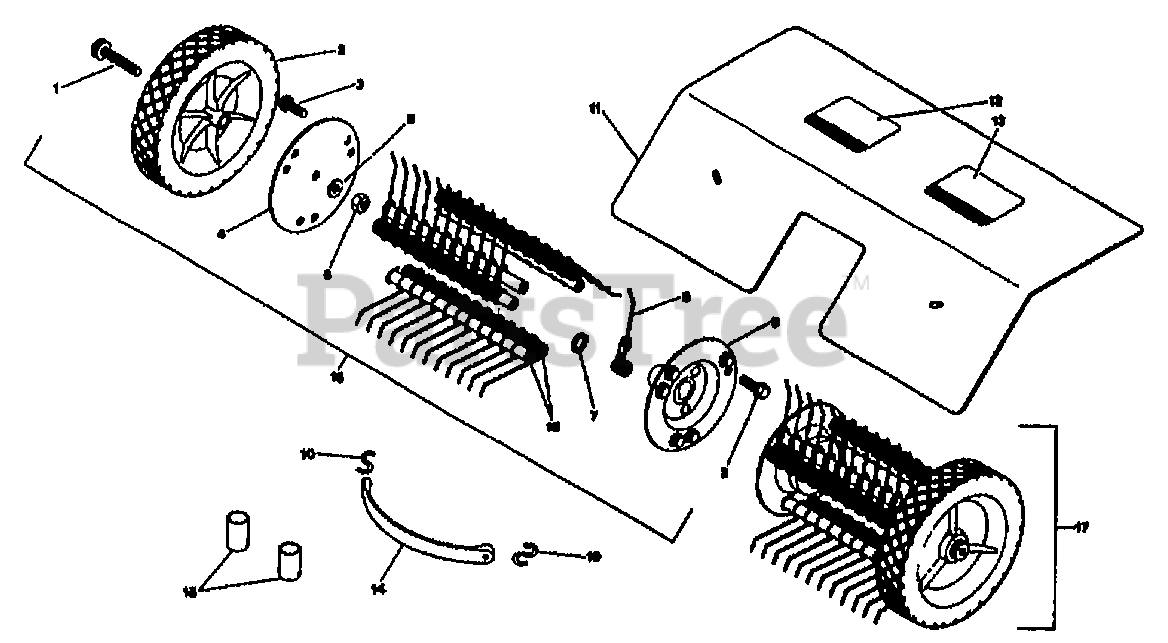

DETHATCHER ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt H213909

BOLT-SC HD 1/2X1 1/2

$

$

Currently unavailable

2

Troy-Bilt H213911

ASSM-WHEEL & TIRE

$

$

Currently unavailable

3

Troy-Bilt H213910

SCR-WHIZ 5/16-18X3/4 LK

$

$

Currently unavailable

4

Troy-Bilt H213907

END CAP-OUTER

$

$

Currently unavailable

5

Troy-Bilt H200702

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

6

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

7

Troy-Bilt H200830

WASHER-FL 1/2 ID-7/8 OD

$

$

Currently unavailable

8

Troy-Bilt H213174

KIT-SPRING TINE (12 SPRING)

$

$

Currently unavailable

8

Troy-Bilt H213175

KIT-SPRING TINE (36 SPRING)

$

$

Currently unavailable

9

Troy-Bilt H213908

END CAP-INNER

$

$

Currently unavailable

10

Troy-Bilt H213916

S-HOOK (DEBRIS SHIELD)

$

$

Currently unavailable

11

Troy-Bilt 1901313

SHIELD-W/DECAL DETHATCHER

$

$

Currently unavailable

12

MTD 1983094

DECAL-CAUTION

$

$

Not available

13

MTD 1983095

DECAL-WARNING

$

$

Not available

14

Troy-Bilt H205807

STRAP-DEBRIS SHIELD

$

$

Currently unavailable

15

Troy-Bilt H213904

BAR-SPRING TINE RETAIN

$

$

Currently unavailable

16

Troy-Bilt H213912

ASSM-DETHATCHER RT

$

$

Currently unavailable

17

Troy-Bilt H213913

ASSM-DETHATCHER LT

$

$

Currently unavailable

18

Troy-Bilt H213630

SPACER-TINE 1.0X.8X1.31LG

$

$

Currently unavailable
