H2113 HMA (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6200001 - MZBF-9999999) TRANSMISSION GEAR Parts Diagram

Harmony Lawn Tractor, Made in USA

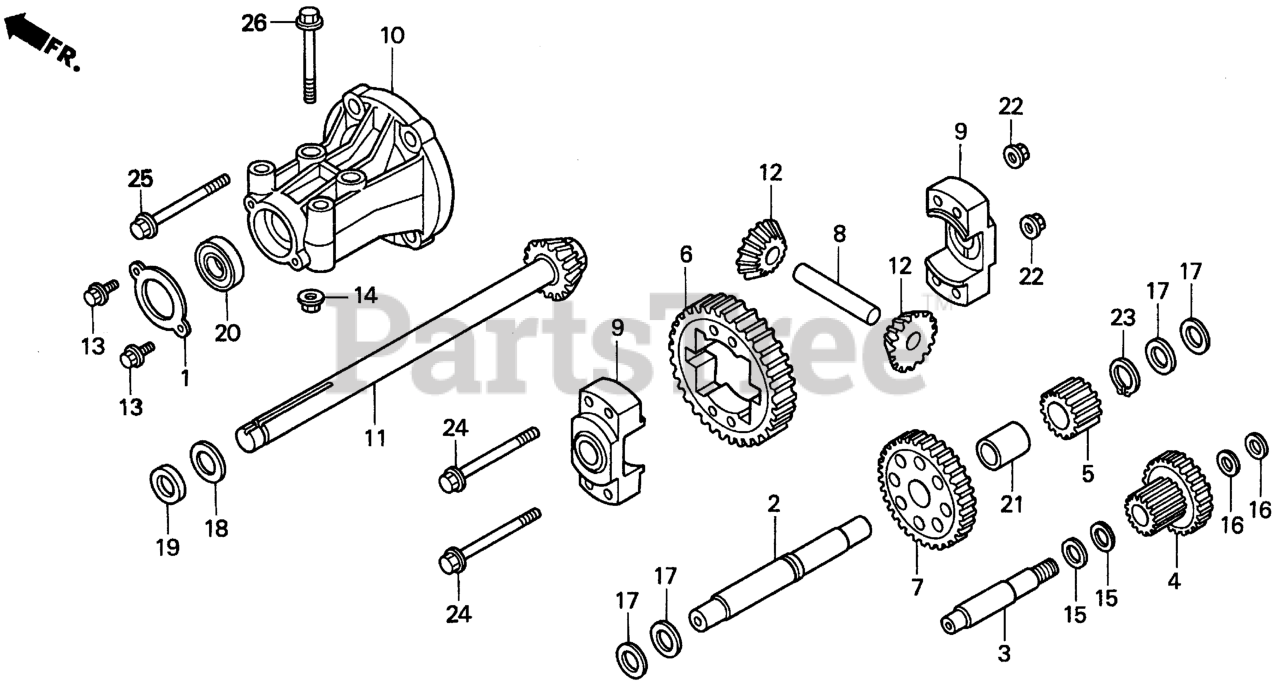

TRANSMISSION GEAR Parts Diagram

  • Title
1

Honda 21521-VE3-000

PLATE, BEARING HOLDER

$6.49

$

Usually ships in 3-6 days

0

2

Honda 23221-VE3-000

COUNTERSHAFT

$137.99

$

Usually ships in 3-6 days

0

3

Honda 23246-VE3-000

SHAFT, IDLER

$89.99

$

Usually ships in 3-6 days

0

4

Honda 23408-VE3-000

GEAR, IDLE

$43.99

$

Usually ships in 3-6 days

0

5

Honda 23414-VE3-000

GEAR, FINAL DRIVE

$63.99

$

Usually ships in 3-6 days

0

6

Honda 23442-VE3-000

GEAR, FINAL DRIVEN

$98.99

$

Usually ships in 3-6 days

0

7

Honda 23457-VE3-000

GEAR, COUNTERSHAFT DRIVEN

$53.99

$

Usually ships in 3-6 days

0

8

Honda 41121-VE3-000

SHAFT, PINION

$20.99

$

Usually ships in 3-6 days

0

9

Honda 41244-VE3-000

SUPPORT, FINAL DRIVEN GEAR

$40.99

$

Usually ships in 3-6 days

0

10

Honda 42111-VE3-000

HOUSING, R. RR. AXLE

$28.99

$

Usually ships in 3-6 days

0

11

Honda 42310-VE3-000

SHAFT, AXLE

$

$

Not available

12

Honda 42661-VE3-000

GEAR, PINION

$21.99

$

Usually ships in 3-6 days

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

14

Honda 90361-SM4-003

NUT, FLANGE (8MM)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90412-187-000

WASHER, THRUST (15MM)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90451-GF6-000

WASHER, THRUST (12MM)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90452-701-000

WASHER, THRUST (18MM)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90454-751-000

WASHER, THRUST (20MM)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90465-KN6-960

WASHER, THRUST (20MM)

$8.49

$

Usually ships in 3-6 days

0

20

Honda 91054-VE3-003

BEARING, RADIAL BALL (1630)

$41.99

$

Usually ships in 3-6 days

0

21

Honda 91552-VE3-000

BUSH (13X16.2X25)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 19

0

23

Honda 94510-22000

CIRCLIP (OUTER) (22MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 95701-08085-08

BOLT, FLANGE (8X85) (Honda Code 3391653).

$3.99

$

Usually ships in 3-6 days

0

25

Honda 95701-10025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X25) (Honda Code 2514776).

$2.99

$

Usually ships in 3-6 days

0

26

Honda 95801-08070-08

BOLT, FLANGE (8X70)

$3.99

$

Usually ships in 3-6 days

0
