H2113 HMA (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6200001 - MZBF-9999999) OIL TANK Parts Diagram
Harmony Lawn Tractor, Made in USA

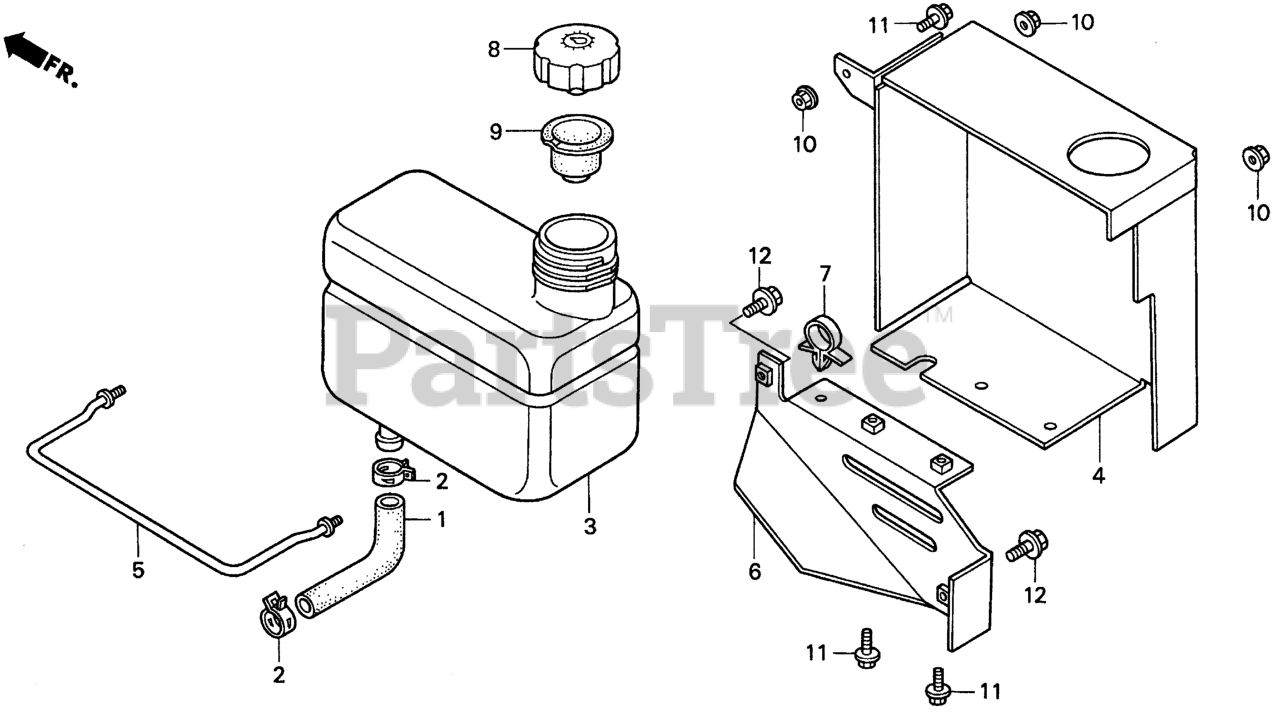

OIL TANK Parts Diagram
Honda 15422-771-700
TUBE, OIL
$6.49
$
Usually ships in 3-6 days
Honda 19509-GE2-003
CLAMP, TUBE (D19)
$4.99
$
Usually ships in 3-6 days
Honda 56851-771-700
TANK, OIL
$33.99
$
Usually ships in 3-6 days
Honda 56855-771-700
COVER, OIL TANK
$
$
Not available
Honda 56857-771-700
ROD, OIL TANK
$75.99
$
Usually ships in 3-6 days
Honda 56858-771-700
BRACKET, OIL TANK COVER
$17.99
$
Usually ships in 3-6 days
Honda 56859-771-700
HOLDER, TUBE
$
$
Not available
Honda 56862-VD6-000
FRAME, OIL CAP
$16.99
$
Usually ships in 3-6 days
Honda 56864-VD6-000
GASKET, OIL CAP
$14.99
$
Usually ships in 3-6 days
Honda 94050-06080
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).
$0.99
$
In Stock, only 3 left!
Honda 95701-06012-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.
$2.49
$
In Stock, Qty 9
Honda 95701-08014-08
SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).
$2.49
$
Usually ships in 3-6 days
