H2113 HDA (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6200001 - MZBF-9999999) TRANSMISSION SUB ASSY. Parts Diagram

Harmony Lawn Tractor, Made in USA

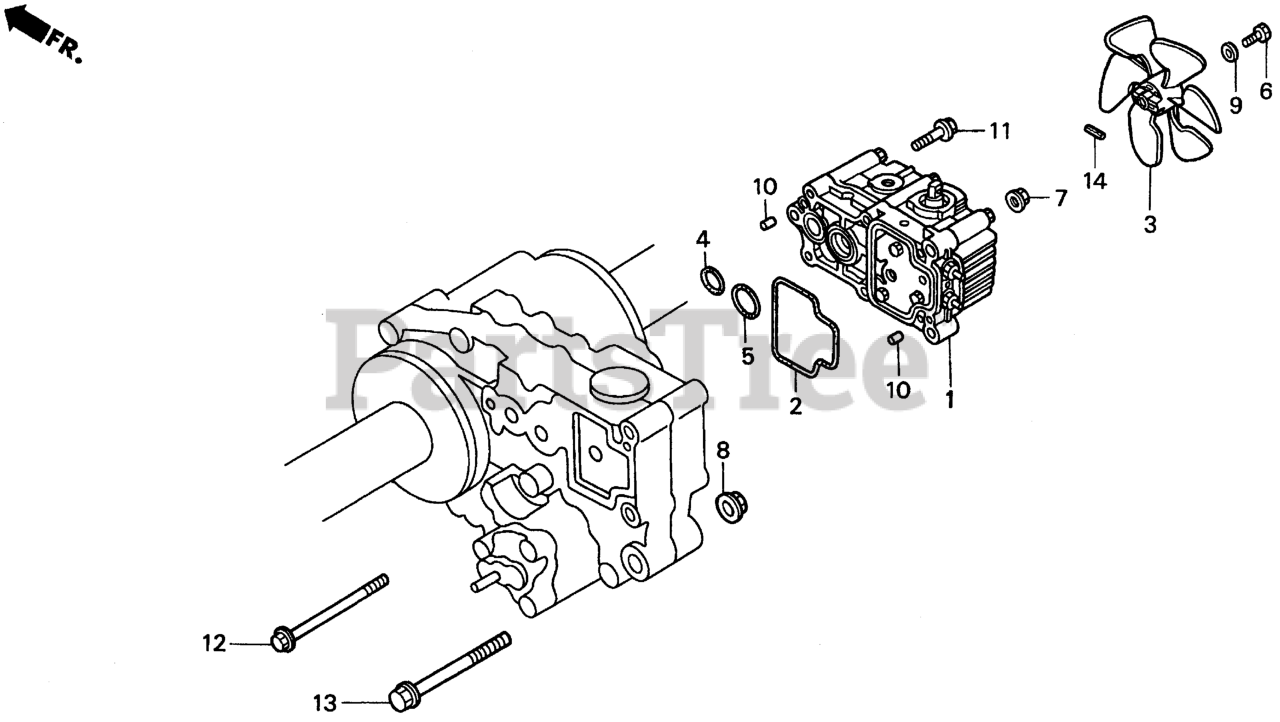

TRANSMISSION SUB ASSY. Parts Diagram

  • Title

1

Honda 20006-VE3-010

TRANSMISSION SUB-ASSY. (H.S.T.)

$

$

Not available

2

Honda 25516-VE3-003

O-RING, CHANGE PUMP

$21.99

$

Usually ships in 3-6 days

0

3

Honda 40491-VE3-000

FAN, TRANSMISSION COOLING

$18.99

$

In Stock, only 1 left!

0

4

Honda 91351-KE1-000

O-RING (21.8X2.4)

$2.99

$

Usually ships in 3-6 days

0

5

Honda 91353-VE3-003

O-RING (28.5X2.0)

$0.99

$

Usually ships in 3-6 days

0

6

Honda 92101-05010-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X10)

$1.49

$

Usually ships in 3-6 days

0

7

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

8

Honda 94050-12080

NUT, FLANGE (12MM)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 94103-05800

WASHER, PLAIN (5MM) (Honda Code 0795971).

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94301-06100

SEE PART DETAILS - PRI; PIN A, DOWEL (6X10) (Honda Code 0294256).

$2.99

$

Usually ships in 3-6 days

0

11

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2563260).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 95701-08110-08

BOLT, FLANGE (8X110)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 95701-12080-08

BOLT, FLANGE (12X80)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 96220-30198

ROLLER (3X19.8)

$1.99

$

Usually ships in 3-6 days

0
