H2113 HDA (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6200001 - MZBF-9999999) HEADLIGHT (1) Parts Diagram

Harmony Lawn Tractor, Made in USA

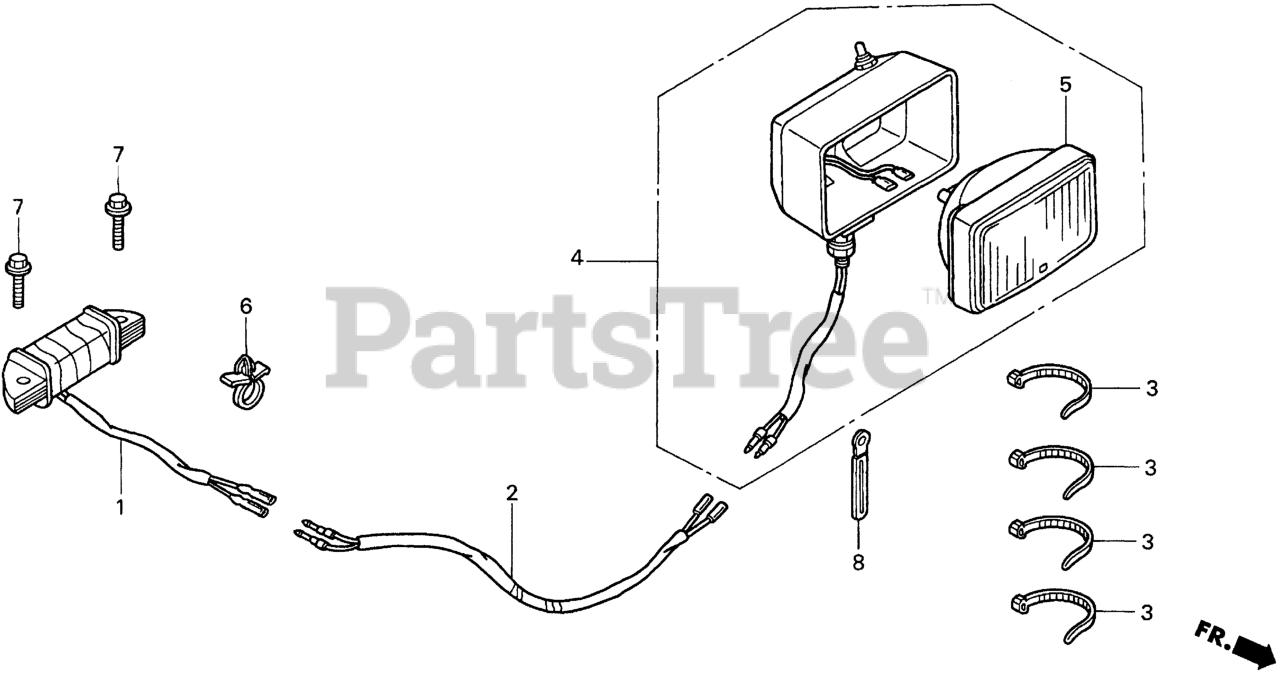

HEADLIGHT (1) Parts Diagram

  • Title

1

Honda 31510-771-802

COIL ASSY., LAMP

Note: (Optional)

$

$

Not available

2

Honda 32171-771-801

SUB-HARNESS, HEADLIGHT

Note: (Optional)

$44.99

$

Usually ships in 3-6 days

0

3

Honda 32901-VB5-800

TIE, CABLE

Note: (Optional)

$3.49

$

In Stock, only 2 left!

0

4

Honda 33100-771-801

HEADLIGHT ASSY.

Note: (Optional)

$

$

Currently unavailable

5

Honda 33110-771-801

SEALED BEAM UNIT

Note: (Optional)

$77.99

$

Usually ships in 3-6 days

0

6

Honda 50310-HE0-003

CLIP A, WIRE

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

Note: (Optional)

$3.49

$

In Stock, only 1 left!

0

8

Honda 91405-MG1-000

CLIP, WIRE HARNESS

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0
