H2113 GDA (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6200001 - MZBF-9999999) CHANGE LEVER (1) Parts Diagram

Harmony Lawn Tractor, Made in USA

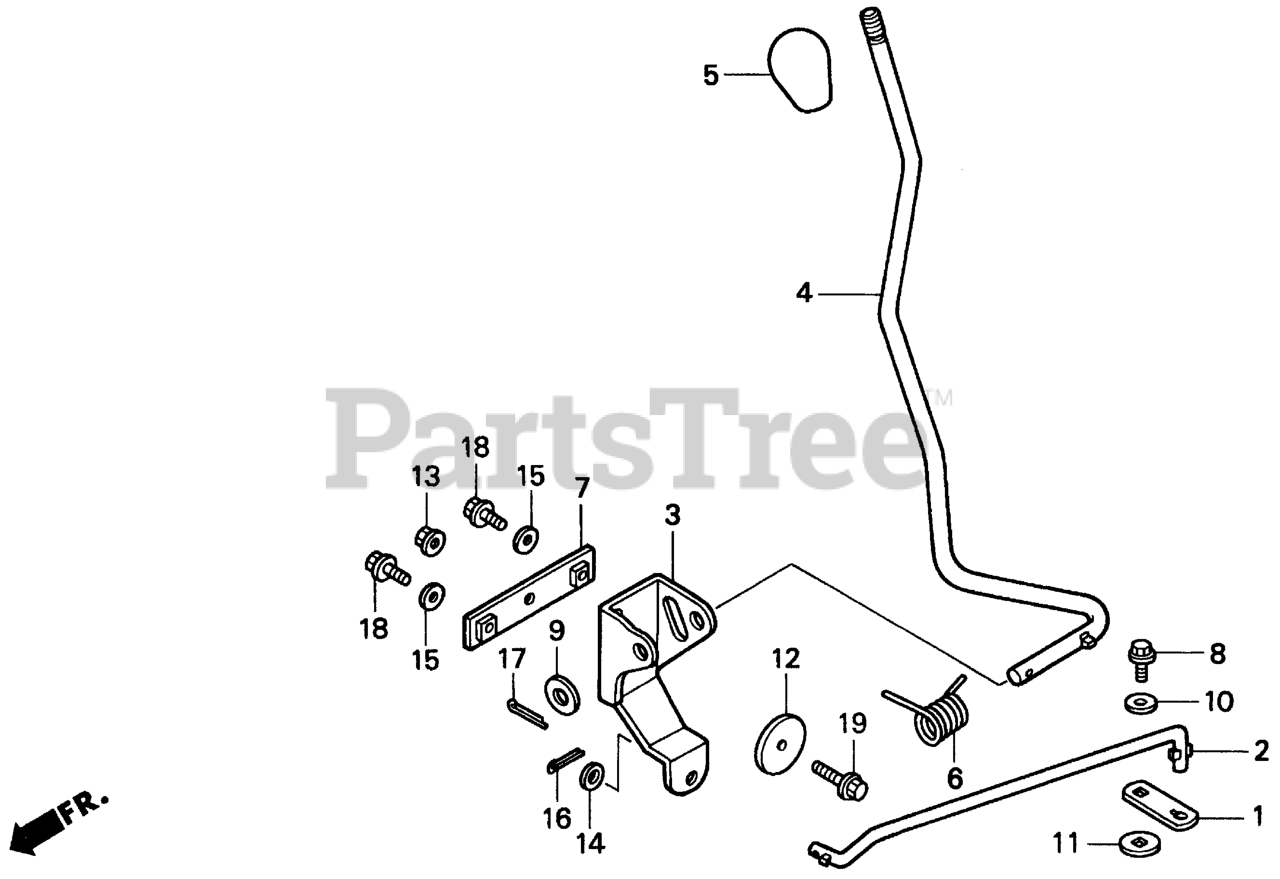

CHANGE LEVER (1) Parts Diagram

  • Title

1

Honda 24138-771-000

ARM, CHANGE

$1.99

$

Usually ships in 3-6 days

0

2

Honda 24363-771-000

ROD, GEARSHIFT

$10.99

$

Usually ships in 3-6 days

0

3

Honda 24364-771-000

ARM, CHANGE LEVER

$9.99

$

Usually ships in 3-6 days

0

4

Honda 24410-771-000

LEVER, CHANGE

$20.99

$

Usually ships in 3-6 days

0

5

Honda 24415-771-000

GRIP, CHANGE LEVER

$

$

Not available

6

Honda 24416-771-000

SPRING, CHANGE LEVER

$2.99

$

Usually ships in 3-6 days

0

7

Honda 24448-771-000

HOLDER, CHANGE ARM

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90102-772-000

BOLT, FLANGE (1/4")

$0.99

$

In Stock, Qty 11

0

9

Honda 90451-168-000

WASHER, SPECIAL

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90473-896-000

WASHER (6MM)

$2.49

$

In Stock, only 3 left!

0

11

Honda 90502-771-000

WASHER, CHANGE ARM

$1.49

$

Usually ships in 3-6 days

0

12

Honda 91552-771-000

COLLAR, TENSIONER ARM

$3.99

$

Usually ships in 3-6 days

0

13

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

14

Honda 94101-10800

WASHER, PLAIN (10MM) (Honda Code 0562199).

$2.49

$

In Stock, only 2 left!

0

15

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

16

Honda 94201-40201

PIN, SPLIT (4.0X20)

$

$

Currently unavailable

17

Honda 94201-40250

PIN, COTTER (4X25)

$1.49

$

In Stock, Qty 9

0

18

Honda 95701-08018-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18) (Honda Code 2563237).

$2.49

$

In Stock, Qty 6

0

19

Honda 95701-08028-08

BOLT, FLANGE (8X28)

$2.99

$

In Stock, only 2 left!

0
