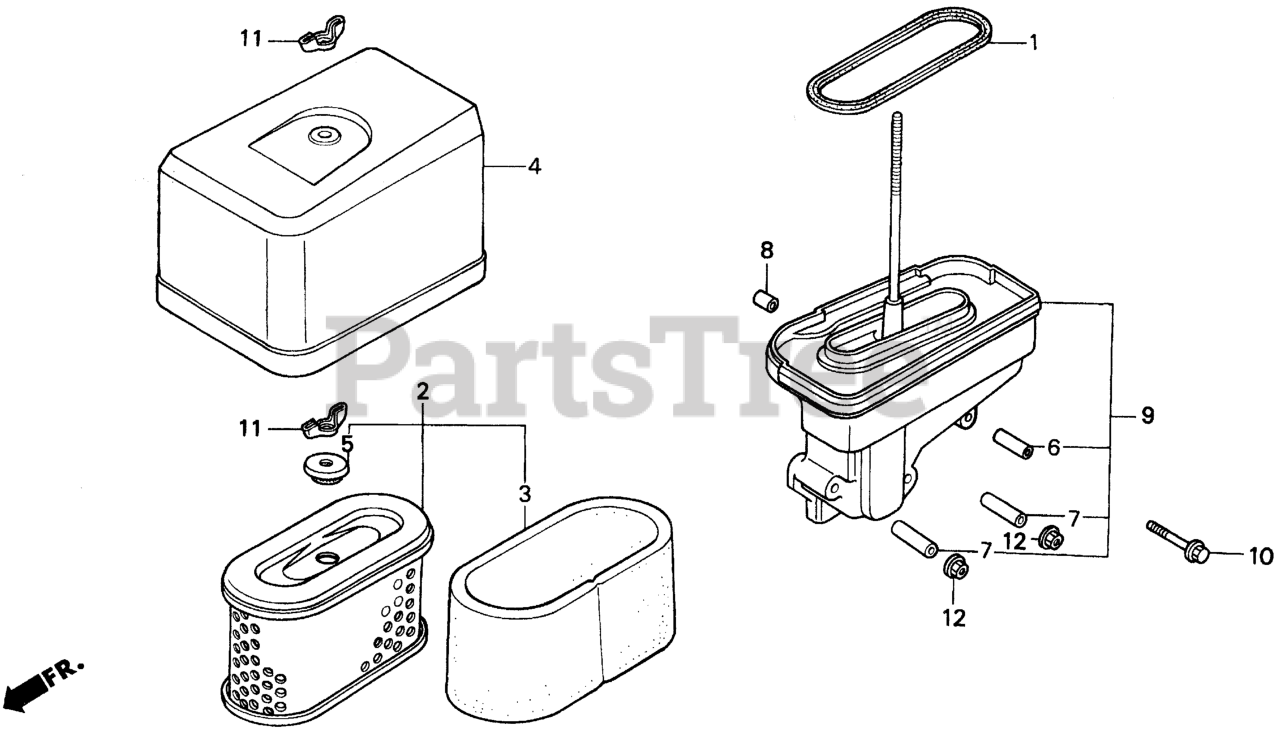

H2013 SAC (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6000001 - MZBF-6100000) AIR CLEANER (1) Parts Diagram

Harmony Lawn Tractor, Made in USA

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 16271-ZE8-000

GASKET, ELBOW (Honda Code 2090082).

$4.99

$

Usually ships in 3-6 days

0

2

Honda 17210-ZF5-010

ELEMENT, AIR CLEANER (METAL BASE)

$24.99

$

Usually ships in 3-6 days

0

2

Honda 17210-ZF5-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (METAL BASE) (Honda Code 5248299).
(Superseded to 17210-ZF5-010)

$24.99

$

Usually ships in 3-6 days

0

3

Honda 17218-ZF5-305

FILTER,OUTER

$9.49

$

In Stock, only 1 left!

0

3

Honda 17218-ZF5-505

SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 5183777).
(Superseded to 17218-ZF5-305)

$9.49

$

In Stock, only 1 left!

0

4

Honda 17230-ZE8-013

SEE PART DETAILS - PRI; COVER, AIR CLEANER (DUAL) (Honda Code 2485175).

$35.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 5

0

6

Honda 17238-ZE1-000

COLLAR, AIR CLEANER Use up to Engine SN 1786084.

$5.49

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).

$4.99

$

In Stock, Qty 10

0

8

Honda 17239-ZF5-L30

SPACER, AIR CLEANER ELBOW

$

$

Not available

9

Honda 17410-ZE8-013

ELBOW, AIR CLEANER (Honda Code 2485209).

$44.99

$

In Stock, only 1 left!

0

10

Honda 90014-ZF5-L30

BOLT, FLANGE (6X57)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
