H2013 SA (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6000001 - MZBF-6100000) TRANSMISSION PULLEY Parts Diagram

Harmony Lawn Tractor, Made in USA

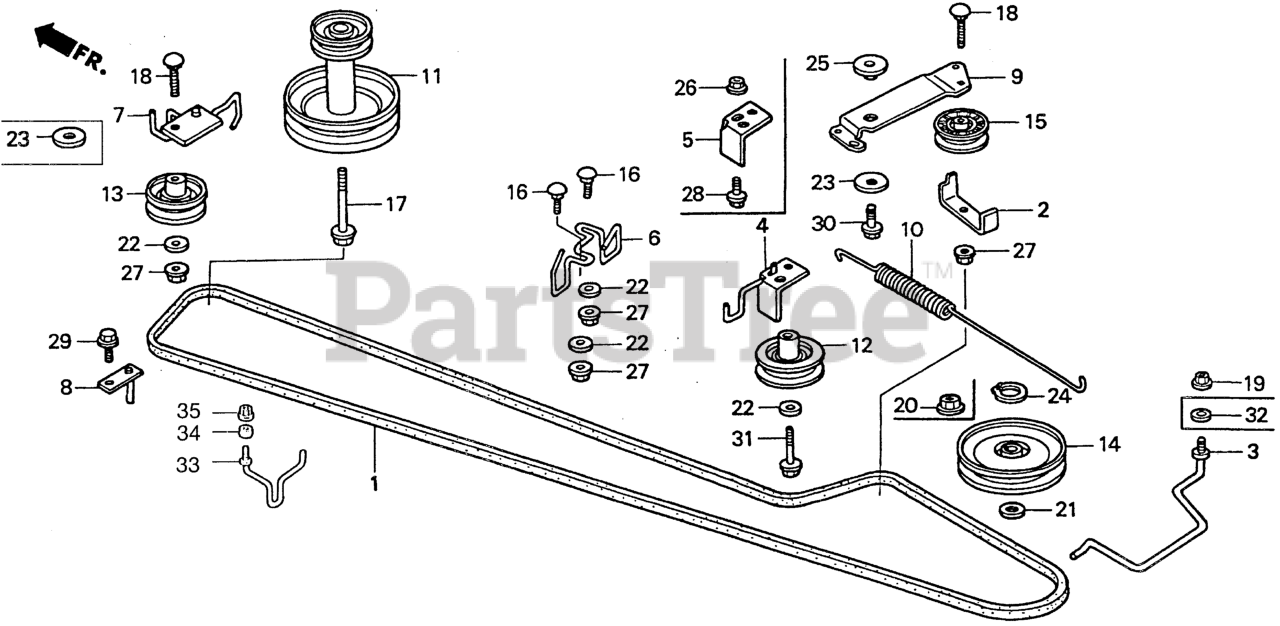

TRANSMISSION PULLEY Parts Diagram

  • Title

1

Honda 22431-771-003

V-BELT (A-102)

$75.99

$

In Stock, only 1 left!

0

2

Honda 22441-772-000

STOPPER A, BELT

$3.49

$

Usually ships in 3-6 days

0

3

Honda 22442-771-000

STOPPER B, BELT

$11.99

$

In Stock, only 1 left!

0

4

Honda 22443-771-000

STOPPER C, BELT

$12.99

$

Usually ships in 3-6 days

0

6

Honda 22444-771-000

STOPPER D, BELT

$221.99

$

Usually ships in 3-6 days

0

7

Honda 22445-771-000

STOPPER E, BELT

$21.99

$

Usually ships in 3-6 days

0

8

Honda 22446-771-000

STOPPER F, BELT

$129.99

$

Usually ships in 3-6 days

0

9

Honda 22521-771-000

ARM, TENSIONER

$

$

Currently unavailable

10

Honda 22531-771-000

SPRING, BELT TENSIONER

$67.99

$

Usually ships in 3-6 days

0

11

Honda 75170-771-000

PULLEY, ENGINE

$105.99

$

In Stock, only 1 left!

0

12

Honda 75560-771-000

ROLLER A, TENSIONER

$29.99

$

In Stock, only 2 left!

0

13

Honda 75565-771-000

ROLLER B, TENSIONER

$64.99

$

Usually ships in 3-6 days

0

14

Honda 76215-771-010

SEE PART DETAILS - PRI; PULLEY ASSY., TRANSMISSION

$193.99

$

Usually ships in 3-6 days

0

15

Honda 76245-772-000

ROLLER, TENSION

$25.99

$

In Stock, only 1 left!

0

16

Honda 90101-750-920

BOLT, SPECIAL (8X20)

$3.49

$

In Stock, only 1 left!

0

17

Honda 90103-772-000

BOLT, FLANGE (7/16")

$

$

Not available

18

Honda 90134-VE2-000

BOLT, PAN (8X50)

$0.99

$

In Stock, Qty 5

0

19

Honda 90302-SH3-003

NUT, FLANGE (8MM)

$0.99

$

In Stock, only 1 left!

0

22

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$9.49

$

In Stock, only 1 left!

0

23

Honda 90501-771-000

WASHER (8.5X42X3)

$

$

Not available

24

Honda 90653-772-000

CIRCLIP, EX. (5/8")

$0.99

$

In Stock, Qty 6

0

25

Honda 91552-771-000

COLLAR, TENSIONER ARM

$4.49

$

Usually ships in 3-6 days

0

27

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 11

0

29

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0

30

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

31

Honda 95701-08060-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526).

$3.49

$

In Stock, only 1 left!

0
