H2013 K1 SDAC (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6100001 - MZBF-6200000) TRANSMISSION Parts Diagram

Harmony Lawn Tractor, Made in USA

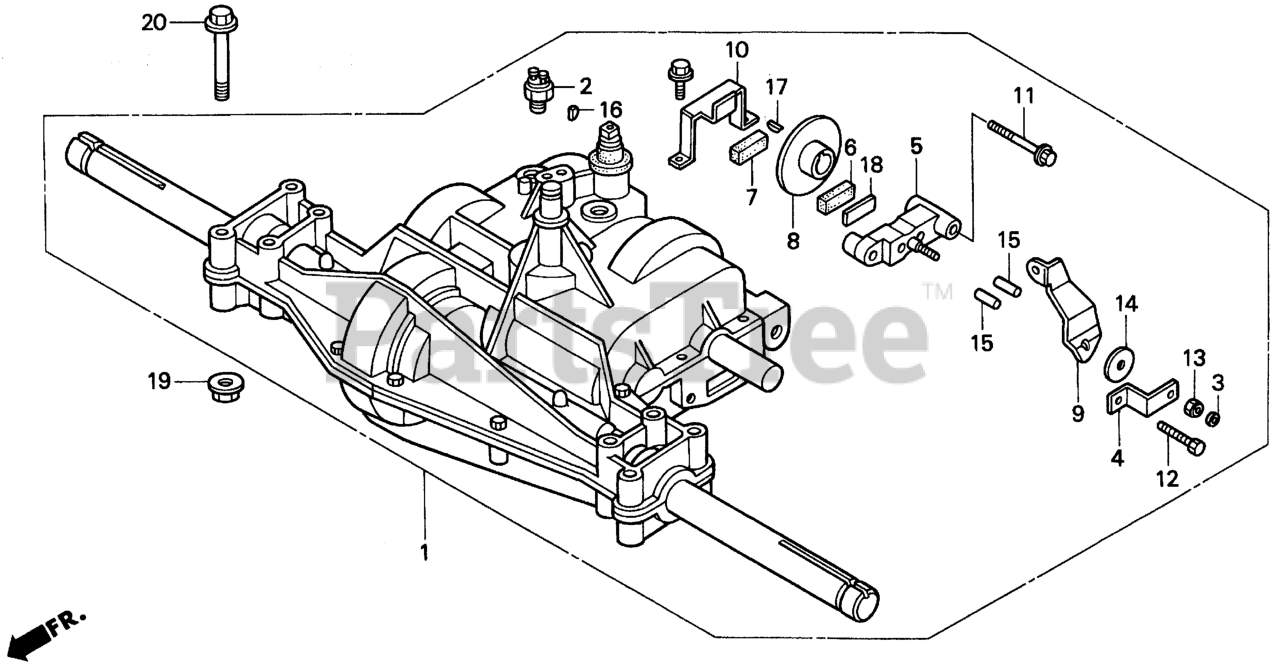

TRANSMISSION Parts Diagram

  • Title

1

Honda 20001-771-003

TRANSMISSION ASSY.

Note: Use up to Frame SN 6200884.

$

$

Currently unavailable

1

Honda 20001-771-013

SEE PART DETAILS - PRI; TRANSMISSION ASSY.

Note: Use from Frame SN 6200885.

$

$

Not available

2

Honda 35470-772-003

SWITCH ASSY., NEUTRAL

$

$

Not available

3

Honda 43145-772-003

INDICATOR, BRAKE

$3.49

$

In Stock, only 2 left!

0

4

Honda 43146-772-003

BRACKET, ANTI-ROTATION

Note: Use up to Frame SN 6200884.

$

$

Not available

4

Honda 43146-772-013

BRACKET, ANTI-ROTATION

Note: Use from Frame SN 6200885.

$56.99

$

Usually ships in 3-6 days

0

5

Honda 43181-772-003

HOLDER, BRAKE PAD

Note: Use up to Frame SN 6200884.

$48.99

$

Usually ships in 3-6 days

0

5

Honda 43181-772-013

HOLDER, BRAKE PAD

Note: Use from Frame SN 6200885.

$55.99

$

Usually ships in 3-6 days

0

6

Honda 43183-772-003

PUCK A, FRICTION

$

$

Not available

7

Honda 43184-772-003

PUCK B, FRICTION

$

$

Not available

8

Honda 43251-772-003

DISK, BRAKE

$21.99

$

Usually ships in 3-6 days

0

9

Honda 43411-772-003

ARM, RR. BRAKE

$

$

Not available

10

Honda 43412-772-000

STOPPER, BRAKE ARM

Note: Use up to Frame SN 6200884.

$7.49

$

Usually ships in 3-6 days

0

10

Honda 43412-772-003

STOPPER, BRAKE ARM

Note: Use from Frame SN 6200885.

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90109-772-003

SCREW, TAPPING (5/16)

Note: Use up to Frame SN 6200884.

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90109-772-013

SCREW, TAPPING (5/16-18X2.35)

Note: Use from Frame SN 6200885.

$12.99

$

Usually ships in 3-6 days

0

12

Honda 90110-772-003

SCREW, TAPPING (5/16X1.44)

Note: Use up to Frame SN 6200884.

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90109-772-013

SCREW, TAPPING (5/16-18X2.35)

Note: Use from Frame SN 6200885.

$12.99

$

Usually ships in 3-6 days

0

13

Honda 90306-772-003

NUT, LOCK (5/16-24)

$1.49

$

In Stock, Qty 10

0

14

Honda 90529-772-003

WASHER, PLAIN (0.32)

$0.99

$

In Stock, Qty 10

0

15

Honda 90760-772-003

PIN, DOWEL

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90761-772-003

KEY, WOODRUFF (#9)

$

$

Not available

17

Honda 90763-772-003

KEY, WOODRUFF

$1.49

$

In Stock, Qty 9

0

18

Honda 91574-772-003

SPACER

$1.49

$

In Stock, only 3 left!

0

19

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 11

0

20

Honda 95801-08065-08

BOLT, FLANGE (8X65)

$3.99

$

Usually ships in 3-6 days

0
