H2013 HK1 SDAC (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6100001 - MZBF-6200000) PLATFORM Parts Diagram

Harmony Lawn Tractor, Made in USA

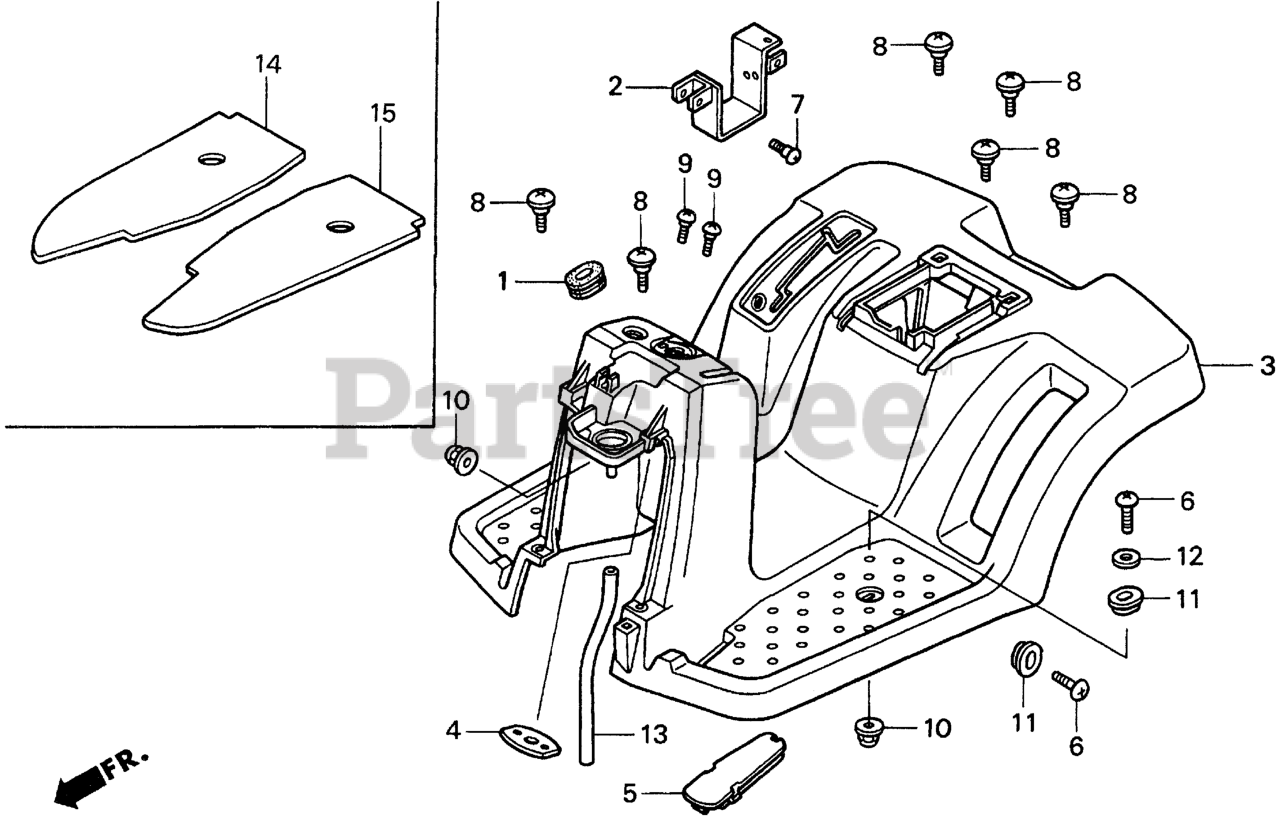

PLATFORM Parts Diagram

  • Title

NI

Honda 06830-771-000

FLOOR MAT SET

$

$

Not available

1

Honda 17512-HB9-000

RUBBER, FR. TANK

$10.99

$

Usually ships in 3-6 days

0

2

Honda 24175-771-700

PLATE, NEUTRAL SWITCH

$24.99

$

Usually ships in 3-6 days

0

3

Honda 63111-771-701ZA

SEE PART DETAILS - PRI; PLATFORM *R165* (JOLLY RED)

$302.99

$

Usually ships in 3-6 days

0

4

Honda 63129-772-000

PLATE, STEERING SHAFT

$5.49

$

Usually ships in 3-6 days

0

5

Honda 63136-771-700ZA

LID, PEDAL HOLE *R165* (JOLLY RED)

$37.99

$

Usually ships in 3-6 days

0

6

Honda 90001-GW2-000

SCREW, TORUS (6X20)

$3.49

$

Usually ships in 3-6 days

0

7

Honda 90102-GT4-000

SCREW, SPECIAL (5MM)

$3.49

$

Usually ships in 3-6 days

0

8

Honda 90124-KW1-900

SCREW, SIDE COVER SETTING

Note: Use up to Frame SN 6105378.

$4.99

$

In Stock, only 2 left!

0

8

Honda 90103-771-000

SCREW, PLATFORM SETTING

Note: Use from Frame SN 6105379.

$

$

Not available

9

Honda 90150-GN5-901

SCREW, PAN (5X15)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

11

Honda 90513-405-000

WASHER (6X9)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 94103-06700

WASHER, PLAIN (6MM) (Honda Code 0622324).

$0.99

$

In Stock, Qty 5

0

13

Honda 95005-91001-30M

BULK HOSE, VACUUM (12X1000) (12X340)

$24.99

$

Usually ships in 3-6 days

0

14

Honda 83301-771-000

SEE PART DETAILS - PRI; FLOOR MAT, R.

$45.99

$

Usually ships in 3-6 days

0

15

Honda 83302-771-000

SEE PART DETAILS - PRI; FLOOR MAT, L.

$

$

Not available
