H1011 R SAC (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) IGNITION COIL@FLYWHEEL Parts Diagram

Riding Mower, Made in USA

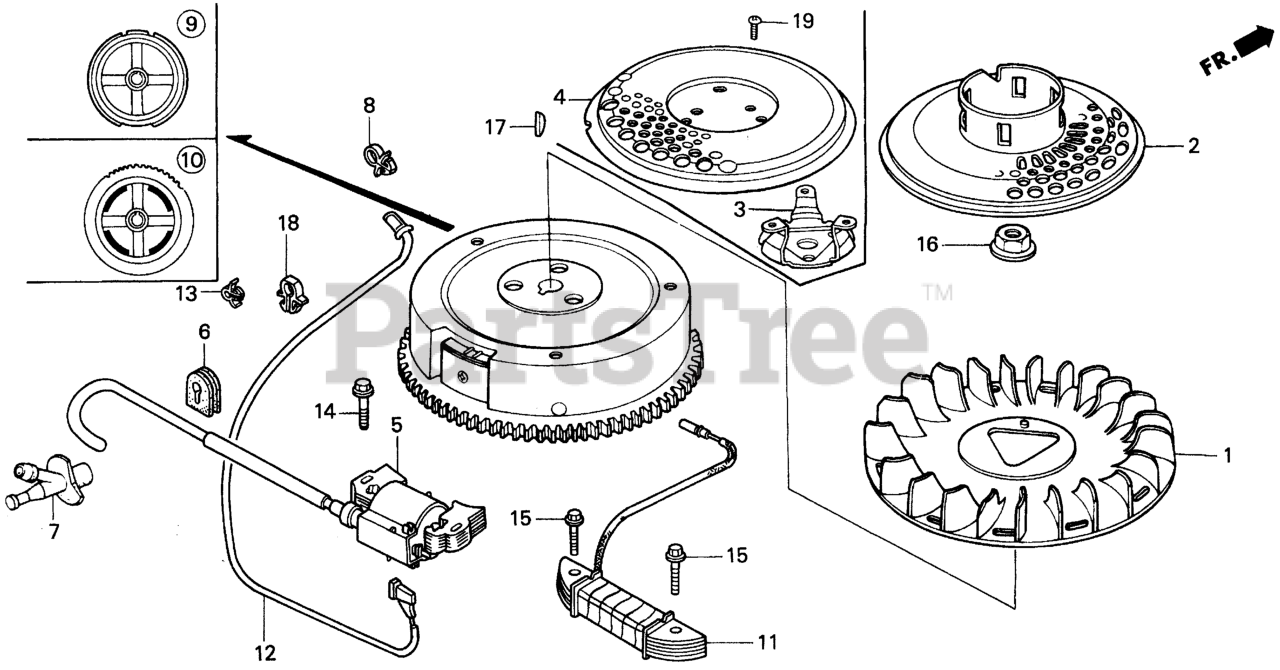

IGNITION COIL@FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-ZE9-020

FAN, COOLING

$10.99

$

Usually ships in 3-6 days

0

2

Honda 28450-ZE9-004

PULLEY, STARTER (SCREEN GRID) (Honda Code 4186342).

$70.99

$

Usually ships in 3-6 days

0

5

Honda 30500-ZE9-L32

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 4542528).
(Superseded to 30500-Z1C-023)

$58.99

$

Usually ships in 3-6 days

0

5

Honda 30500-ZE9-L33

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 7088255).
(Superseded to 30500-Z1C-023)

$58.99

$

Usually ships in 3-6 days

0

5

Honda 30500-Z1C-023

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$58.99

$

Usually ships in 3-6 days

0

6

Honda 30563-ZE8-000

GROMMET, IGNITION (Honda Code 2091205).

$6.49

$

Usually ships in 3-6 days

0

7

Honda 30700-ZE8-701

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR
(Superseded to 30700-ZE8-702)

$

$

Not available

9

Honda 31100-ZE9-020

SEE PART DETAILS - PRI; FLYWHEEL (Honda Code 5355870).

$234.99

$

Usually ships in 3-6 days

0

12

Honda 36101-ZE9-L30

SEE PART DETAILS - PRI; WIRE, STOP SWITCH

$28.99

$

Usually ships in 3-6 days

0

13

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

$2.99

$

In Stock, only 1 left!

0

14

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 9

0

16

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM) (1) (Honda Code 5032727).

Note: Use from Engine SN 2104461.

$10.99

$

Usually ships in 3-6 days

0

16

Honda 90201-ZE3-790

SEE PART DETAILS - PRI; NUT, SPECIAL (16MM)

Note: Use up to Engine SN 2104460.

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 2027159).

$3.99

$

In Stock, Qty 16

0

18

Honda 91504-SL0-003

CLIP, HOOD OPEN WIRE

$7.49

$

Usually ships in 3-6 days

0
