H1011 R SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) WIRE HARNESS Parts Diagram

Riding Mower, Made in USA

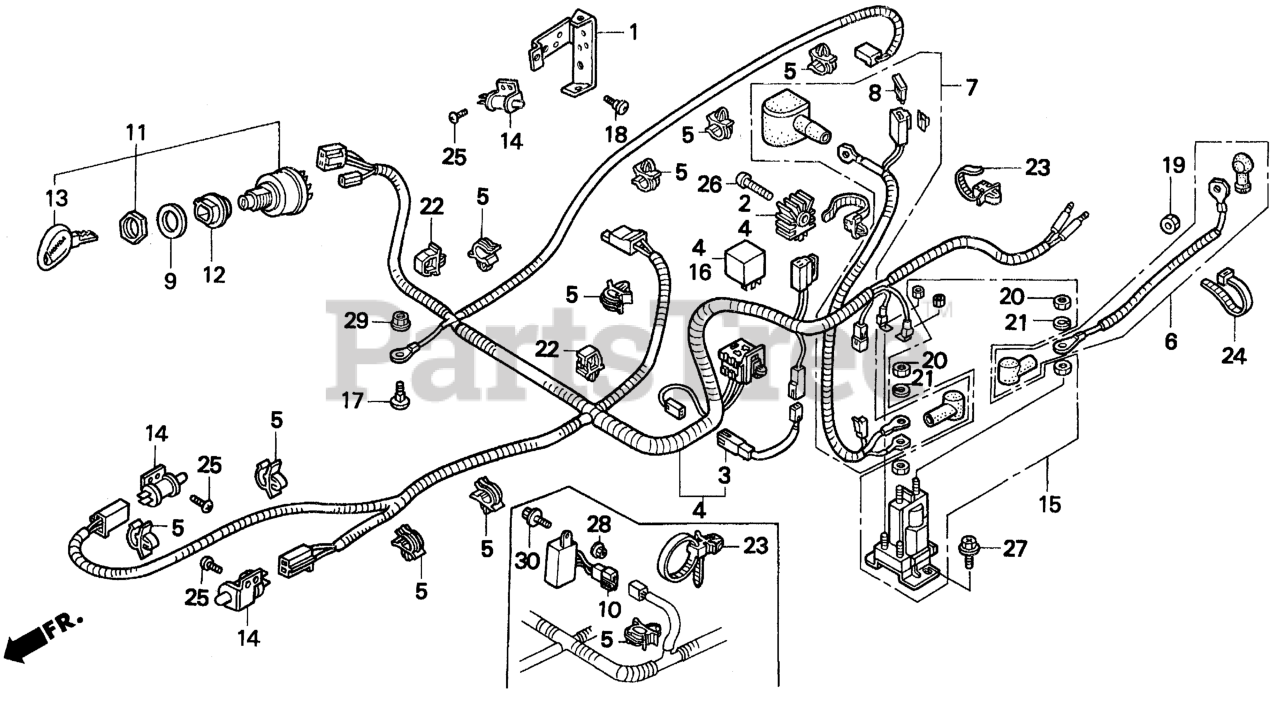

WIRE HARNESS Parts Diagram

  • Title

4

Honda 32100-772-800

WIRE HARNESS ASSY., MAIN

$54.99

$

Usually ships in 3-6 days

0

5

Honda 32171-GJ1-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

9

Honda 33650-KAF-000

COLLAR, FR. TURN SIGNAL

$4.49

$

In Stock, only 1 left!

0

10

Honda 34100-772-801

CONTROL ASSY., ENGINE

$

$

Not available

11

Honda 35100-772-003

SWITCH ASSY., COMBINATION

$24.99

$

In Stock, only 1 left!

0

12

Honda 35102-772-000

BASE, COMBINATION SWITCH

$2.49

$

In Stock, only 2 left!

0

13

Honda 35110-772-013

SEE PART DETAILS - PRI; KEY, COMBINATION SWITCH

$5.49

$

In Stock, only 1 left!

0

14

Honda 35330-772-003

SWITCH ASSY., P.T.O. CLUTCH

$7.49

$

Usually ships in 3-6 days

0

17

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

22

Honda 90650-SB6-003

CLIP, HARNESS (15MM) (BLUE)

$5.99

$

Usually ships in 3-6 days

0

23

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$7.49

$

Usually ships in 3-6 days

0

25

Honda 93901-35020

SCREW, TAPPING (5X8) (NOT AVAILABLE)

$

$

Not available

28

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

29

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

30

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0
