H1011 R SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) TRANSMISSION PULLEY Parts Diagram

Riding Mower, Made in USA

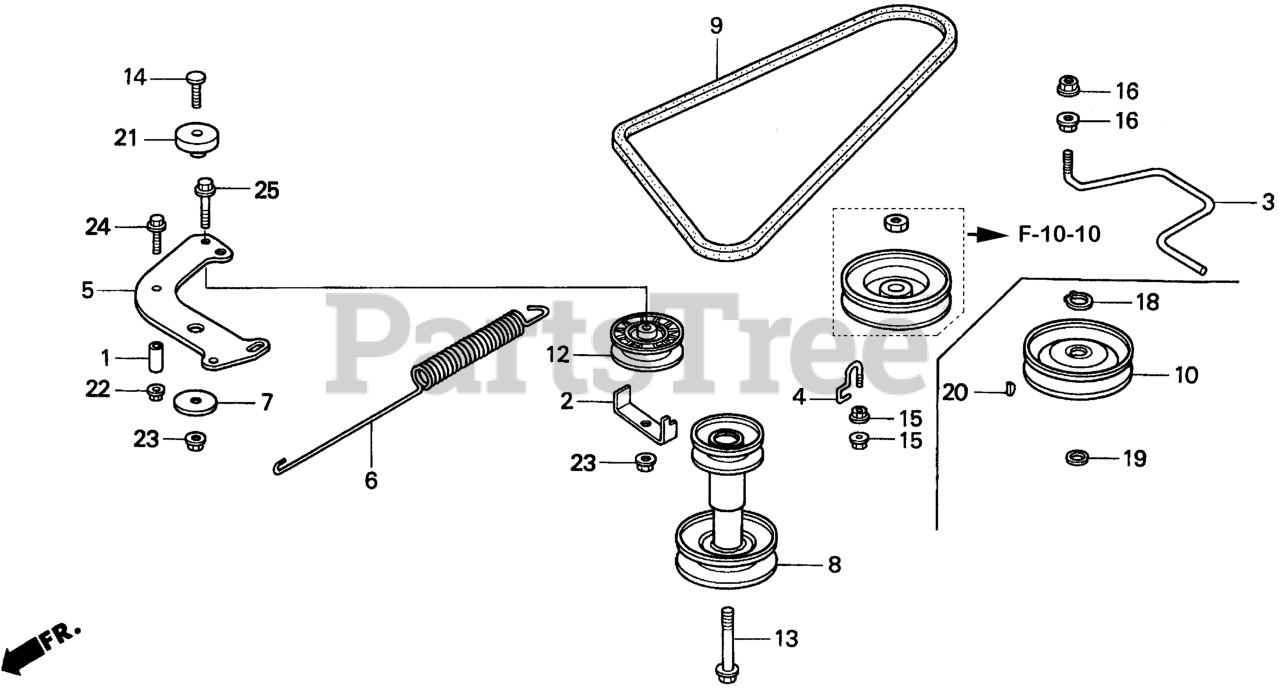

TRANSMISSION PULLEY Parts Diagram

  • Title

1

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

$4.99

$

Usually ships in 3-6 days

0

2

Honda 22441-772-000

STOPPER A, BELT

$3.49

$

Usually ships in 3-6 days

0

3

Honda 22442-772-000

STOPPER B, BELT

$16.99

$

Usually ships in 3-6 days

0

4

Honda 22443-772-000

STOPPER C, BELT

$14.99

$

Usually ships in 3-6 days

0

5

Honda 22521-772-010

ARM, TENSIONER

$32.99

$

Usually ships in 3-6 days

0

6

Honda 22531-772-000

SPRING, BELT TENSIONER

$68.99

$

Usually ships in 3-6 days

0

7

Honda 40213-041-730

WASHER (42X8.5)

$

$

Not available

8

Honda 75170-772-010

PULLEY, ENGINE

$

$

Not available

9

Honda 76184-772-003

SEE PART DETAILS - PRI; V-BELT, PRIMARY

$25.99

$

In Stock, only 2 left!

0

10

Honda 76215-772-020

SEE PART DETAILS - PRI; PULLEY ASSY., TRANSMISSION

$92.99

$

Usually ships in 3-6 days

0

12

Honda 76245-772-000

ROLLER, TENSION

$25.99

$

In Stock, only 1 left!

0

13

Honda 90103-772-000

BOLT, FLANGE (7/16")

$

$

Not available

14

Honda 90105-750-640

BOLT, SPECIAL (8X37)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90301-634-670

NUT, FLANGE (6MM)

$13.99

$

Usually ships in 3-6 days

0

16

Honda 90302-SH3-003

NUT, FLANGE (8MM)

$0.99

$

In Stock, only 1 left!

0

18

Honda 90653-772-000

CIRCLIP, EX. (5/8")

$0.99

$

In Stock, Qty 6

0

19

Honda 90655-772-013

RING, RETAINING

$1.49

$

In Stock, Qty 7

0

20

Honda 90761-772-003

KEY, WOODRUFF (#9)

$

$

Not available

21

Honda 91554-772-000

COLLAR, TENSION ARM

$11.99

$

Usually ships in 3-6 days

0

22

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

23

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

24

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2170801).

$2.49

$

In Stock, only 4 left!

0

25

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$2.99

$

Usually ships in 3-6 days

0
