H1011 R SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) TENSIONER ARM Parts Diagram

Riding Mower, Made in USA

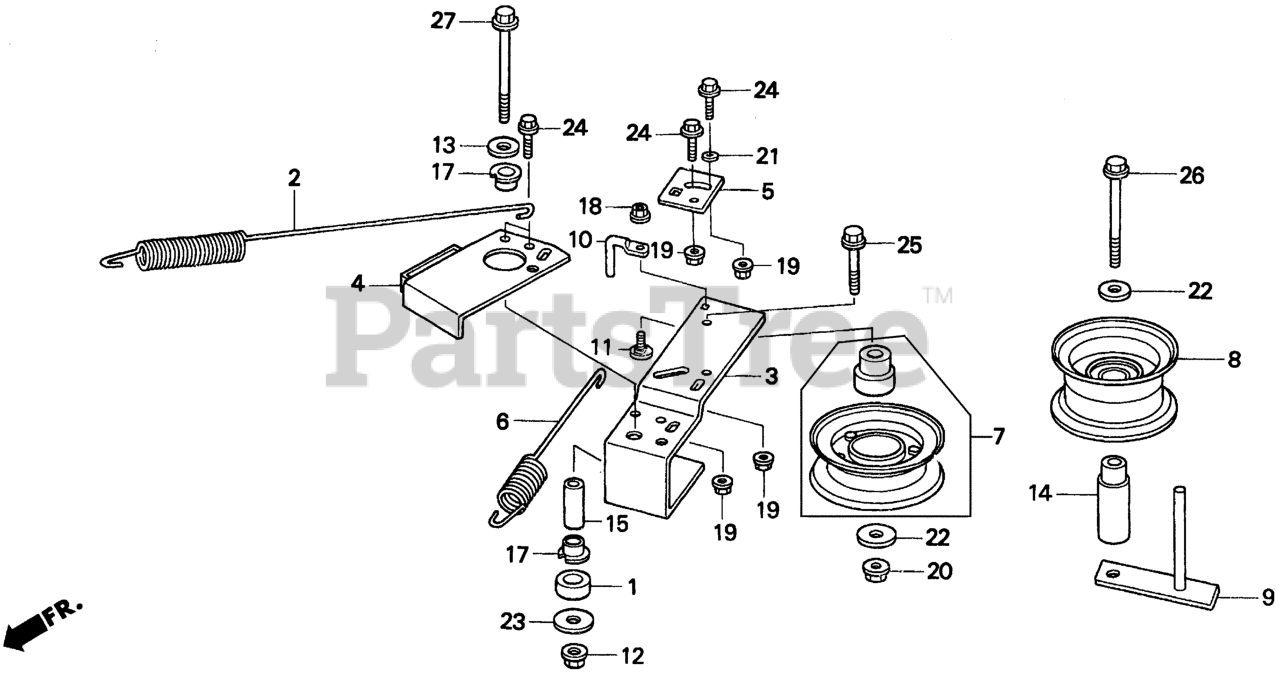

TENSIONER ARM Parts Diagram

  • Title

1

Honda 50372-MR8-000

COLLAR, MAIN PIPE ENGINE HANGER (A)

$10.99

$

In Stock, only 1 left!

0

2

Honda 76122-772-L00

SPRING, TENSIONER ARM

$82.99

$

Usually ships in 3-6 days

0

3

Honda 76123-772-L01

SEE PART DETAILS - PRI; ARM, TENSIONER

$152.99

$

Usually ships in 3-6 days

0

4

Honda 76124-772-L01

ARM, BRAKE

$129.99

$

Usually ships in 3-6 days

0

5

Honda 76126-772-L01

SEE PART DETAILS - PRI; PLATE, ADJUSTING

$34.99

$

Usually ships in 3-6 days

0

6

Honda 76129-772-L00

SPRING B, TENSION

$17.99

$

Usually ships in 3-6 days

0

7

Honda 76130-772-L00

ROLLER, TENSION

$43.99

$

Usually ships in 3-6 days

0

8

Honda 76195-772-L00

PULLEY, IDLER

$52.99

$

Usually ships in 3-6 days

0

9

Honda 76254-772-L00

STOPPER B, BELT

$5.99

$

Usually ships in 3-6 days

0

10

Honda 76257-772-L00

STOPPER D, BELT

$

$

Not available

11

Honda 90101-750-920

BOLT, SPECIAL (8X20)

$3.49

$

In Stock, only 1 left!

0

12

Honda 90212-SA5-003

NUT, SELF-LOCK (10MM)

$1.49

$

In Stock, Qty 6

0

13

Honda 90527-230-000

SEE PART DETAILS - PRI; WASHER, PLAIN (10.3MM)

$2.99

$

In Stock, only 3 left!

0

14

Honda 91556-772-L00

COLLAR, IDLE ROLLER

$

$

Not available

15

Honda 91559-772-L00

COLLAR, TENSION

$17.99

$

Usually ships in 3-6 days

0

17

Honda 91568-772-L01

COLLAR C, TENSIONER

$10.99

$

In Stock, Qty 8

0

18

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 6

0

19

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

20

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

21

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

22

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

23

Honda 94103-10800

WASHER, PLAIN (10MM)

$1.99

$

In Stock, Qty 8

0

24

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2374759).

$0.99

$

Usually ships in 3-6 days

0

25

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$2.99

$

Usually ships in 3-6 days

0

26

Honda 95701-08070-08

BOLT, FLANGE (8X70)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 95701-10085-08

BOLT, FLANGE (10X85)

$5.49

$

Usually ships in 3-6 days

0
