H1011 R SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) SEAT Parts Diagram
Riding Mower, Made in USA

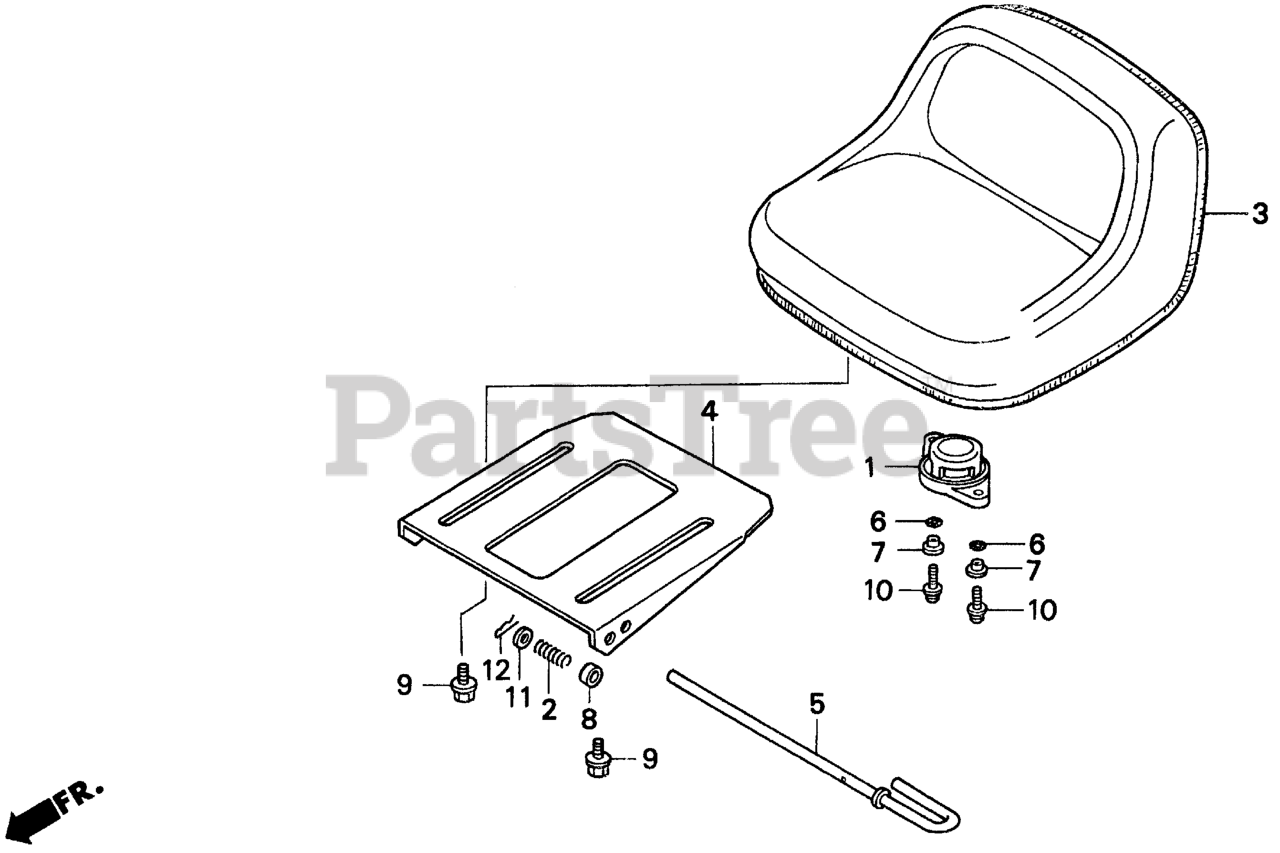

SEAT Parts Diagram
Honda 35460-772-003
SWITCH ASSY., SEAT
$27.99
$
Usually ships in 3-6 days
Honda 60194-765-000
SPRING, MAINTENANCE COVER
$2.99
$
Usually ships in 3-6 days
Honda 81100-772-000
SEAT ASSY.
$
$
Not available
Honda 81110-772-000
BASE, SEAT
$20.99
$
Usually ships in 3-6 days
Honda 81138-772-010
SEE PART DETAILS - PRI; PIN, SEAT HINGE
$198.99
$
Usually ships in 3-6 days
Honda 91352-SA5-952
O-RING (7.8X1.9) (NOK)
$3.99
$
Usually ships in 3-6 days
Honda 91564-772-000
COLLAR, SEAT SWITCH
$3.99
$
Usually ships in 3-6 days
Honda 91566-772-000
HINGE
$2.49
$
Usually ships in 3-6 days
Honda 93404-08016-07
BOLT-WASHER (8X16)
$2.49
$
Usually ships in 3-6 days
Honda 93892-05016-08
SCREW-WASHER (5X16) Use up to Engine SN 2056819.
$1.49
$
Usually ships in 3-6 days
Honda 94102-08800
WASHER, PLAIN (8MM) (Honda Code 0562215).
$1.49
$
In Stock, Qty 9
Honda 94251-08000
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).
$1.99
$
In Stock, Qty 9
