H1011 R SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) HEIGHT ADJUSTING LEVER Parts Diagram

Riding Mower, Made in USA

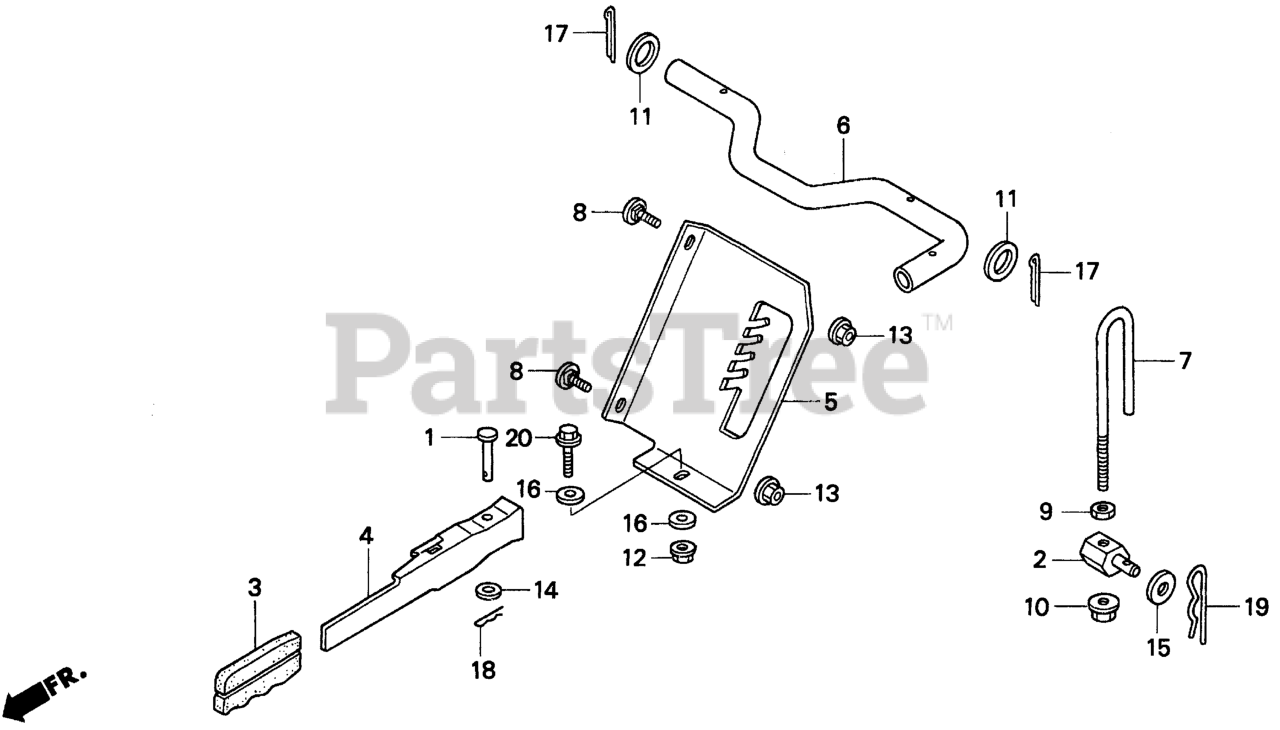

HEIGHT ADJUSTING LEVER Parts Diagram

  • Title

1

Honda 50603-KAE-000

PIN, STEP BAR JOINT

$

$

Not available

2

Honda 76186-763-A00

PIN, RR. LINK ADJUSTING

$18.99

$

Usually ships in 3-6 days

0

3

Honda 76315-772-000

GRIP, HEIGHT ADJUSTMENT

$1.99

$

Usually ships in 3-6 days

0

4

Honda 76411-772-000

LEVER, HEIGHT ADJUSTMENT

$12.99

$

Usually ships in 3-6 days

0

5

Honda 76412-772-000

PLATE, RATCHET

$22.99

$

Usually ships in 3-6 days

0

6

Honda 76421-772-000

ARM, LIFT

$30.99

$

Usually ships in 3-6 days

0

7

Honda 76432-772-000

BAR, ADJUSTMENT

$6.49

$

Usually ships in 3-6 days

0

8

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

9

Honda 90301-MB9-950

NUT, LOCK (12MM)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 90380-SB2-003

NUT, SELF-LOCK (OHASHI)

$1.99

$

In Stock, only 2 left!

0

11

Honda 91864-759-003

WASHER, PLAIN (26MM)

$10.99

$

Usually ships in 3-6 days

0

12

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

13

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

14

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

15

Honda 94101-14800

WASHER, PLAIN (14MM)

$1.99

$

In Stock, Qty 8

0

16

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

17

Honda 94201-50400

PIN, COTTER (5.0X40)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

19

Honda 94252-14000

PIN, LOCK (14MM)

$2.99

$

In Stock, only 2 left!

0

20

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2170801).

$2.49

$

In Stock, only 4 left!

0
