H1011 R SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) CHANGE LEVER (1) Parts Diagram

Riding Mower, Made in USA

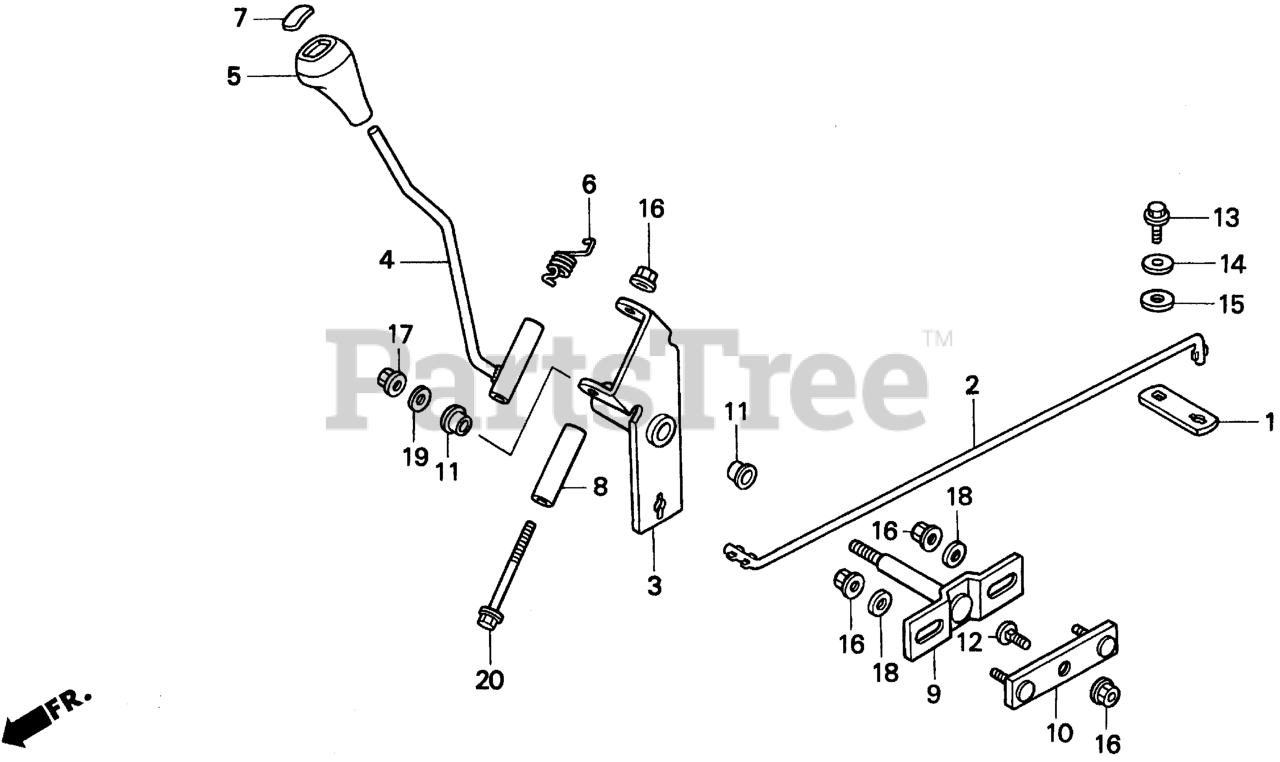

CHANGE LEVER (1) Parts Diagram

  • Title

1

Honda 24138-772-000

ARM, CHANGE

$1.99

$

Usually ships in 3-6 days

0

2

Honda 24363-772-000

ROD, GEARSHIFT

$8.99

$

Usually ships in 3-6 days

0

3

Honda 24364-772-000

ARM B, CHANGE

$20.99

$

Usually ships in 3-6 days

0

4

Honda 24410-772-000

LEVER, CHANGE

$50.99

$

Usually ships in 3-6 days

0

5

Honda 24415-767-000

GRIP, CHANGE LEVER

$19.99

$

Usually ships in 3-6 days

0

6

Honda 24416-772-000

SPRING, CHANGE LEVER

$8.99

$

Usually ships in 3-6 days

0

7

Honda 24417-767-000

KNOB, CHANGE LEVER GRIP

$5.99

$

Usually ships in 3-6 days

0

8

Honda 24429-763-D00

COLLAR, CHANGE LEVER JOINT

$7.49

$

Usually ships in 3-6 days

0

9

Honda 24448-772-000

HOLDER, CHANGE ARM

$17.99

$

Usually ships in 3-6 days

0

10

Honda 24465-772-000

PLATE, ARM MOUNT

$5.49

$

Usually ships in 3-6 days

0

11

Honda 47234-758-000

BUSH (15X17X10)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

13

Honda 90102-772-000

BOLT, FLANGE (1/4")

$0.99

$

In Stock, Qty 11

0

14

Honda 90473-896-000

WASHER (6MM)

$2.49

$

In Stock, only 3 left!

0

15

Honda 90506-SE0-000

WASHER, PLAIN (12MM)

$8.49

$

Usually ships in 3-6 days

0

16

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

17

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$3.99

$

In Stock, Qty 20+

0

18

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

19

Honda 94103-10800

WASHER, PLAIN (10MM)

$1.99

$

In Stock, Qty 8

0

20

Honda 95701-08080-08

BOLT, FLANGE (8X80)

$3.99

$

Usually ships in 3-6 days

0
