H1011 R SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) CARBURETOR Parts Diagram

Riding Mower, Made in USA

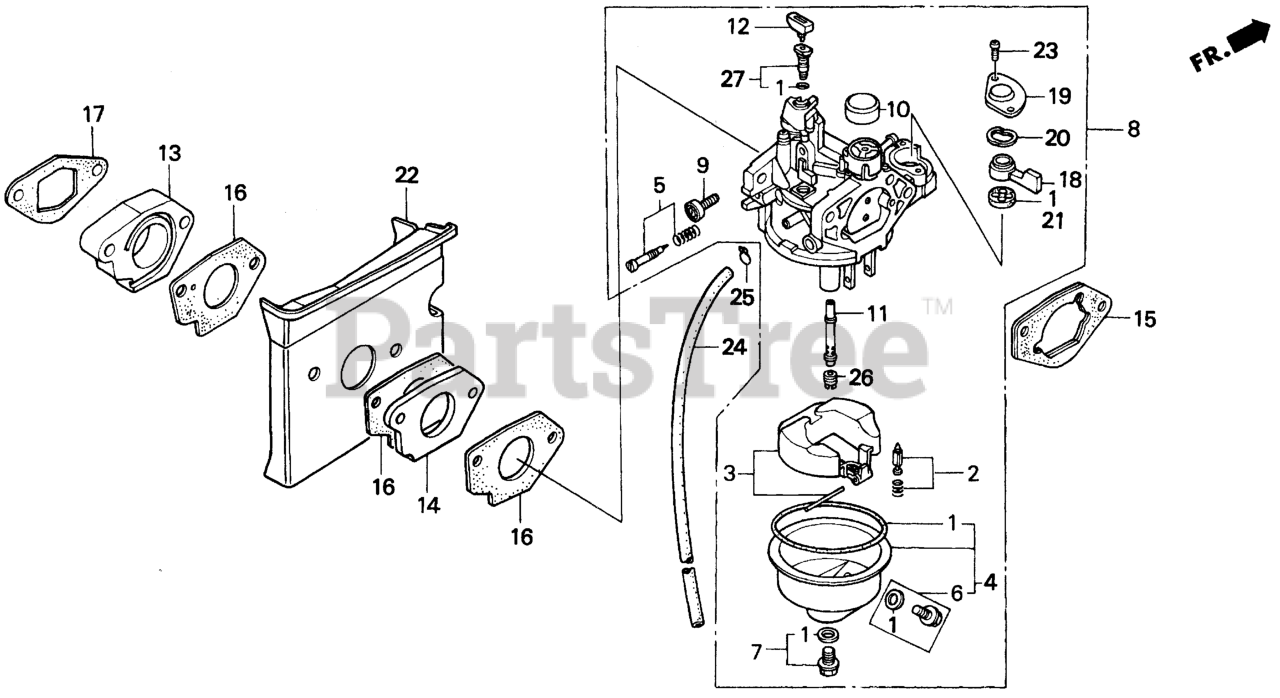

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (EXC. 16173-001-004) (CARBURETOR NO.) (EXCEPT 16173-001-004)

$19.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$44.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

$14.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

8

Honda 16100-ZE9-L03

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB36A C)

$177.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-ZE9-005

NOZZLE, MAIN (Honda Code 2271351).

$33.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZE9-010

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR (Honda Code 4714937).

$15.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZE9-L00

INSULATOR, CARBURETOR

$19.99

$

Usually ships in 3-6 days

0

15

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

Usually ships in 3-6 days

0

16

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3795358).

$2.99

$

In Stock, Qty 20+

0

17

Honda 16223-ZE9-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4145777).

$2.99

$

In Stock, Qty 5

0

18

Honda 16953-ZE1-712

LEVER, VALVE (Honda Code 5266069).

$10.99

$

Usually ships in 3-6 days

0

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

22

Honda 19625-ZE9-L00

GUIDE, AIR

$21.99

$

Usually ships in 3-6 days

0

22

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, Qty 5

0

23

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, Qty 5

0

24

Honda 95001-45001-60M

BULK HOSE, FUEL (4.5X1000) (4.5X180)

$

$

Currently unavailable

25

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

26

Honda 99101-124-0820

JET, MAIN (#82) (Honda Code 0714527).

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

26

Honda 99101-124-0850

JET, MAIN (#85) (Honda Code 0761361).

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

26

Honda 99101-124-0880

JET, MAIN (#88) Use from Engine SN BE27A B to BE27A E.

$11.99

$

Usually ships in 3-6 days

0

27

Honda 99204-ZA0-0400

JET SET, PILOT (#40) (Honda Code 2097400).

$22.99

$

Usually ships in 3-6 days

0
