H1011 R SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) BLADE SHAFT Parts Diagram

Riding Mower, Made in USA

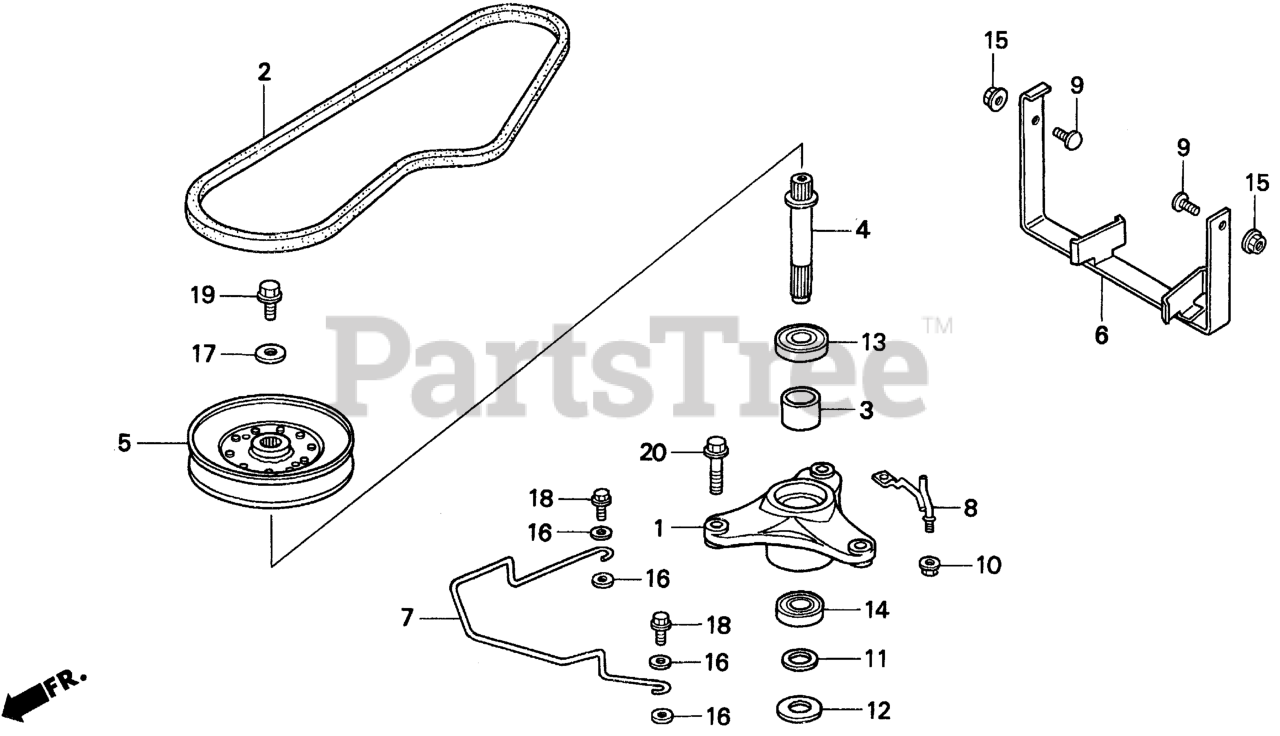

BLADE SHAFT Parts Diagram

  • Title

1

Honda 72711-763-A00

HOUSING, BEARING

$153.99

$

Usually ships in 3-6 days

0

2

Honda 76181-772-L02

SEE PART DETAILS - PRI; V-BELT, BLADE

$74.99

$

In Stock, only 1 left!

0

3

Honda 76213-751-700

COLLAR, BLADE SHAFT

$12.99

$

In Stock, only 2 left!

0

4

Honda 76214-763-A00

SHAFT, BLADE

$89.99

$

In Stock, only 1 left!

0

5

Honda 76221-772-L01

PULLEY, CUTTER

$57.99

$

Usually ships in 3-6 days

0

6

Honda 76252-772-L00

STOPPER A, BELT

$

$

Not available

7

Honda 76253-772-L00

STOPPER C, BELT

$16.99

$

Usually ships in 3-6 days

0

8

Honda 76258-772-L02

STOPPER E, BELT

$

$

Not available

9

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

10

Honda 90309-GE2-000

NUT, FLANGE (8MM)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90428-752-830

WASHER, THRUST (20MM)

$4.49

$

In Stock, only 1 left!

0

12

Honda 90429-752-830

WASHER, BLADE HOLDER

$10.99

$

In Stock, only 2 left!

0

13

Honda 91052-758-003

BEARING, RADIAL BALL (6204)

$22.99

$

In Stock, only 1 left!

0

14

Honda 91055-752-831

BEARING, RADIAL BALL

$23.99

$

In Stock, only 2 left!

0

15

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

16

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

17

Honda 94103-10800

WASHER, PLAIN (10MM)

$1.99

$

In Stock, Qty 8

0

18

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-10016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 95701-10035-08

BOLT, FLANGE (10X35)

$5.49

$

In Stock, only 3 left!

0
