H1011 HK1 SAC (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6100001 - MZAW-9999999) PEDAL Parts Diagram

Riding Mower, Made in USA

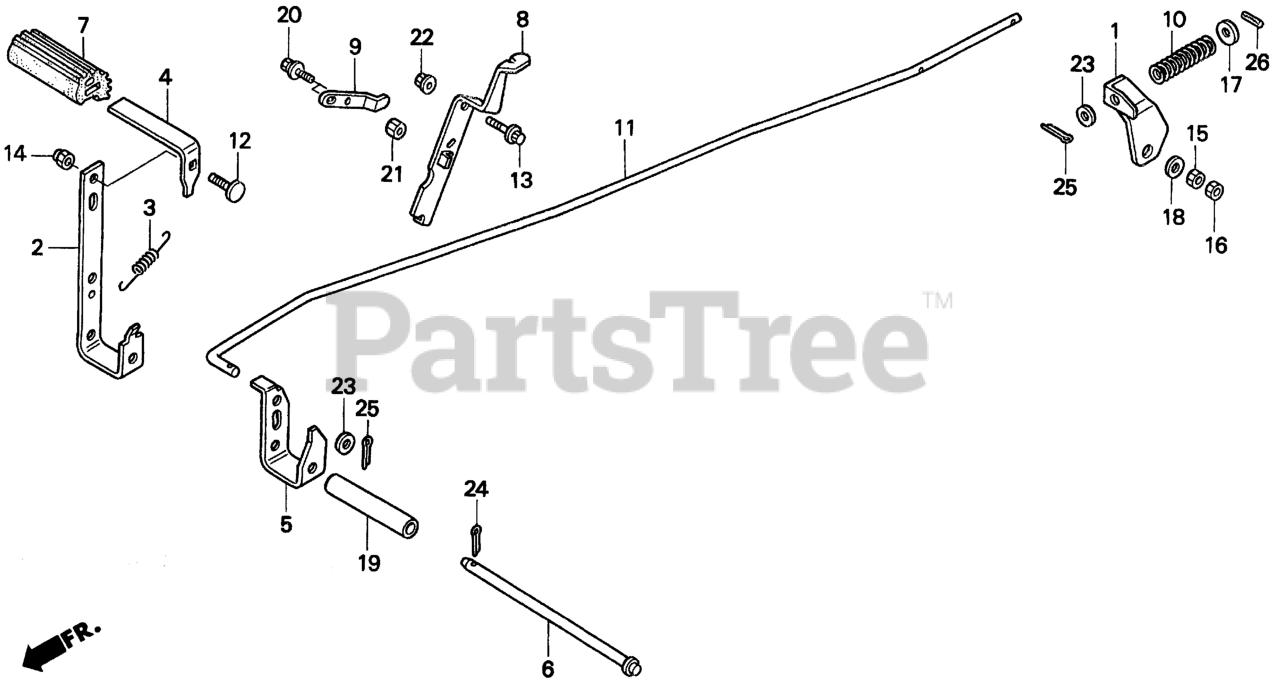

PEDAL Parts Diagram

  • Title
1

Honda 43411-772-701

ARM, RR. BRAKE

$23.99

$

Usually ships in 3-6 days

0

2

Honda 46511-772-700

PEDAL, BRAKE & CLUTCH

$15.99

$

Usually ships in 3-6 days

0

3

Honda 46514-763-A00

SPRING, BRAKE PEDAL

$5.99

$

Usually ships in 3-6 days

0

4

Honda 46515-772-000

BRACKET, BRAKE/CLUTCH

$4.99

$

Usually ships in 3-6 days

0

5

Honda 46516-772-010

ARM, BRAKE

$11.99

$

Usually ships in 3-6 days

0

6

Honda 46517-772-000

SHAFT, PEDAL

$10.99

$

Usually ships in 3-6 days

0

7

Honda 46545-772-000

RUBBER, PEDAL

$

$

Not available

8

Honda 47110-772-000

LEVER, PARKING BRAKE

$25.99

$

Usually ships in 3-6 days

0

9

Honda 47135-772-010

SEE PART DETAILS - PRI; SPRING, PARKING BRAKE LEVER

$2.49

$

Usually ships in 3-6 days

0

10

Honda 47251-772-700

SPRING, BRAKE LOAD SETTING

$3.99

$

Usually ships in 3-6 days

0

11

Honda 47261-772-700

ROD, RR. BRAKE

$18.99

$

Usually ships in 3-6 days

0

12

Honda 90105-750-000

BOLT, SPECIAL (8X27)

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90110-751-000

BOLT, ADJUSTING ARM

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90309-MR1-770

NUT, FLANGE (8MM)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90310-772-701

NUT, HEX. (5/16-24UNF)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90311-772-701

NUT, HEX. LOCK UNJC (5/16-24)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90505-772-000

WASHER, PLAIN (0.63)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90534-772-701

WASHER (7/16X7/8X0.060)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 91569-772-700

COLLAR (13X7.5X89)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 93404-05012-08

BOLT-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

23

Honda 94101-10800

WASHER, PLAIN (10MM) (Honda Code 0562199).

$2.49

$

In Stock, only 2 left!

0

24

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 20+

0

24

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 20+

0

25

Honda 94201-40220

PIN, SPLIT (4.0X22)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94305-40252

PIN, SPRING (4X25)

$2.99

$

In Stock, Qty 8

0
