H1011 HK1 SAC (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6100001 - MZAW-9999999) HYDROSTATIC TRANSMISSION Parts Diagram

Riding Mower, Made in USA

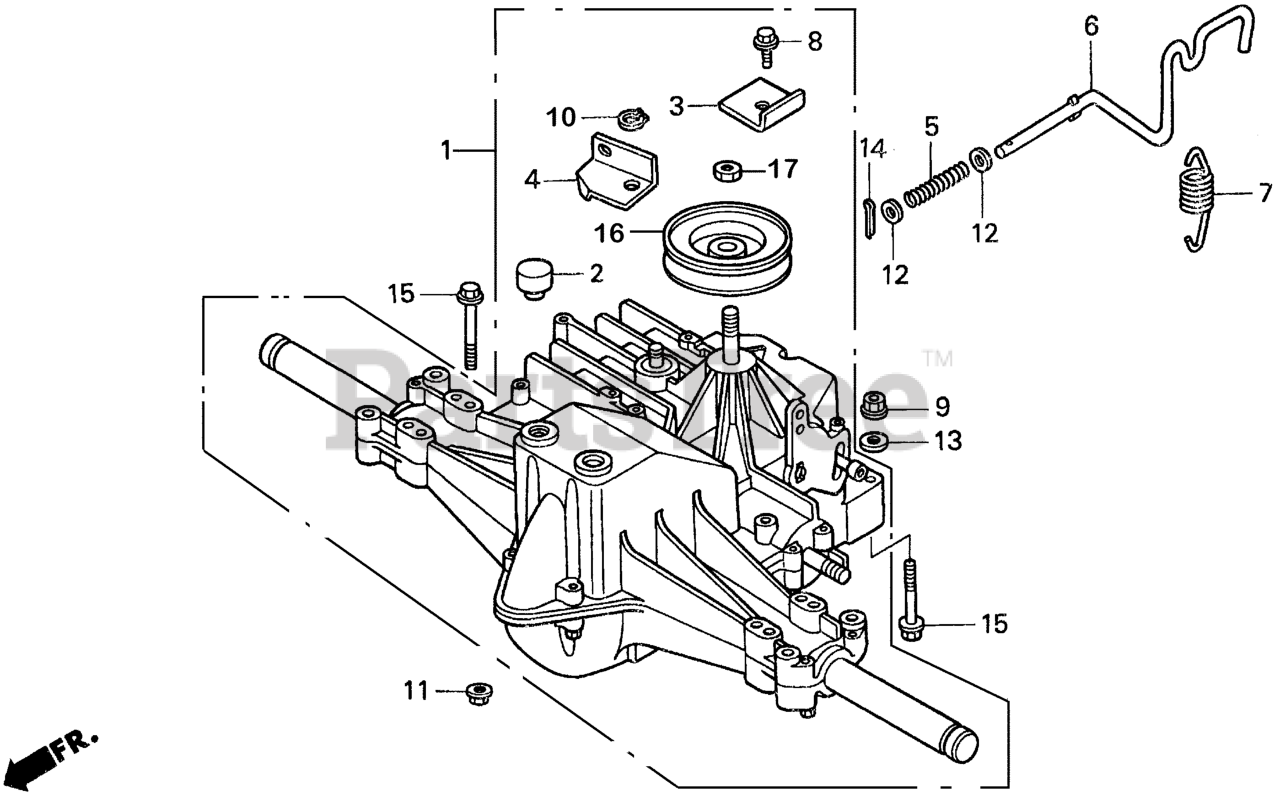

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

NI

Honda 06434-772-700

CONTROL ARM KIT (REPAIR KIT FOR BROKEN SPEED

Note: (Optional)

$53.99

$

Usually ships in 3-6 days

0

1

Honda 20001-772-700

TRANSMISSION ASSY.

$1446.99

$

Usually ships in 3-6 days

0

2

Honda 21260-772-701

BREATHER ASSY.

$

$

Not available

3

Honda 43412-772-701

STOPPER, BRAKE ARM

$6.49

$

Usually ships in 3-6 days

0

4

Honda 46921-772-701

PLATE, NEUTRAL VALVE (BYPASS)

$

$

Currently unavailable

5

Honda 46923-772-700

SPRING, NEUTRAL VALVE LEVER

$0.99

$

Usually ships in 3-6 days

0

6

Honda 46924-772-700

LEVER, NEUTRAL VALVE

$11.99

$

Usually ships in 3-6 days

0

7

Honda 46925-772-700

SPRING, NEUTRAL VALVE RETURN

$2.49

$

Usually ships in 3-6 days

0

8

Honda 90112-772-701

SCREW (1/4-20X1/2)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 90309-GE2-000

NUT, FLANGE (8MM)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90659-772-701

RING, RETAINING

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

12

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

13

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

14

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, COTTER (2.5MM) (Honda Code 0156091).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95701-08060-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526).

$3.49

$

In Stock, only 1 left!

0

16

Honda 76225-772-701

SEE PART DETAILS - PRI; PULLEY, TRANSMISSION

$50.99

$

In Stock, only 1 left!

0

17

Honda 90309-772-701

NUT, HEX. (1/2-20UNF)

$1.99

$

Usually ships in 3-6 days

0
