H1011 H SA (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) CHANGE LEVER (2) Parts Diagram

Riding Mower, Made in USA

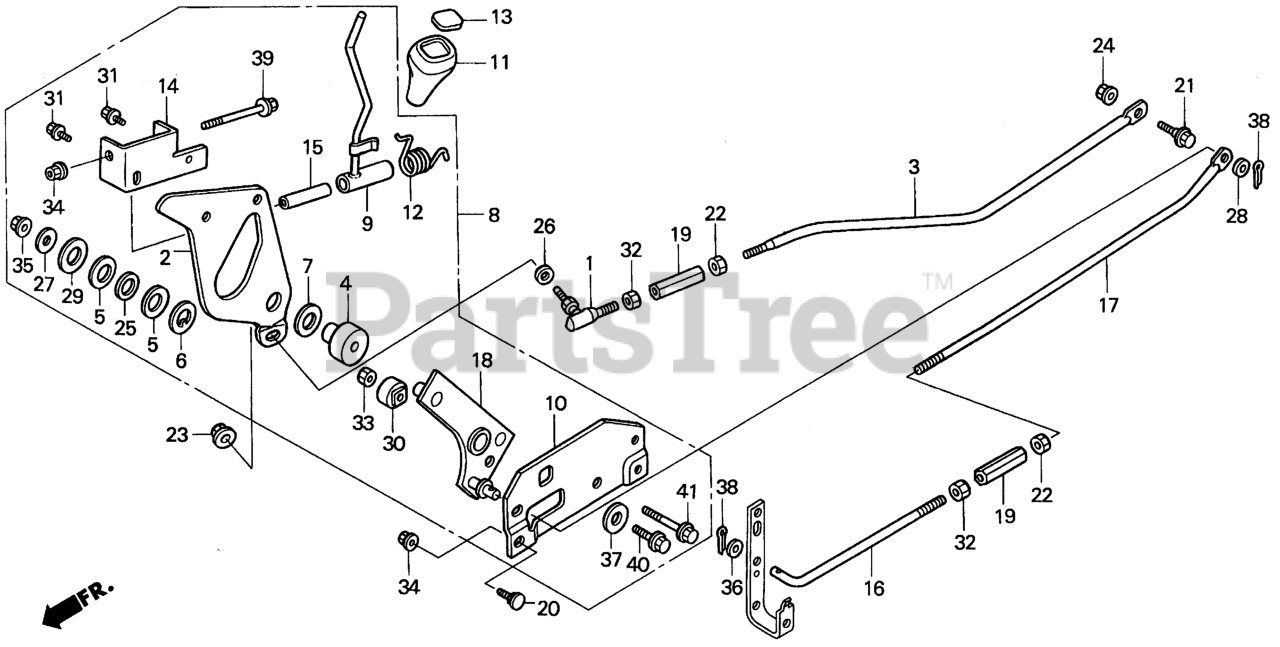

CHANGE LEVER (2) Parts Diagram

  • Title

1

Honda 24125-772-700

JOINT, R. BALL

$

$

Not available

2

Honda 24361-772-700

SEE PART DETAILS - PRI; ARM, CHANGE

$16.99

$

Usually ships in 3-6 days

0

3

Honda 24363-772-700

SEE PART DETAILS - PRI; ROD, GEARSHIFT

$7.49

$

Usually ships in 3-6 days

0

4

Honda 24366-772-700

SHAFT, CHANGE ARM

$9.49

$

Usually ships in 3-6 days

0

5

Honda 24372-772-700

SPRING, FRICTION

$25.99

$

Usually ships in 3-6 days

0

6

Honda 24376-772-701

SEE PART DETAILS - PRI; WASHER, FRICTION SETTING

$

$

Not available

7

Honda 24379-772-701

WASHER, FRICTION

$31.99

$

Usually ships in 3-6 days

0

8

Honda 24400-772-700

LEVER ASSY., CHANGE (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 24410-772-700

LEVER, CHANGE

$38.99

$

Usually ships in 3-6 days

0

10

Honda 24413-772-700

HOLDER, CHANGE LEVER (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 24415-767-000

GRIP, CHANGE LEVER

$21.99

$

Usually ships in 3-6 days

0

12

Honda 24416-772-000

SPRING, CHANGE LEVER

$9.49

$

Usually ships in 3-6 days

0

13

Honda 24417-767-000

KNOB, CHANGE LEVER GRIP

$6.49

$

Usually ships in 3-6 days

0

14

Honda 24427-772-700

BRACKET, CHANGE LEVER

$2.99

$

Usually ships in 3-6 days

0

15

Honda 24429-763-D00

COLLAR, CHANGE LEVER JOINT

$7.99

$

Usually ships in 3-6 days

0

16

Honda 46571-772-700

ROD, RETURN (A)

$8.49

$

Usually ships in 3-6 days

0

17

Honda 46572-772-700

ROD, RETURN (B)

$8.99

$

Usually ships in 3-6 days

0

18

Honda 46576-772-700

ARM A, RETURN

$68.99

$

Usually ships in 3-6 days

0

19

Honda 47268-772-700

JOINT (12MM)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 90101-750-920

BOLT, SPECIAL (8X20)

$3.49

$

In Stock, only 1 left!

0

21

Honda 90105-VA5-000

BOLT, ADJUSTING CENTER

$6.99

$

In Stock, only 3 left!

0

22

Honda 90301-752-000

NUT, L. HEX. (12MM)

$

$

Not available

23

Honda 90308-772-701

SEE PART DETAILS - PRI; NUT, FLANGE (5/16-24UNF)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90309-GE2-000

NUT, FLANGE (8MM)

$5.49

$

Usually ships in 3-6 days

0

25

Honda 90401-KW7-900

WASHER, THRUST (26MM)

$5.99

$

Usually ships in 3-6 days

0

26

Honda 90402-822-000

WASHER, HEAD (8MM) (Honda Code 0122101).

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90502-GV4-900

WASHER (12.5X33)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90505-116-670

WASHER (13X20)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90506-772-700

WASHER, SPRING SETTING

$2.99

$

Usually ships in 3-6 days

0

30

Honda 91557-772-700

BUSH (12.1X23X20)

$17.99

$

Usually ships in 3-6 days

0

31

Honda 93404-08016-08

SEE PART DETAILS - PRI; BOLT-WASHER (8X16)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 94001-12000-0S

SEE PART DETAILS - PRI; NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

33

Honda 94030-12000

NUT, HEX. (12MM)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

35

Honda 94050-12000

NUT, FLANGE (12MM)

$1.49

$

In Stock, only 3 left!

0

36

Honda 94101-12800

WASHER, PLAIN (12MM)

$1.99

$

In Stock, only 2 left!

0

37

Honda 94103-12800

WASHER, PLAIN (12MM)

$1.99

$

Usually ships in 3-6 days

0

38

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 20+

0

38

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 20+

0

39

Honda 95701-08080-08

BOLT, FLANGE (8X80)

$3.99

$

Usually ships in 3-6 days

0

40

Honda 95701-12025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (12X25)

$4.99

$

Usually ships in 3-6 days

0

41

Honda 95701-12060-08

BOLT, FLANGE (12X60)

$4.49

$

Usually ships in 3-6 days

0
