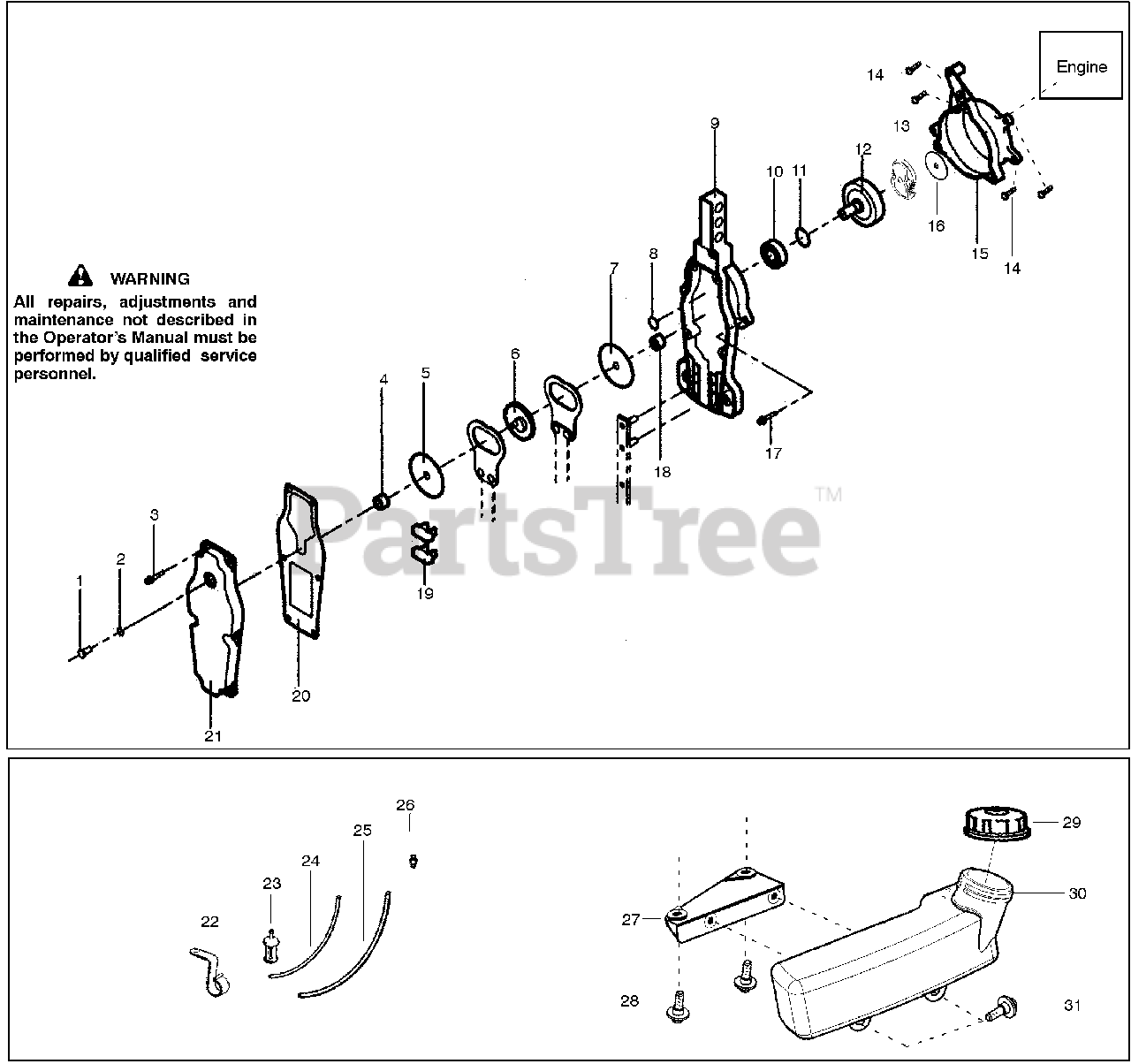

H HT 25 - Electrolux/AYP Hedge Trimmer (2008-06) Fuel Tank Parts Diagram

Hedge Trimmer

Fuel Tank Parts Diagram

  • Title

1

Electrolux/AYP 530016423

Plug-Grease

$2.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 214B0700

O-ring
(Superseded to 545145448)

$3.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 545145422

Socket Screw Flange

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 545145440

Bushing

$

$

Not available

5

Electrolux/AYP 11050-176

Fixing Plate

$

$

Not available

6

Electrolux/AYP 545145441

Gear

$

$

Not available

7

Electrolux/AYP 11050-176

Fixing Plate

$

$

Not available

8

Electrolux/AYP 545145431

C-Snapring for Shaft

$2.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 51068-108

Cam Case

$85.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 545145432

Bearing

$

$

Not available

11

Electrolux/AYP 545145430

C-Snapring for Hole

$2.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 11014-222

Clutch Drum C.P.
(Superseded to 502744301)

$60.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530071803

Kit-Clutch Assy.
(Superseded to 530057740)

$24.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

15

Electrolux/AYP 51070-131

Engine Base

$

$

Not available

16

Electrolux/AYP 530015611

Washer-Clutch

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 545145423

Socket Screw Flange

$2.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 545145440

Bushing

$

$

Not available

19

Electrolux/AYP 545145433

Felt Packing

$4.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 545145434

Packing

$

$

Not available

21

Electrolux/AYP 51069-105

Cam Case Cover

$

$

Not available

22

Electrolux/AYP 530016438

Clip-Wire

$

$

Not available

23

Electrolux/AYP 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 530069247

Kit-Fuel Line (small)

$7.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 530069216

Kit-Fuel Line(large)

$11.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 530023877

Fitting-Fuel Line

$5.99

$

In Stock, Qty 18

0

27

Electrolux/AYP 530057738

Bracket-Tank

$

$

Not available

28

Electrolux/AYP 530016431

Screw-Retainer

$

$

Not available

29

Electrolux/AYP 530049386

Assy-Fuel Cap
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 545104302

Assy-Fuel Tank

Note: (Incl. 23-26, 29)

$

$

Not available

31

Electrolux/AYP 530016379

Screw-Retainer

$4.99

$

Usually ships in 3-10 days

0
