H 924RX (1695513) - Snapper 24" Snow Thrower, 9hp (2009) Shift Group Parts Diagram

24" Snow Thrower, 9hp

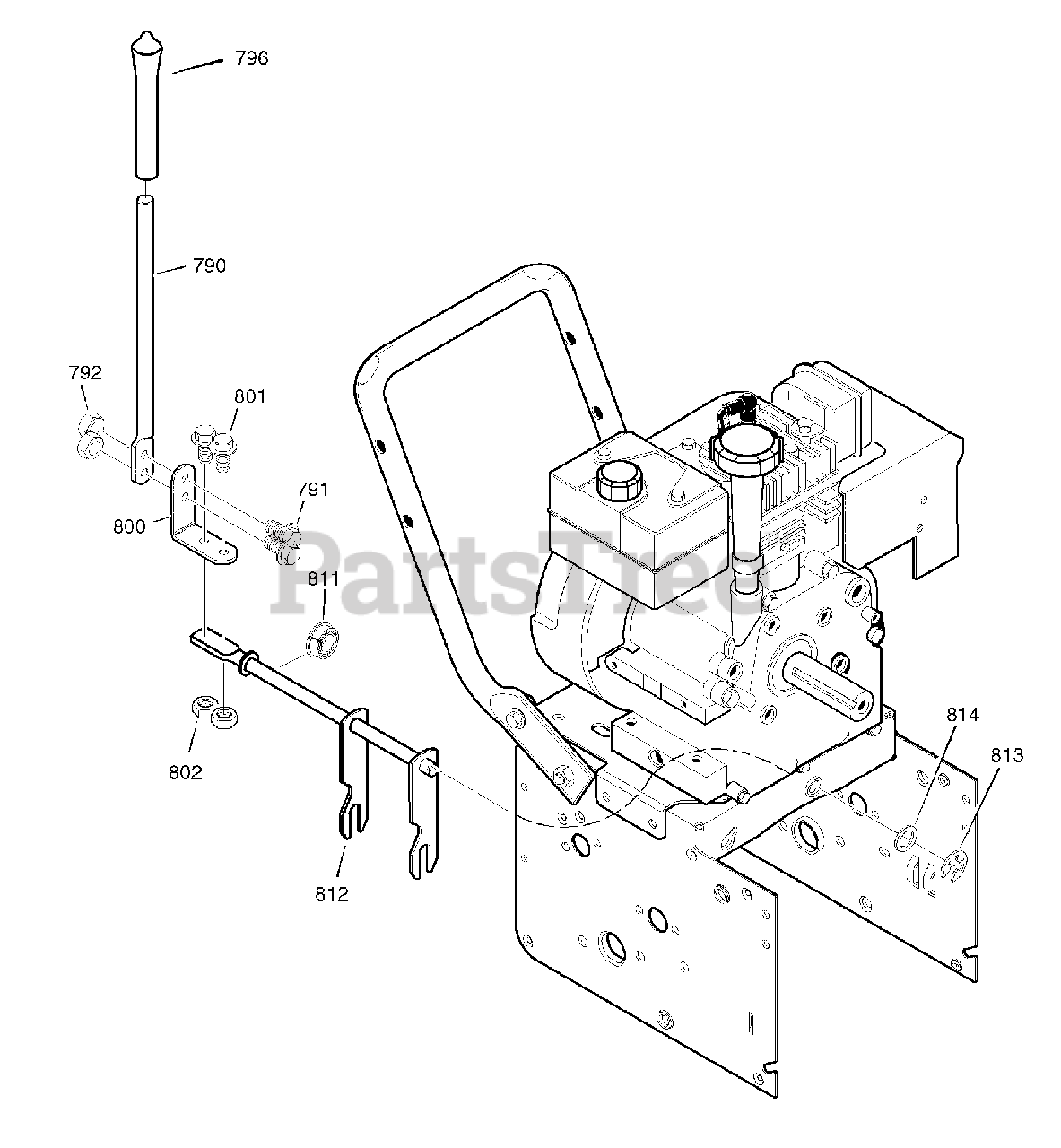

Shift Group Parts Diagram

  • Title
790

Snapper 1740946A

ROD, SHIFT
(Superseded to 1740946HMA)

$12.99

$

Usually ships in 2-12 days

0

791

Snapper 723010

SCREW, 1/4-20X.75
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

792

Snapper 725429

NUT, 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

796

Snapper 723604

KNOB, SLIP
(Superseded to 331624MA)

$5.99

$

In Stock, only 1 left!

0

800

Snapper 725568

LEVER, SPRING
(Superseded to 760564MA)

$9.99

$

Usually ships in 2-12 days

0

801

Snapper 723010

SCREW, 1/4-20X.75
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

802

Snapper 725429

NUT, 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

811

Snapper 724636

BEARING, FLANGED
(Superseded to 579944MA)

$15.99

$

Usually ships in 2-12 days

0

812

Snapper 722078

ROD ASSY., SPEED SELECT
(Superseded to 1501085YZMA)

$40.99

$

Usually ships in 2-12 days

0

813

Snapper 721910

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 12

0

814

Snapper 724619

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0
