H 924RX (1695513) - Snapper 24" Snow Thrower, 9hp (2009) Handle Assembly Group Parts Diagram

24" Snow Thrower, 9hp

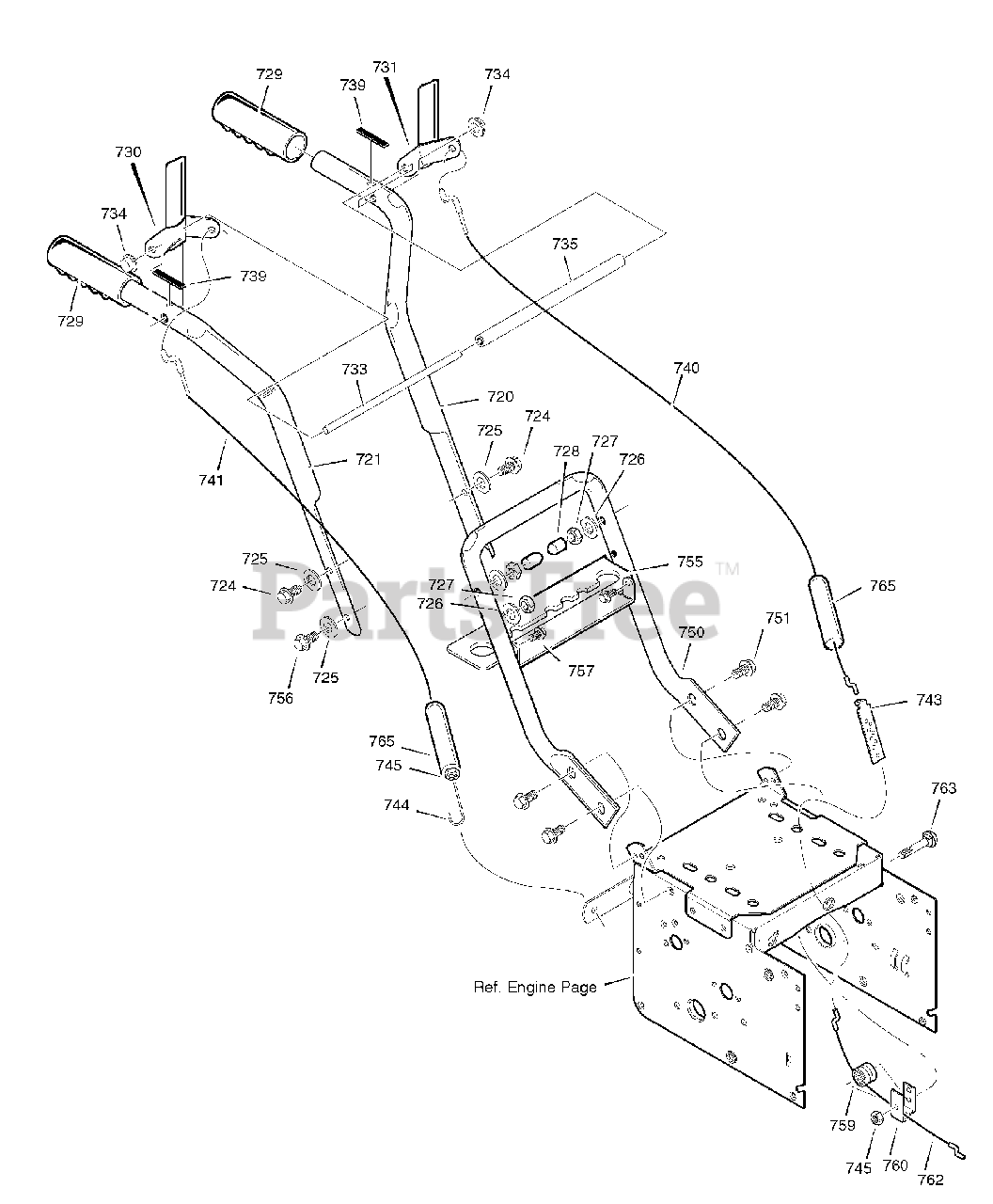

Handle Assembly Group Parts Diagram

  • Title
720

Snapper 1740587A

HANDLE, UPPER LH
(Superseded to 1740587ASM)

$76.99

$

Usually ships in 2-12 days

0

721

Snapper 1740573A

HANDLE, UPPER RH
(Superseded to 1740573ASM)

$58.99

$

Usually ships in 2-12 days

0

724

Snapper 728757

SCREW, 5/16-18 x 2.75
(Superseded to 7090831YP)

$3.49

$

Usually ships in 2-12 days

0

725

Snapper 725331

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

726

Snapper 725326

WASHER, SPTLK .31X.58X.08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

727

Snapper 722399

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Snapper 721906

STOP, RED PLASTIC
(Superseded to 11261MA)

$4.49

$

Usually ships in 2-12 days

0

729

Snapper 723707

GRIP, HANDLE FINGER
(Superseded to 337399MA)

$5.49

$

Usually ships in 2-12 days

0

730

Snapper 1740700A

LEVER, ASSY CLUTCH DRIVE RH
(Superseded to 1740700AYP)

$39.99

$

Usually ships in 2-12 days

0

731

Snapper 1740699A

LEVER, ASSY CLUTCH DRIVE LH
(Superseded to 1740699AYP)

$39.99

$

In Stock, only 1 left!

0

733

Snapper 723706

ROD, PIVOT CLUTCH
(Superseded to 337381MA)

$50.99

$

In Stock, only 1 left!

0

734

Snapper 725624

NUT, PUSH ON CAP
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

735

Snapper 723703

SPACER, HANDLE
(Superseded to 337373MA)

$8.49

$

Usually ships in 2-12 days

0

739

Snapper 723949

BUMPER, RECTANGLE
(Superseded to 4049MA)

$

$

Not available

740

Snapper 722096

CABLE, CLUTCH 28.44L
(Superseded to 1501123MA)

$12.99

$

In Stock, Qty 20+

0

741

Snapper 725684

CABLE, AUGER CLUTCH
(Superseded to 761872MA)

$15.99

$

In Stock, Qty 9

0

743

Snapper 723259

BRACKET, CABLE ADJUSTER
(Superseded to 313441MA)

$

$

Not available

744

Snapper 722520

SPRING, AUGER CLUTCH
(Superseded to 1673MA)

$8.99

$

In Stock, Qty 12

0

745

Snapper 722400

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

750

Snapper 1740701A

HANDLE, LOWER
(Superseded to 1740701ASM)

$140.99

$

Usually ships in 2-12 days

0

751

Snapper 722839

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

Snapper 1740698A

BRKT, GEAR SELECTOR
(Superseded to 1740698ASM)

$19.99

$

Usually ships in 2-12 days

0

756

Snapper 727586

SCREW, 5/16-18 x 2.00
(Superseded to 6751MA)

$

$

Not available

757

Snapper 723210

SCREW, 1/4-20 X 0.63
(Superseded to 310169MA)

$4.49

$

In Stock, Qty 5

0

759

Snapper 724621

SPOOL-CABLE, AUGER CLUTCH
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

760

Snapper 722070

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Snapper 722095

CABLE, LOWER DRIVE 12"
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 18

0

763

Snapper 727757

BOLT, HEX 1/4-20 X 1.50 YZ
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

765

Snapper 723154

BOOT, CLUTCH SPRING
(Superseded to 308146MA)

$6.49

$

In Stock, only 2 left!

0
