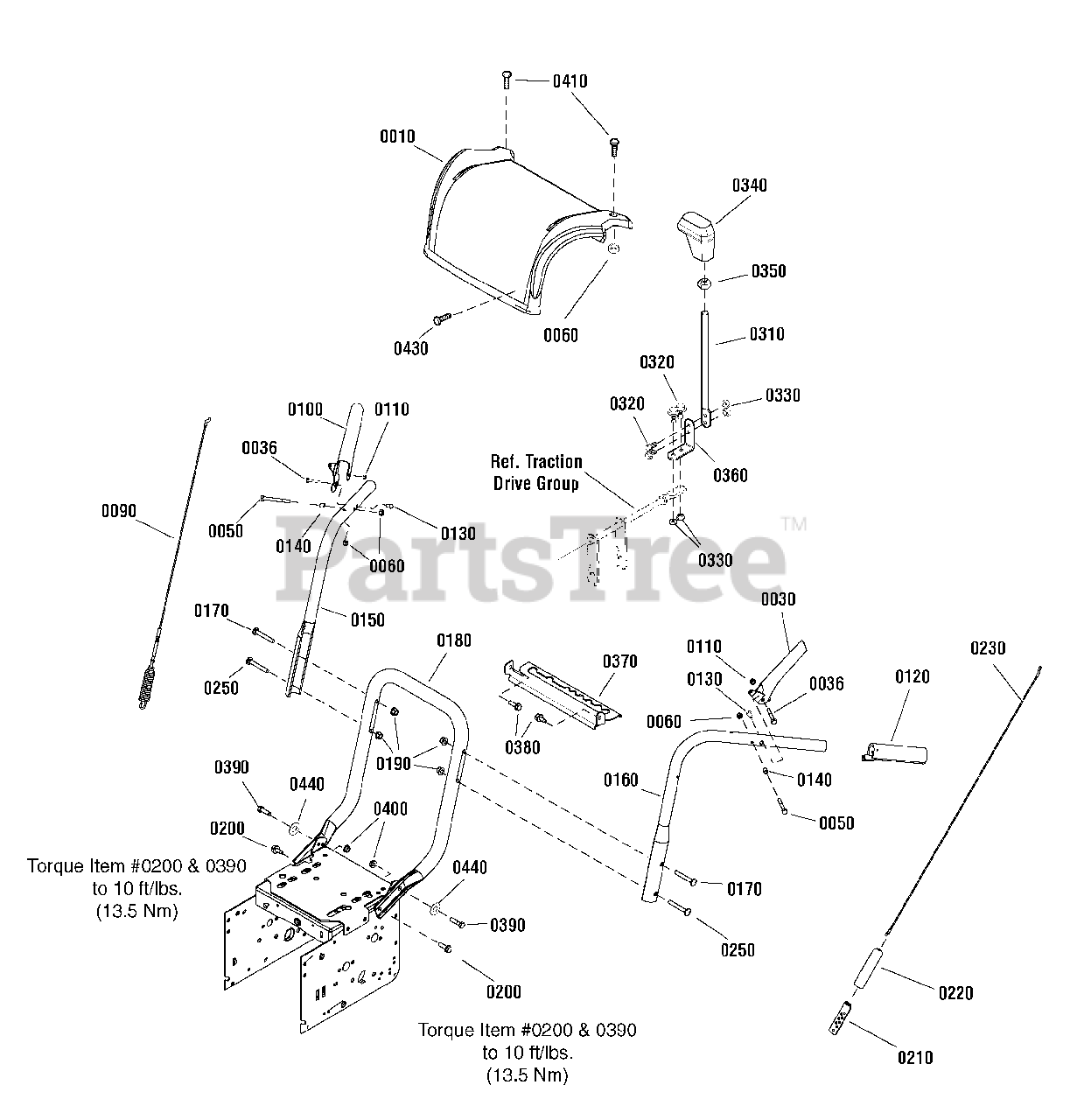

H 924 RX (1695840) - Simplicity 24" Snow Thrower, 9hp Handles & Controls Group - No Light Parts Diagram

24" Snow Thrower, 9hp

Handles & Controls Group - No Light Parts Diagram

  • Title

0010

Simplicity 1738089C

PANEL,Dash
(Superseded to 1738089BIYP)

$55.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1739782A

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0036

Simplicity 1750554

BOLT, Shoulder, 10-24
(Superseded to 1750554YP)

$4.99

$

In Stock, only 1 left!

0

0050

Simplicity 1921962

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 1732471

CABLE & SPRING ASSEMBLY, RH
(Superseded to 1732471SM)

$

$

Not available

0100

Simplicity 1739783A

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0110

Simplicity 1933896

NUT, Hex Nylon Insert Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0120

Simplicity 1726317

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

0130

Simplicity 1736542

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1678392

SPACER, 1/4 ID x 3/8 OD
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1734587A

HANDLE, Upper, RH
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1734586A

HANDLE, Upper, LH
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

0170

Simplicity 1960273

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0180

Simplicity 1737759A

HANDLE, Lower
(Superseded to 1737759AYP)

$176.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0200

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 723259

BRACKET, Cable Adjusting
(Superseded to 313441MA)

$

$

Not available

0220

Simplicity 723154

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

Usually ships in 2-12 days

0

0230

Simplicity 727331

CABLE, Front Drive
(Superseded to 1502113MA)

$22.99

$

In Stock, Qty 20+

0

0250

Simplicity 1931338

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0310

Simplicity 729138A

ROD, Shift
(Superseded to 581631E701MA)

$12.99

$

Usually ships in 2-12 days

0

0320

Simplicity 723010

BOLT, Hex, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

0330

Simplicity 725429

NUT, Hex Centerlock, 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 10

0

0340

Simplicity 723074

GRIP, Lever
(Superseded to 304438MA)

$19.99

$

In Stock, only 1 left!

0

0350

Simplicity 723381

NUT, Hex Jam, 1/2-13
(Superseded to 318486MA)

$3.99

$

In Stock, only 1 left!

0

0360

Simplicity 725568

LEVER, Spring Shift
(Superseded to 760564MA)

$9.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1737760C

BRACKET, Gear Select

$

$

Not available

0380

Simplicity 1927429

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0390

Simplicity 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0410

Simplicity 1931320

BOLT, Carriage, Short Neck, 1/4-20 x 1-1/4, G5
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

0430

Simplicity 1960556

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4
(Superseded to 1960556SM)

$4.49

$

Usually ships in 2-12 days

0

0440

Simplicity 725331

WASHER, Flat, 11/32
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0
