H 824RX (1695851) - Snapper 24" Snow Thrower, 9hp Traction Drive Group Parts Diagram

24" Snow Thrower, 9hp

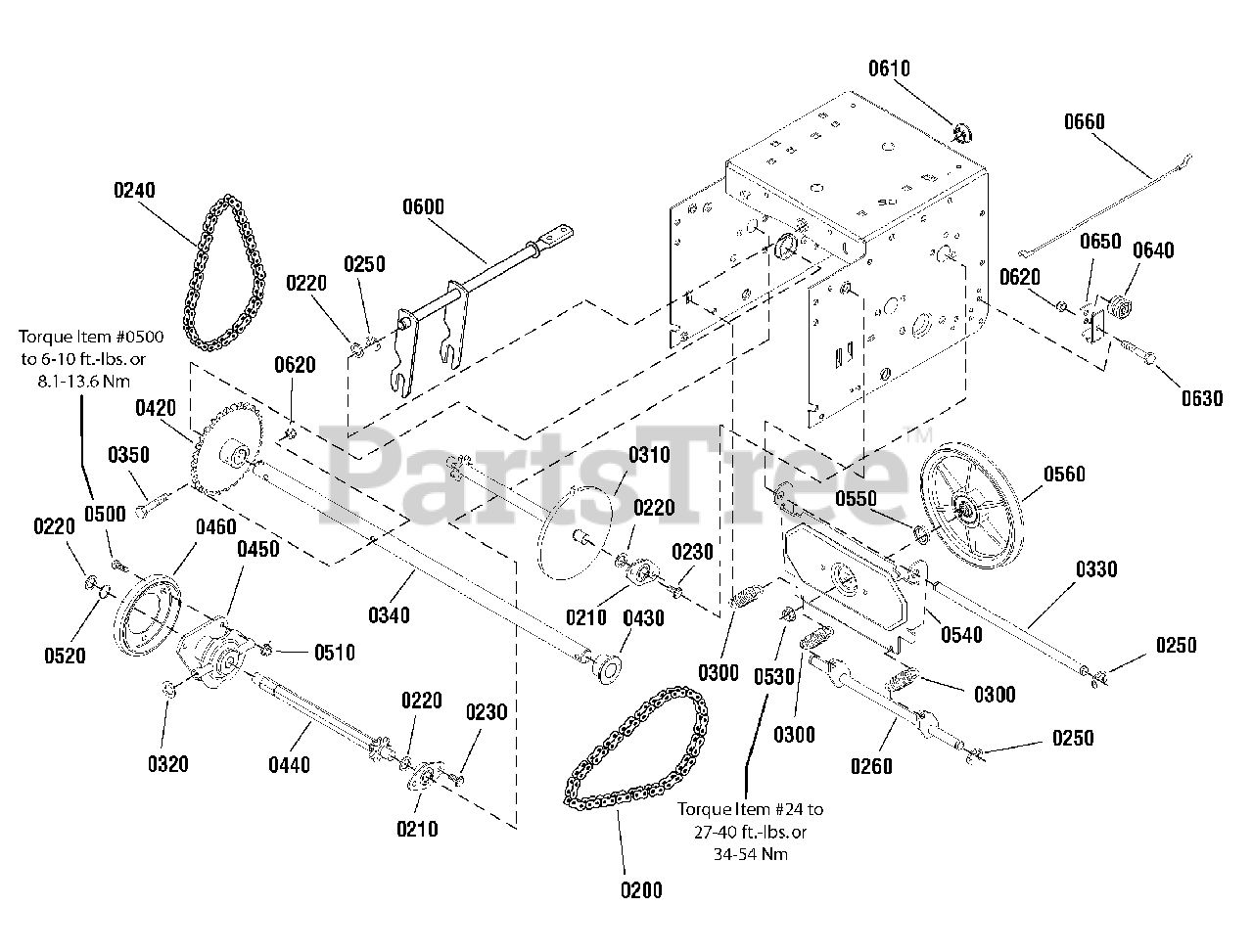

Traction Drive Group Parts Diagram

  • Title

0200

Snapper 724613

CHAIN, Roller, #420 x 19.00
(Superseded to 579851MA)

$21.99

$

In Stock, Qty 15

0

0210

Snapper 723655

BEARING AND RETAINER ASSEMBLY
(Superseded to 334163MA)

$11.99

$

In Stock, only 2 left!

0

0220

Snapper 724619

WASHER, Flat, 1/2
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

0230

Snapper 1924856

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0240

Snapper 724627

CHAIN, ROLLER #420 X 18.00 LG
(Superseded to 579868MA)

$20.99

$

In Stock, Qty 17

0

0250

Snapper 721910

RETAINER, Ring
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 11

0

0260

Snapper 722377

SPRING LINK ASSEMBLY
(Superseded to 1502105YZMA)

$33.99

$

Usually ships in 2-12 days

0

0300

Snapper 1736469

SPRING, Extension
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

0310

Snapper 722081

SPROCKET, Set
(Superseded to 1501237MA)

$80.99

$

In Stock, only 3 left!

0

0320

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0330

Snapper 722082

AXLE, Swing Plate
(Superseded to 703328)

$21.99

$

Usually ships in 2-12 days

0

0340

Snapper 722209

AXLE, 3/4 Dia. X 21-5/16
(Superseded to 1501562YZMA)

$59.99

$

Usually ships in 2-12 days

0

0350

Snapper 720220

SCREW, 1/4 - 20 x 1-3/4
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

0420

Snapper 722080

SPROCKET, Axle
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 7

0

0430

Snapper 722091

BEARING, AXLE
(Superseded to 1501114MA)

$11.99

$

In Stock, Qty 20+

0

0440

Snapper 722083

HEX SHAFT & SPROCKET ASSEMBLY
(Superseded to 1501100MA)

$

$

Not available

0450

Snapper 1739282

BEARING TRUNNION ASSEMBLY
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

0460

Snapper 722185

WHEEL, FRICTION DISC
(Superseded to 1501435MA)

$27.99

$

In Stock, Qty 20+

0

0500

Snapper 1921959

CAPSCREW, Hex Head 1/4-20 x 5/8 G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

0510

Snapper 1928372

NUT, Hex KEPS 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0520

Snapper 1733326

RING, Retaining Extension
(Superseded to 1733326SM)

$4.49

$

In Stock, only 1 left!

0

0530

Snapper 722391

NUT, FLANGE LOCK 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

0540

Snapper 722069

PLATE, Swinging
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

0550

Snapper 722110

SPACER, Friction Pulley
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

0560

Snapper 722092

FRICTION PULLY
(Superseded to 1501115MA)

$

$

Not available

0600

Snapper 722078

ASSEMBLY, Speed Selector
(Superseded to 1501085YZMA)

$40.99

$

Usually ships in 2-12 days

0

0610

Snapper 724636

BEARING, Flange
(Superseded to 579944MA)

$15.99

$

Usually ships in 2-12 days

0

0620

Snapper 1920397

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0630

Snapper 1922837

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0640

Snapper 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 7

0

0650

Snapper 722070

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

0660

Snapper 722095

CABLE, Front Drive Lower All
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 9

0
