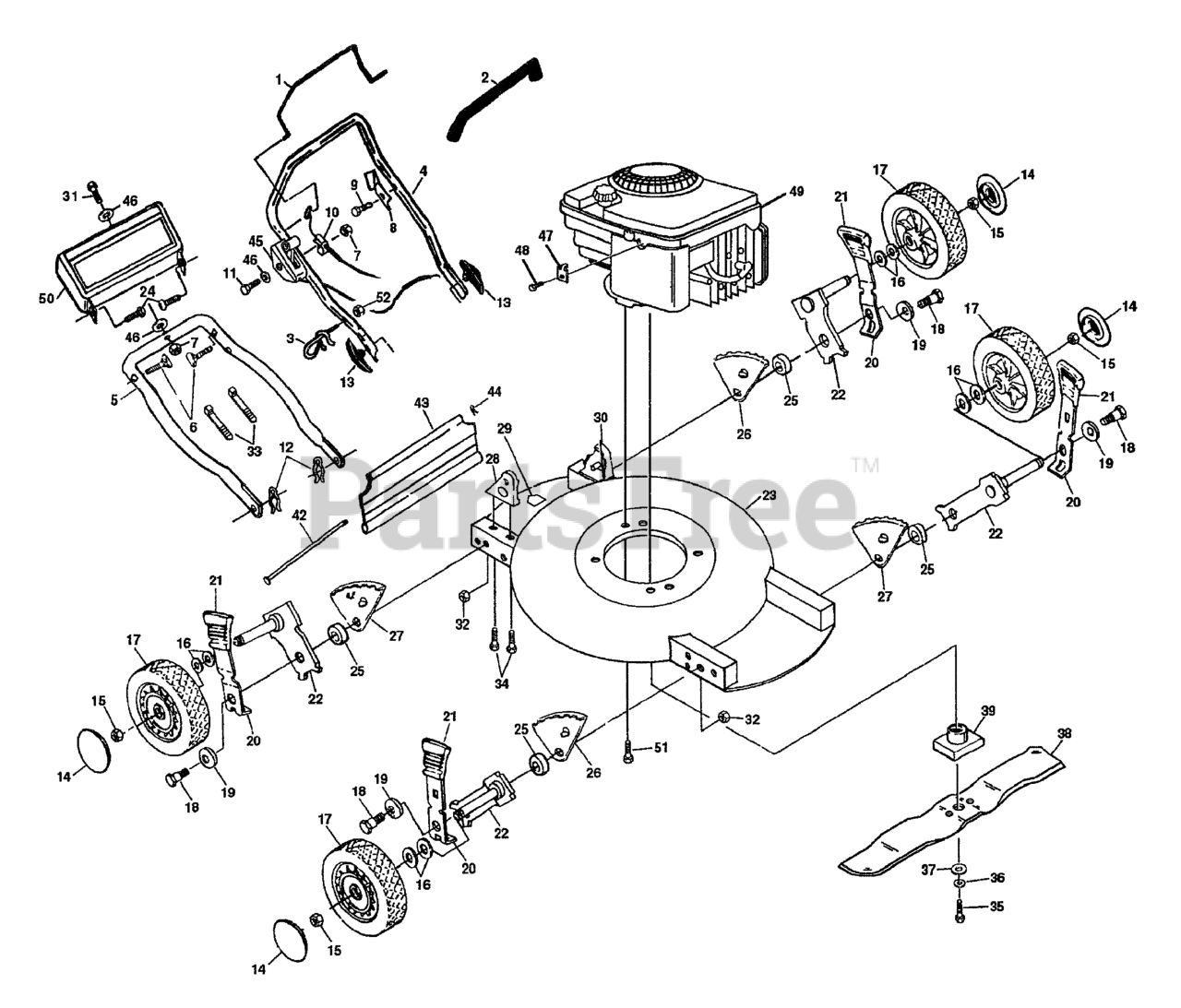

H 51 M (954056111) - Husqvarna Walk-Behind Mower (1992-08) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 532850758

Control Bar
(Superseded to 532850735)

$

$

Not available

2

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

3

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

4

Husqvarna 532125295

Upper Handle
(Superseded to 532166268)

$

$

Not available

5

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

6

Husqvarna 532131959

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

10

Husqvarna 532851671

Engine Zone Control Cable

$

$

Not available

11

Husqvarna 532085692

Pan Head Screw 1/4-20 x 2-1/8
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532063688

Handle Knob
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 532850845

Hubcap

$

$

Not available

15

Husqvarna 532083923

Hex Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532057143

Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

17

Husqvarna 532800333

Wheel & Tire Assembly 8.0 x 2.0
(Superseded to 532435276)

$

$

Not available

18

Husqvarna 532084921

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

19

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

22

Husqvarna 532125061

Axle Arm Assembly
(Superseded to 532800754)

$

$

Not available

23

Husqvarna 532700689

Lawn Mower Housing

Note: (Includes Key No. 29)

$267.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532036953

Screw

$

$

Not available

25

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 532800370

heel Adjusting Bracket (R.F./L.R.)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532800368

Wheel Adjusting Bracket (L.F/R.R.)

$

$

Not available

28

Husqvarna 532125449

Handle Bracket Assembly (Right)

$

$

Not available

29

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532125448

Handle Bracket Assembly (Left)

$

$

Not available

31

Husqvarna 532085436

Screw
(Superseded to 874760424)

$

$

Not available

32

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 14

0

37

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 1 left!

0

38

Husqvarna 532751646

20" Blade
(Superseded to 532700972)

$20.99

$

In Stock, only 1 left!

0

39

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

42

Husqvarna 532751649

Deflector Rod

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532751648

Rear Deflector
(Superseded to 532140544)

$

$

Not available

44

Husqvarna 532700279

Retainer Clip

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532700417

Throttle Control

$24.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532083816

Thread Rolling Screw #10-32 x 5/8

$6.49

$

Usually ships in 3-10 days

0

49

Engine - Briggs & Stratton, Model No. 124702

Note: This part must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

50

Husqvarna 532800547

Trim Plate

$

$

Not available

51

Husqvarna 532850998

Hex Head Screw, Self Tap. 3/8 - 16 x 1.1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873510400

Keps Locknut 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

Husqvarna 532700666

Owner's Manual (English)

$

$

Not available

Husqvarna 532700667

Owner's Manual (French)

$

$

Not available

Husqvarna 532800569

Decal (Engine)

$

$

Not available

Husqvarna 532801659

Decal (Housing)

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 532850788

Trim Plate Decal

$

$

Not available
