H 51 (954140045-A) - Husqvarna Walk-Behind Mower (1998-02) Rear Bagger Mower Parts Diagram

Walk-Behind Mower

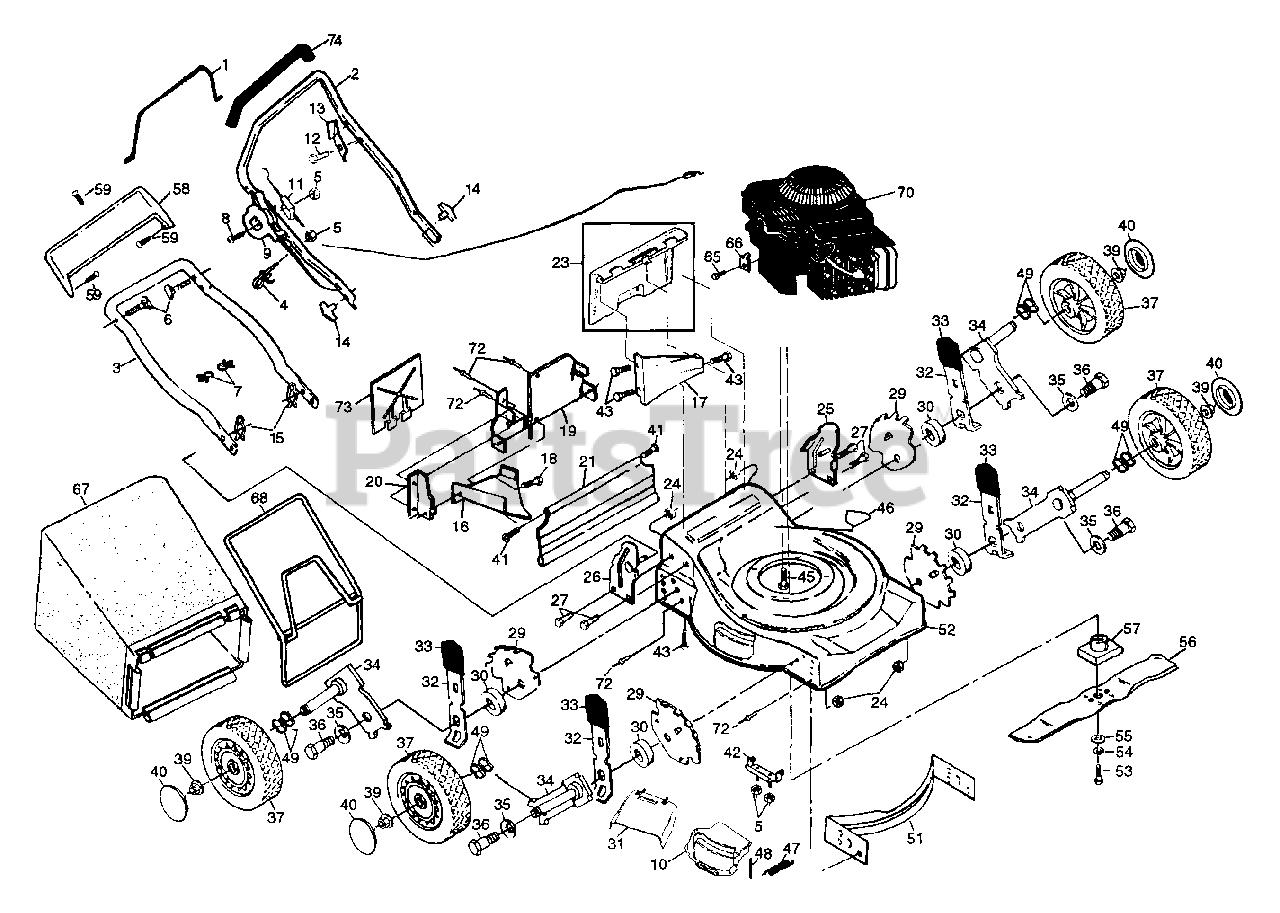

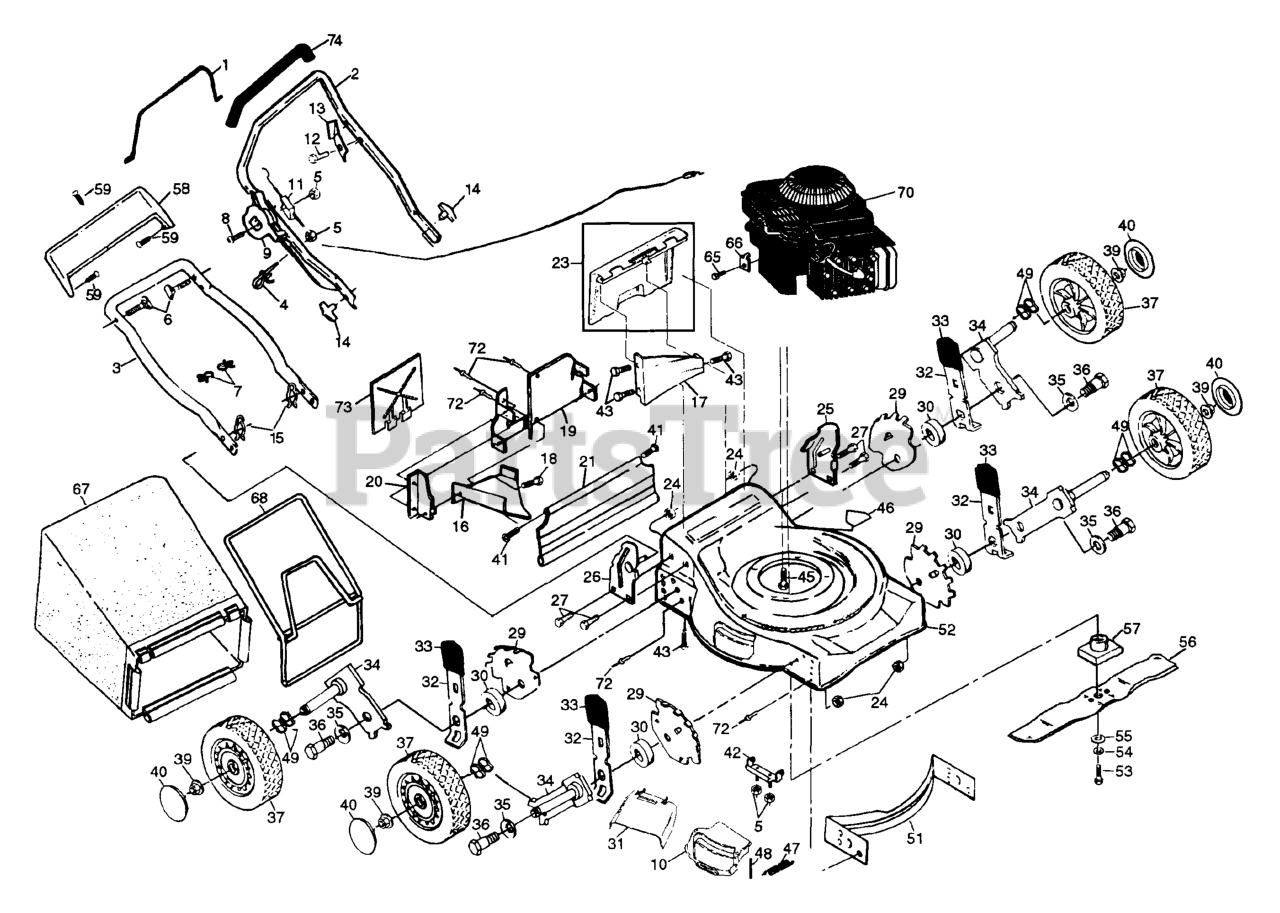

Rear Bagger Mower Parts Diagram

  • Title

1

Husqvarna 532850735

Control Bar

$

$

Not available

2

Husqvarna 532150041

Upper Handle
(Superseded to 532166268)

$

$

Not available

3

Husqvarna 532157082

Lower Handle
(Superseded to 532157081)

$

$

Not available

4

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532151517

Cable Clips
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532700417

Throttle Control

$24.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532150654

Combi-cut Door

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532130861

Engine Zone Control Cable

$

$

Not available

12

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

13

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

15

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532125378

Discharge Baffle
(Superseded to 532133188)

$

$

Not available

17

Husqvarna 532125035

Rear Baffle

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532150050

Hex Head Screw #10-24 x 1/2

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 532138865

Back Plate
(Superseded to 532700356)

$

$

Not available

20

Husqvarna 532138866

Side Baffle
(Superseded to 532700363)

$

$

Not available

21

Husqvarna 532140657

Rear Skirt
(Superseded to 532188984)

$

$

Not available

23

Husqvarna 532147613

Rear Door Assembly Kit

Note: (Incl. Ref. #58)

$

$

Not available

24

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532153030

Handle Bracket Assembly (Left)

$

$

Not available

26

Husqvarna 532153029

Handle Bracket Assembly (Right)

$

$

Not available

27

Husqvarna 532150078

Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532139901

Wheel Adjusting Bracket
(Superseded to 532750085)

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 532150653

Clip-on Discharge Guard
(Superseded to 532145285)

$

$

Not available

32

Husqvarna 532141730

Selector Spring
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 532701037

Selector Knob

$5.99

$

In Stock, only 4 left!

0

34

Husqvarna 532149857

Axle Arm Assembly
(Superseded to 532145935)

$

$

Not available

35

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

37

Husqvarna 532750550

Wheel Assembly

$34.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532083923

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532157008

Hubcap

$

$

Not available

41

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 532147775

Hinge Bracket

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532054583

Hex Tapping Screw 1/4-20 x 1/2

$

$

Not available

45

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532152186

Hinge Spring

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 9

0

49

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

51

Husqvarna 532144961

Front Baffle
(Superseded to 532170540)

$

$

Not available

52

Husqvarna 532154697

Housing Assembly

Note: (Incl. Ref. #46)

$

$

Not available

53

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Grd. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

Helical Lockwasher
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

56

Husqvarna 532145106

20" Blade

$20.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

58

Husqvarna 532157070

Trim Plate

$

$

Not available

59

Husqvarna 532701477

Push-in Fastener

$

$

Not available

65

Husqvarna 532083816

Screw #10 x 5/8

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532800386

Grass Bag
(Superseded to 532134048)

$

$

Not available

68

Husqvarna 532088614

Catcher Frame

$54.99

$

Usually ships in 3-10 days

0

70

Engine

Note: Briggs & Stratton, Model No. 12H802. These parts must be purchased through an authorized Briggs and Stratton dealer.

$

$

Not available

72

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532142167

Mulcher Plate
(Superseded to 532166650)

$17.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532155890

Handle Grip
(Superseded to 585161003)

$

$

Not available

Husqvarna 532157090

Combi-cut Decal

$

$

Not available

Husqvarna 532159298

Owners Manual (English/French)

$

$

Not available
