H 342 SG (960730008) - Husqvarna Grass Catcher (2006-12) Repair Parts Parts Diagram

Grass Catcher

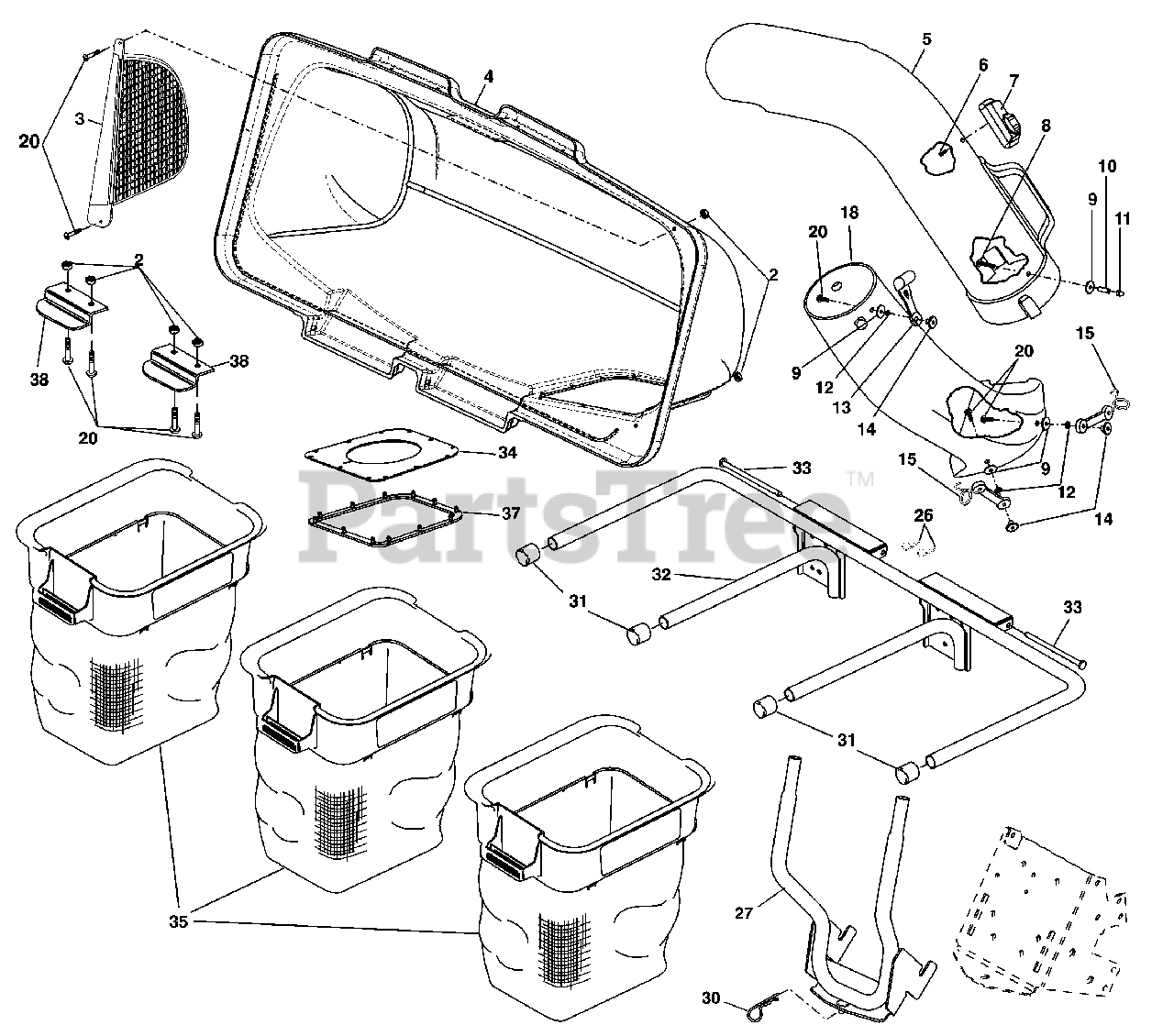

Repair Parts Parts Diagram

  • Title
2

Husqvarna 532069180

Nut, Crown lock #10-24

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532192709

Screen, Cover

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532195373

Cover Assembly

Note: Includes 34, 37

$278.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532414960

Chute, Upper

$91.99

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

Screw, Special #10-14x1/2

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532130933

Full Bag Indicator

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 532087175

Screw, #10-24 x 1-1/8
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

9

Husqvarna 819061216

Washer 3/16x3/4x16 Ga.

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532007206

Spacer, Split

$7.49

$

In Stock, Qty 6

0

11

Husqvarna 532060867

Nut, Acorn #10-24
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 810071000

Washer, lock

$4.99

$

In Stock, Qty 11

0

13

Husqvarna 532109808

Latch, Chute

$6.99

$

In Stock, Qty 14

0

14

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

532160793

Latch

$

$

Not available

18

Husqvarna 532162803

Chute, Lower
(Superseded to 592866501)

$106.99

$

In Stock, only 2 left!

0

20

Husqvarna 871161010

Screw #10-24 x 5/8
(Superseded to 871081010)

$3.99

$

In Stock, Qty 17

0

26

Husqvarna 532004939

Spring, Retainer
(Superseded to 532085902)

$

$

Not available

27

Husqvarna 532198128

Support Assembly

$133.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532165898

Spring, Retainer

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532174083

Plug, Tubing End

$7.49

$

In Stock, only 3 left!

0

32

Husqvarna 532176990

Bagger, Frame

$121.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532192786

Pin, Hinge

$17.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532192550

Gasket, Cover

$20.99

$

In Stock, Qty 7

0

35

$87.99

$

In Stock, only 2 left!

0

37

Husqvarna 532192603

Seal, Cover

$10.99

$

In Stock, Qty 7

0

38

Husqvarna 532130895

Latch Handle, Cover

$7.49

$

Usually ships in 3-10 days

0

Husqvarna 532411521

Owner's Manual, English/French

$

$

Currently unavailable

Husqvarna 532411522

Owner's Manual, Spanish

$

$

Currently unavailable
