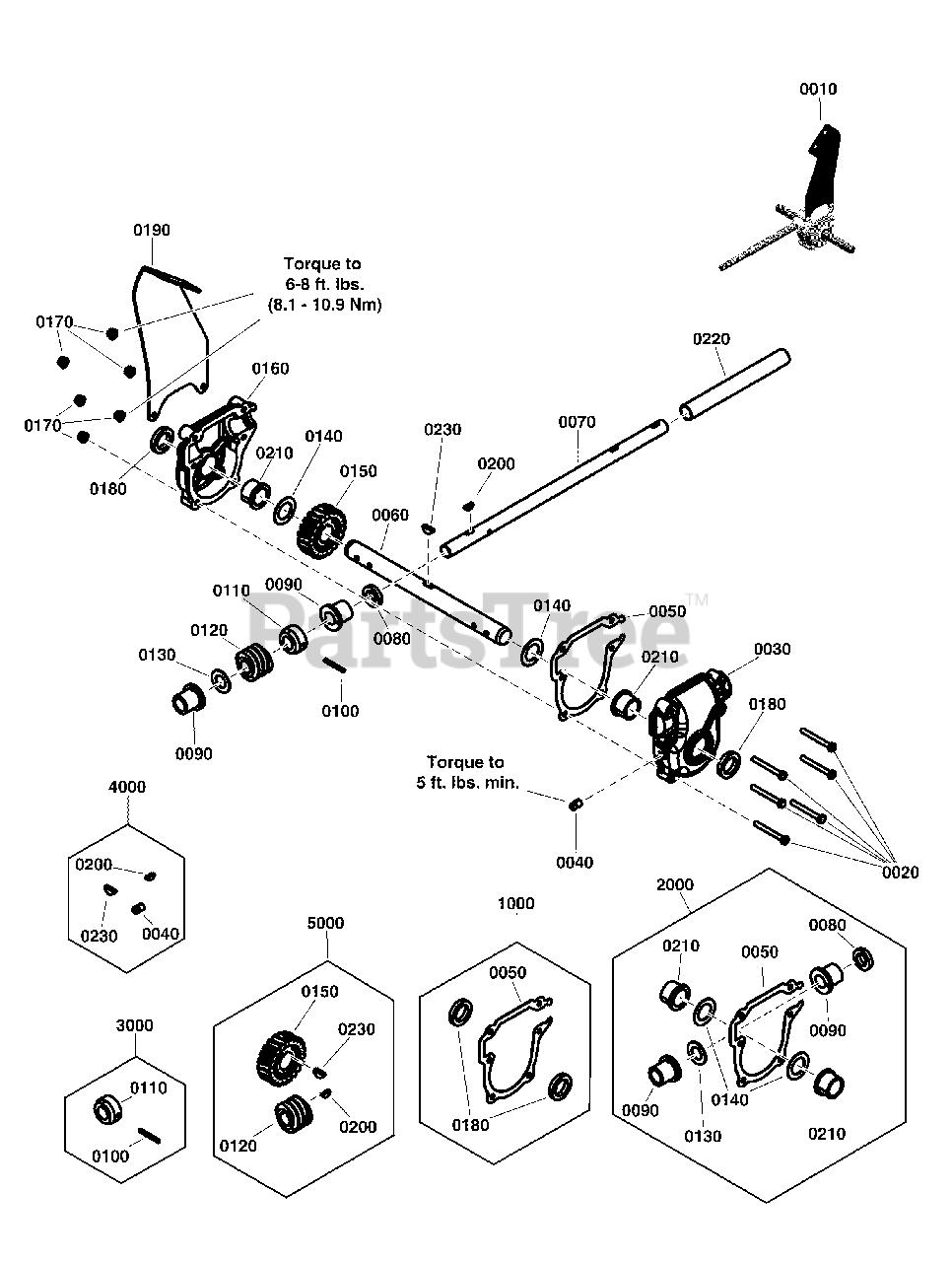

H 2132 E (1696922-00) - Simplicity 32" Snow Thrower, 21hp Auger Gearbox Group Parts Diagram

32" Snow Thrower, 21hp

Auger Gearbox Group Parts Diagram

  • Title

0010

Simplicity 772092

KIT, Gearbox

Note: (Includes Items 0020 - 0230)

$378.99

$

Usually ships in 2-12 days

0

0010

Simplicity 772093

KIT, Gearbox, PRO

Note: (Includes Items 0020 - 0230)

$378.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1960346

CAPSCREW, Hex Head,1/4-20 x 2-1/4
(Superseded to 1960346SM)

$4.99

$

Usually ships in 2-12 days

0

0030

GEAR CASE HALF, Left Hand

$

$

Not available

0060

SHAFT, Auger 1 x 12 1/4

$

$

Not available

0070

SHAFT, Impeller, 17.29" L, HD-ZMO

$

$

Not available

0070

SHAFT, Impeller, 18.10" L, PRO

$

$

Not available

0160

GEAR CASE HALF, Right Hand

$

$

Not available

0170

NUT, 1/4-20, HexFlanged Thread Lock, ZC/CL

$

$

Not available

0190

PLATE, Support

$

$

Not available

0220

TUBE, 9/10 OD 39/50 ID, 7-1/2 LG

$

$

Not available

1000

Simplicity 772164

KIT, Gasket & Seal

Note: (Includes Items 0050, 0060, 0180)

$27.99

$

Usually ships in 2-12 days

0

0050

GASKET, Gear Case

$

$

Not available

0060

SEAL, OiI

$

$

Not available

0180

SEAL, Oil

$

$

Not available

2000

Simplicity 772170

KIT, Auger Bushing

Note: (Includes Items 0050, 0090, 0130, 0140 & 0210)

$182.99

$

Usually ships in 2-12 days

0

0050

GASKET, Gear Case

$

$

Not available

0090

BUSHING, 3/4 x 1

$

$

Not available

0130

WASHER, Thrust .76 x 1 3/8

$

$

Not available

0140

WASHER, Thrust 1 x 1 5/8

$

$

Not available

0210

BUSHING, 1 x 1 1/4

$

$

Not available

3000

Simplicity 772218

KIT, Collar & Pin

Note: Includes Items 0100 & 0110)

$33.99

$

Usually ships in 2-12 days

0

0100

PIN, Drive Lock, 3/16 X 1-1/2

$

$

Not available

0110

COLLAR, Thrust 3/4 x 1 1/2

$

$

Not available

4000

Simplicity 772168

KIT, Plug & Key

Note: (Includes Items 0040, 0060 & 0230)

$3.99

$

Usually ships in 2-12 days

0

0040

FITTING, Pipe Plug

$

$

Not available

0200

KEY, 3/16 X 0.625, Woodruff

$

$

Not available

0230

KEY, .25X.75, Woodruff (91)

$

$

Not available

5000

Simplicity 772171

KIT, Gear

Note: (Includes Items 0050, 0120 & 0150)

$142.99

$

Usually ships in 2-12 days

0

0050

GASKET, Gear Case

$

$

Not available

0120

WORM, LH Rolled Steel

$

$

Not available

0150

GEAR, Worm, Steel

$

$

Not available
