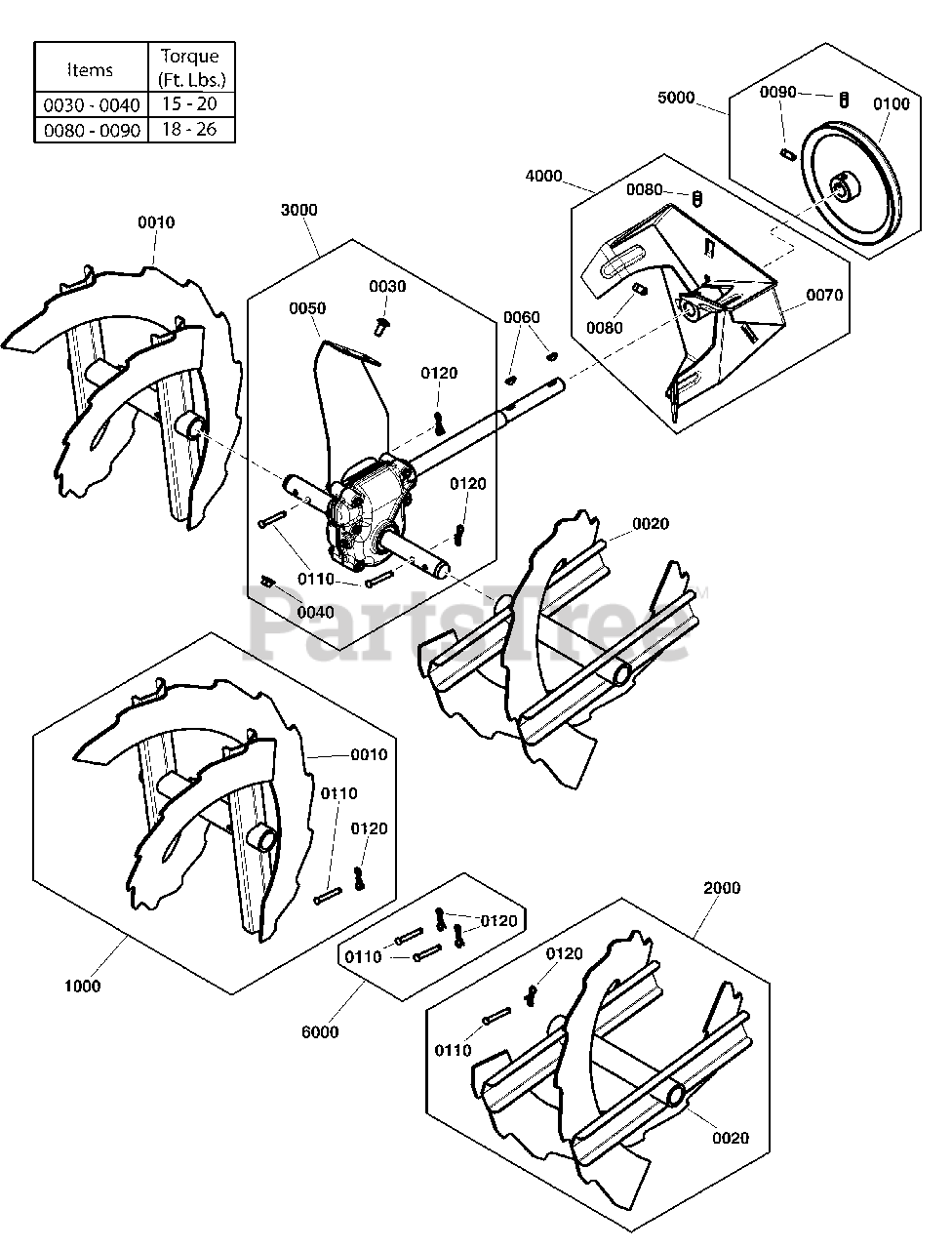

H 2132 E (1696922-00) - Simplicity 32" Snow Thrower, 21hp Auger Drive Group Parts Diagram

32" Snow Thrower, 21hp

Auger Drive Group Parts Diagram

  • Title

1000

Simplicity 772087

KIT, 32" Auger RH

Note: (Incl. Ref. Nos. 0010, 0010-20, 0110, 0120)

$304.99

$

Usually ships in 2-12 days

0

0010

WELDMENT, Auger, 32", RH, Black

$

$

Not available

0010-20

Simplicity 703907

FITTING, Grease, 1/4

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

0110

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Simplicity 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0

2000

Simplicity 772203

KIT, 24" Auger LH
(Superseded to 84003183)

Note: (Incl. Ref. Nos. 0020, 0010-20, 0110, 0120)

$162.99

$

Usually ships in 2-12 days

0

0020

WELDMENT, Auger, 32", LH, Black

$

$

Not available

0010-20

Simplicity 703907

FITTING, Grease, 1/4

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

0110

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Simplicity 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0

3000

Simplicity 772092

KIT, Gearbox

Note: (Incl. Ref. Nos. 0030, 0040, 0050, 0060)

$378.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703159

BOLT, Carriage, 5/16-18 x 5/8, G5

$3.99

$

In Stock, Qty 12

0

0040

Simplicity 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0050

GEARBOX ASSY, HD-ZMO

$

$

Not available

0060

Simplicity 703891

KEY, Woodruff, Plain, 3/16 x 5/8

$4.99

$

In Stock, Qty 18

0

4000

Simplicity 772090

KIT, Impeller

Note: (Incl. Ref. Nos. 0070, 0080, 0090)

$73.99

$

Usually ships in 2-12 days

0

0070

WELDMENT, Impeller, Black

$

$

Not available

0080

Simplicity 1960474SM

SETSCREW, Square Head, 3/8-16 x 1/2, G8

$5.99

$

In Stock, Qty 5

0

0090

Simplicity 1930540SM

SCREW, Set Square Head Cup Point, 5/16-18X 5/8, G8

$4.49

$

In Stock, Qty 10

0

5000

Simplicity 772105

KIT, Auger Pulley 7.25"

Note: (Incl. Ref. Nos. 0090, 0100)

$46.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1930540SM

SCREW, Set Square Head Cup Point, 5/16-18X 5/8, G8

$4.49

$

In Stock, Qty 10

0

0100

PULLEY, Impeller, 7.250 OD, HD

$

$

Not available

6000

Simplicity 1750790YP

SHEAR PIN KIT, 1038

Note: (Incl. Ref. Nos. 0110, 0120)

$5.99

$

In Stock, Qty 20+

0

0110

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Simplicity 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0
