H-212 (2029953) - Allis-Chalmers Garden Tractor, 12hp POWER LIFT GROUP - Diagram 2 Parts Diagram

Garden Tractor, 12hp

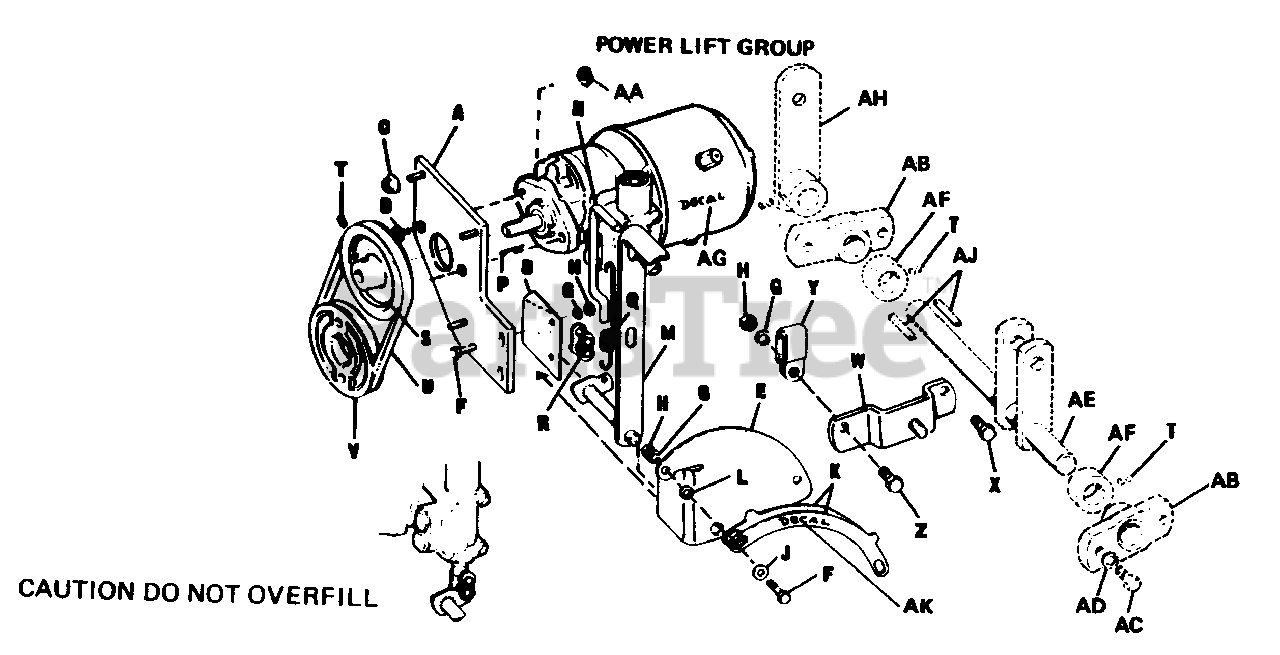

POWER LIFT GROUP - Diagram 2 Parts Diagram

  • Title

A

Simplicity 157587

Pump Support Assembly

$

$

Not available

B

Simplicity 157428

Angle Bracket

$

$

Not available

C

Simplicity 2718033

Hex. Nut, Whiz Lock, 5/16"-18

$

$

Not available

D

Simplicity 709002

Machine Screw, Flat Hd., 3/8"-16 x 1 1/4"

$7.49

$

Usually ships in 2-12 days

0

E

Simplicity 157199

Quadrant

$

$

Not available

F

Simplicity 2715057

Hex. Cap Screw, 1 /4"-20 x 3/4"

$

$

Not available

G

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

H

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

J

Simplicity 2719006

Plain Washer, 1 /4"

$

$

Not available

K

Simplicity 157204

Stop Plate

$

$

Not available

L

Simplicity 157205

Spacer

$

$

Not available

M

Simplicity 157200

Lever Assembly

$

$

Not available

N

Simplicity 157206

Latch Rod

$

$

Not available

P

Simplicity 2722016

Cotter Pin, 3/32" x 5/8"

$

$

Not available

Q

Simplicity 2157207SM

Spring

$15.99

$

Usually ships in 2-12 days

0

R

Simplicity 157208

Connecting Link

$

$

Not available

S

Simplicity 157430

Pumn Pulley

$

$

Not available

T

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16"

$

$

Not available

U

Simplicity 2157230SM

"V" Belt

$20.99

$

Usually ships in 2-12 days

0

V

Simplicity 157484

Drive Pulley

$

$

Not available

W

Simplicity 157233

Pivot Bar Assembly

$

$

Not available

X

Simplicity 2705007

Hex. Cap Screw, 5/16"-18 x 1 "

$

$

Not available

Y

Simplicity 157245

Hose Clamp

$

$

Not available

Z

Simplicity 2705021

Hex. Cap Screw, 1/4"-20 x 1"

$

$

Not available

AA

Simplicity 2718035

Nut, Whiz-Lock Flange, 3/8"-16

$

$

Not available

AB

Simplicity 157620

Lift Lever Bearing

$

$

Not available

AC

Simplicity 2705031

Hex. Cap Screw, 3/8"-16 x 7/8"

$

$

Not available

AD

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AE

Simplicity 157621

Lift Shaft Assembly

$

$

Not available

AF

Simplicity 2157624

Set Collar

$

$

Not available

AG

Simplicity 157242

Decal

$

$

Not available

AH

Simplicity 2157625SM

Front Lift Lever Assembly

$233.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 2157120SM

Key

$6.99

$

In Stock, only 1 left!

0

AK

Simplicity 157232

Film

$

$

Not available
