H-212 (2029953) - Allis-Chalmers Garden Tractor, 12hp 42" SNOW PLOW AND GRADER Parts Diagram

Garden Tractor, 12hp

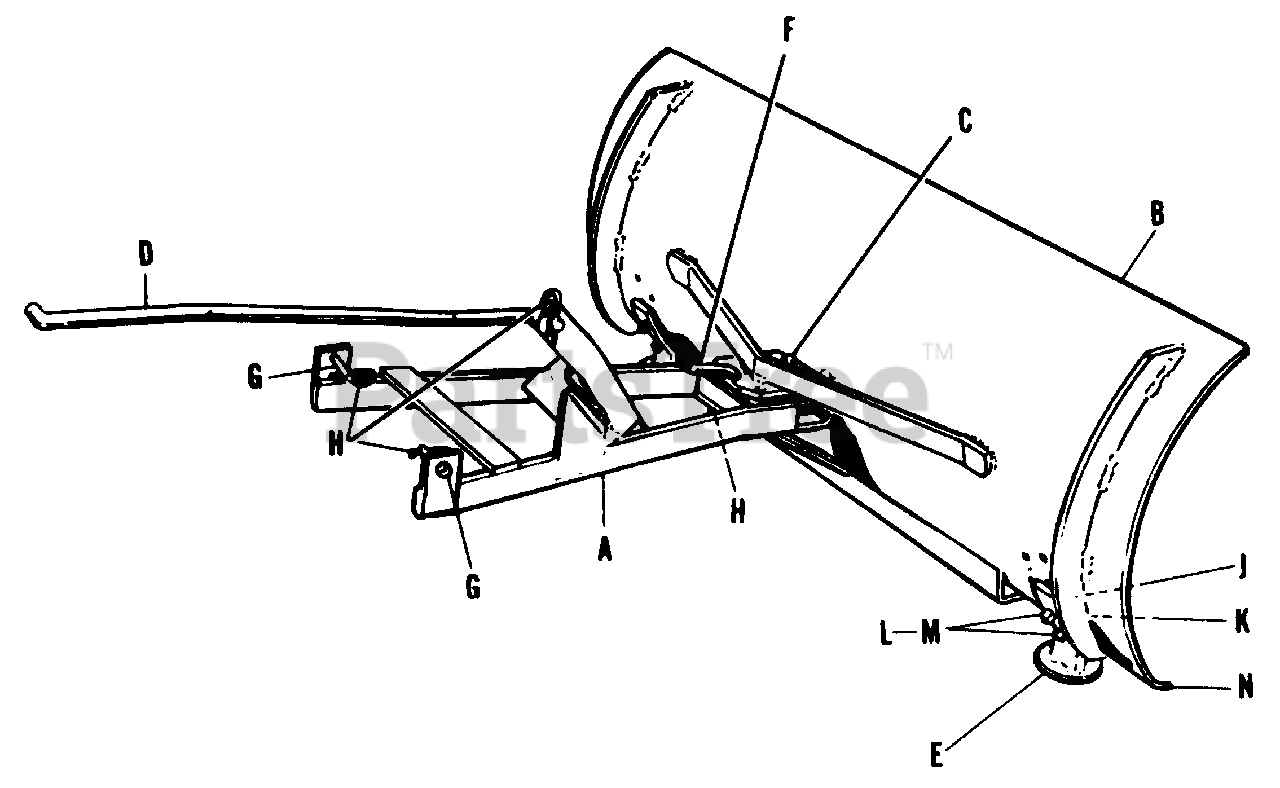

42" SNOW PLOW AND GRADER Parts Diagram

  • Title
A

Simplicity 107049

Push Bar Assembly

$

$

Not available

B

Simplicity 107047

Blade Assembly

$

$

Not available

C

Simplicity 1729275SM

Pin, King, 1/2" dia. x 2 1/2"

$18.99

$

Usually ships in 2-12 days

0

D

Simplicity 107143

Rod, Front Lift

$

$

Not available

E

Simplicity 2107024SM

Shoe Assembly

$

$

Not available

F

$13.99

$

Usually ships in 2-12 days

0

G

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

H

Simplicity 2106788

Clip, Spring

$

$

Not available

J

Simplicity 2702002

Bolt, Carriage, 3/8"-16 x 3/4"

$

$

Not available

K

Simplicity 2702003

Bolt, Carriage, 3/8"-16 x 3/4"

$

$

Not available

L

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

M

Simplicity 2717003

Nut, Hex. Full, 3/8"-16 N.C.

$

$

Not available

N

Simplicity 2107045

Plate, Wear

$

$

Not available
