H-212 (2029952) - Allis-Chalmers Garden Tractor, 12hp HYDROSTATIC COOLING GROUP Parts Diagram

Garden Tractor, 12hp

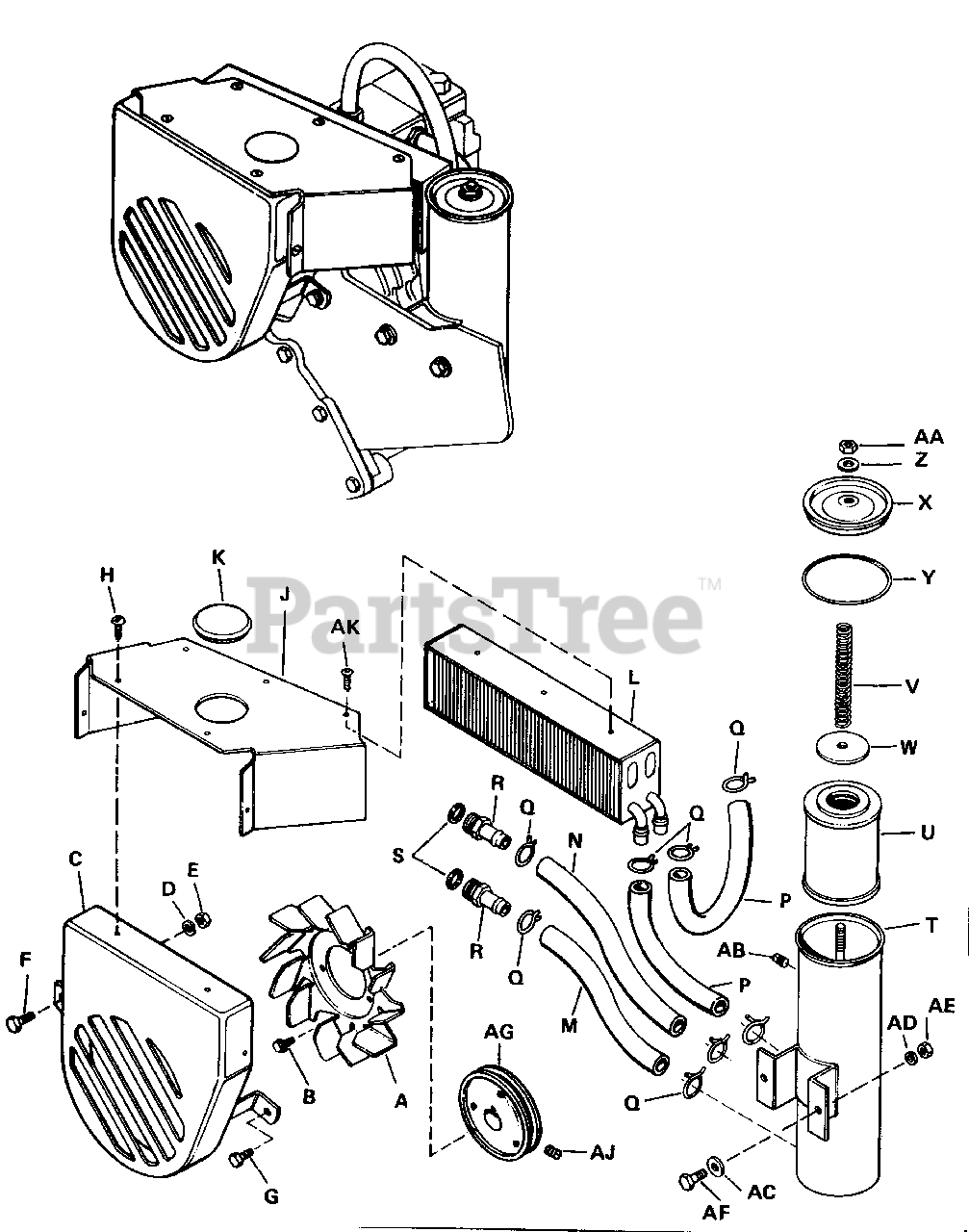

HYDROSTATIC COOLING GROUP Parts Diagram

  • Title
A

$115.99

$

Usually ships in 2-12 days

0

B

Simplicity 2715090

Hex. Screw, Washer Hd.

$

$

Not available

C

Simplicity 2166114

Fan Shroud Assembly

$

$

Not available

D

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

E

Simplicity 2717001

Full Hex. Nut 5/16"-18

$

$

Not available

F

Simplicity 2705017

Hex. Capscrew 5/16-18 x 3/4"

$

$

Not available

G

Simplicity 714026

Hex. Screw, Thd.

$

$

Not available

H

Simplicity 2714004

Tapscrew, Round hd. slot 3/8"

$

$

Not available

J

Simplicity 166134

Cooler Deflector

$

$

Not available

$

$

Not available

L

Simplicity 166135

Oil Cooler

$

$

Not available

M

Simplicity 2166136SM

Hydraulic Hose

$6.99

$

Usually ships in 2-12 days

0

N

Simplicity 2166137SM

Hydraulic Hose

$10.99

$

Usually ships in 2-12 days

0

P

Simplicity 2166138

Hydraulic Hose

$

$

Not available

Q

Simplicity 2166044

Hose Clamp

$

$

Not available

R

Simplicity 166139

Beaded Insert

$

$

Not available

S

$

$

Not available

T

Simplicity 166140

Reservoir Assembly

$

$

Not available

U

Simplicity 2166147SM

Filter Element

$146.99

$

In Stock, only 1 left!

0

$

$

Not available

$

$

Not available

X

Simplicity 166080

Reservoir Cover

$

$

Not available

Y

$

$

Not available

Z

Simplicity 166161

Nylon Washer

$

$

Not available

AA

Simplicity 2717525

Elastic Stop Nut 5/16"-18

$

$

Not available

AB

Simplicity 726253

Pipe Plug 1/4"

$

$

Not available

AC

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AD

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AE

Simplicity 2717001

Full Hex. Nut, 5/16-18"

$

$

Not available

AF

Simplicity 2705017

Hex. Capscrew, 5/16-18 x 3/4"

$

$

Not available

AG

Simplicity 2166173SM

Driven Pulley
(Superseded to 2166173ASM)

$117.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 2713503

Cup Pt. Socket Hd. Set Screw, 5/16-18 x 5/16"

$

$

Not available

AK

Simplicity 710002

Rd. Hd. Mach Screw, No. 10-32 x 1/2" lg.

$

$

Not available
