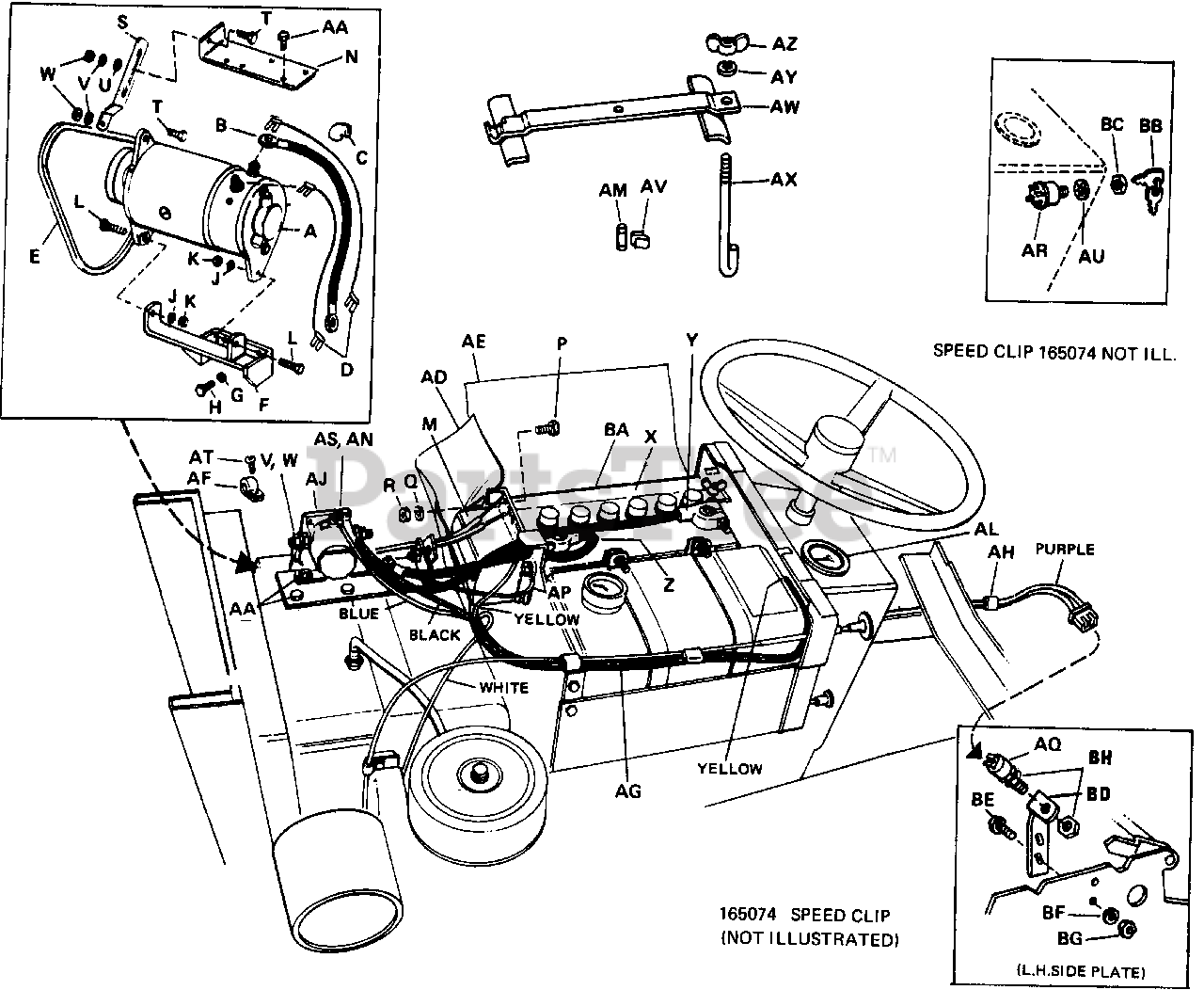

H-212 (2029952) - Allis-Chalmers Garden Tractor, 12hp ELECTRIC STARTER-GENERATOR SYSTEM Parts Diagram

Garden Tractor, 12hp

ELECTRIC STARTER-GENERATOR SYSTEM Parts Diagram

  • Title

A

Simplicity 122236

Motor-Generator

Note: FOR SERVICE CONTACT YOUR LOCAL UNITED MOTOR SERVICE DEALER (DELCO-REMY)

$

$

Not available

B

Simplicity 2122213

Generator Start Cable

$

$

Not available

C

Simplicity 2122023SM

Terminal Cover

$5.99

$

In Stock, Qty 12

0

D

Simplicity 122140

Reg. Gen. Wire

$

$

Not available

E

Simplicity 2157524SM

V-BELT, 39.12"

$26.99

$

In Stock, only 1 left!

0

F

Simplicity 2157654SM

Support Assembly

$

$

Not available

G

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

H

Simplicity 2715048

Hex. Cap Screw, 5/16"-18 x 3/4"

$

$

Not available

J

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

K

Simplicity 2717001

Full Hex; Nut, 5/16"-18

$

$

Not available

L

Simplicity 2705019

Hex. Cap Screw, 5/16"-18 x 1 1/4"

$

$

Not available

M

Simplicity 122193

Voltage Regulator

Note: FOR SERVICE CONTACT YOUR LOCAL UNITED MOTOR SERVICE DEALER (DELCO-REMY)

$

$

Not available

N

Simplicity 164254

Bracket

$

$

Not available

P

Simplicity 2705030

Hex. Cap Screw, 1/4"-20 x 3/4"

$

$

Not available

Q

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

R

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

S

Simplicity 2157102SM

Belt Tightener

$

$

Not available

T

Simplicity 2705017

Hex. Cap Screw, 5/16"-18 x 3/4"

$

$

Not available

U

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

V

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

W

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

X

Simplicity 2122190

Battery

$

$

Not available

Y

Simplicity 2122204

Cable (Battery to Solenoid)

$

$

Not available

Z

Simplicity 2122138

Cable (Battery to Ground)

$

$

Not available

AA

Simplicity 2715090

Screw Hex. Thread Forming, 1/4"-20 x 1/2"

$

$

Not available

AD

Simplicity 122142

Batter Insulation

$

$

Not available

AE

Simplicity 122143

Fuel Tank Insulation

$

$

Not available

AF

Simplicity 122195

Wire Clamp (Generator Cable)

$

$

Not available

AG

Simplicity 164256

Harness Assembly

$

$

Not available

AH

Simplicity 2165073SM

Speed Clip

$2.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 2122216SM

Solenoid

$

$

Not available

AL

Simplicity 2122131SM

Ammeter
(Superseded to 7019547YP)

$90.99

$

Usually ships in 2-12 days

0

AM

Simplicity 122172

Fuse, 20 Amp

$

$

Not available

AN

Simplicity 2717007

Full Hex. Nut, 10-32

$

$

Not available

AP

Simplicity 122147

Wire (Ground to Ground )

$

$

Not available

AQ

Simplicity 2122233SM

Safety Switch

$

$

Not available

AR

Simplicity 2122201SM

Starter Switch w/Keys

$

$

Not available

AS

Simplicity 2721003

Lock Washer, ext. No. 10

$

$

Not available

AT

Simplicity 714005

Rd . Hd. Screw 10-24 x 1/2"

$

$

Not available

AU

Simplicity 721509

Lock Washer Int. 9/16"

$

$

Not available

AV

Simplicity 122183

Clip Fuse

$

$

Not available

AW

Simplicity 170321

Battery Bracket

$

$

Not available

AX

Simplicity 122174

"J" Bolt

$

$

Not available

AY

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AZ

Simplicity 2718042

Wing Nut

$

$

Not available

BA

Simplicity 122199

Film, (SIMPLICITY)

$

$

Not available

BB

Simplicity 1717163SM

Keys

$8.99

$

In Stock, Qty 20+

0

BC

Simplicity 122235

Hex. Nut, Special

$

$

Not available

BD

Simplicity 166174

Switch Support

$

$

Not available

BE

Simplicity 2705017

Hex. Cap Screw, 5/16"-18 x 3/4"

$

$

Not available

BF

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BG

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

BH

Simplicity 2122234SM

Nut
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0
