H 1952 (55AI4HPD750) - Cub Cadet Walk-Behind Mower Kawasaki FH580V-CS25 Air Filter & Muffler Parts Diagram

Walk-Behind Mower

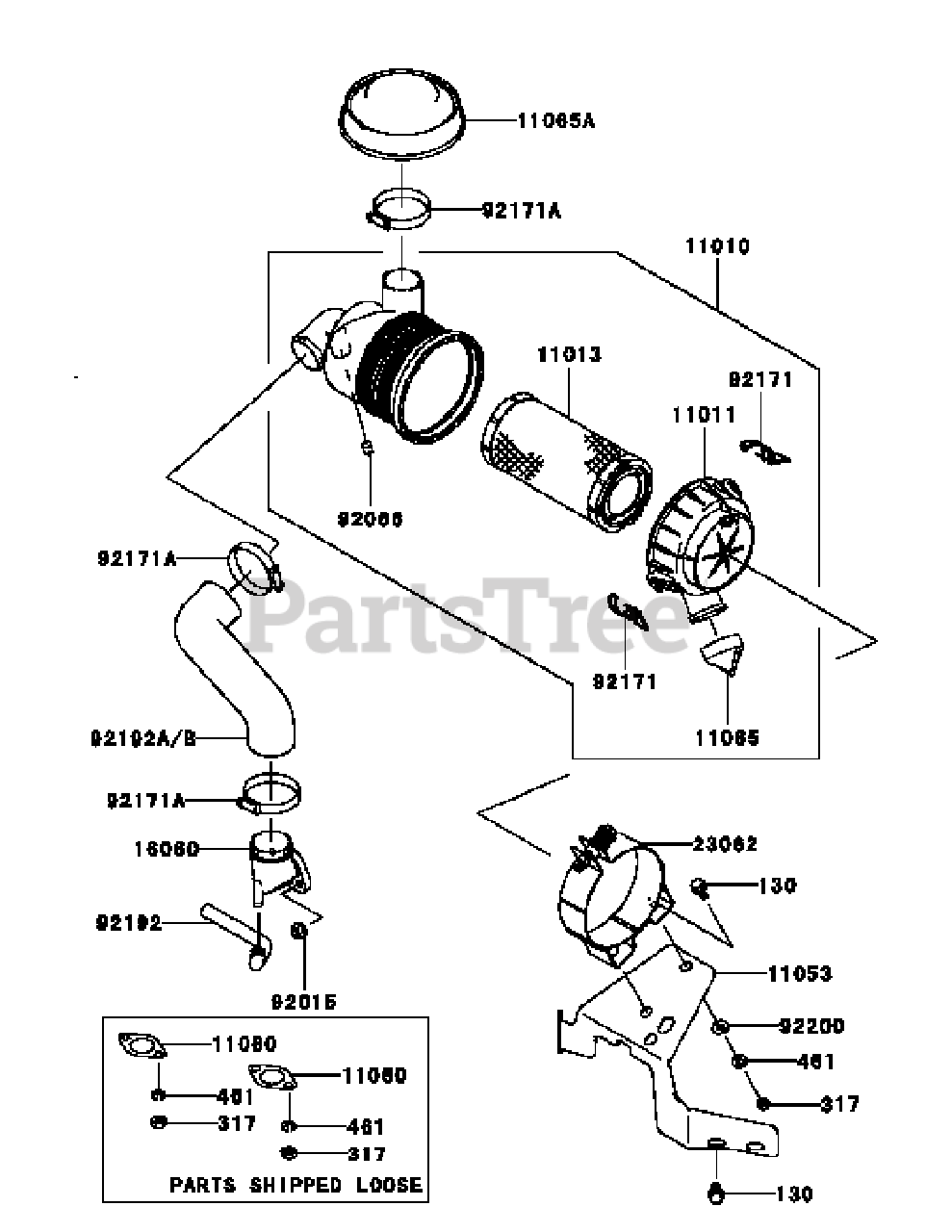

Kawasaki FH580V-CS25 Air Filter & Muffler Parts Diagram

  • Title

11010

Cub Cadet KM-11010-7017

FILTER-ASSY-AIR
(Superseded to KM-11010-7034)

$110.99

$

Usually ships in 2-5 days

0

11011

Cub Cadet KM-11011-7032

CASE-AIR FILTER

$53.99

$

Usually ships in 2-5 days

0

11013

Cub Cadet KM-11013-7029

ELEMENT-AIR FILTER

$21.99

$

In Stock, Qty 14

0

11053

Cub Cadet KM-11053-7019

BRACKET

$61.99

$

Usually ships in 2-5 days

0

11060

Cub Cadet KM-11060-7021

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11065

Cub Cadet KM-11065-7008

CAP

$19.99

$

In Stock, Qty 20+

0

11065A

Cub Cadet KM-11065-7011

CAP
(Superseded to KM-11065-7026)

$

$

Not available

130

Cub Cadet KM-130B0816

BOLT-FLANGED,8X16
(Superseded to KM-130BA0816)

$1.99

$

In Stock, only 4 left!

0

16060

Cub Cadet KM-16060-7011

PIPE-INTAKE

$29.99

$

In Stock, Qty 6

0

23062

Cub Cadet KM-23062-7012

BRACKET-COMP

$41.99

$

Usually ships in 2-5 days

0

317

Cub Cadet KM-317R0800

NUT-HEX-SMALL,8MM

$2.99

$

In Stock, Qty 16

0

461

Cub Cadet KM-461F0800

WASHER-SPRING,8MM
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0

92015

Cub Cadet KM-92015-1193

NUT
(Superseded to KM-92015-1367)

$4.49

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7018

PLUG

$11.99

$

Usually ships in 2-5 days

0

92171

Cub Cadet KM-92171-7009

CLAMP

$12.99

$

In Stock, Qty 6

0

92171A

Cub Cadet KM-92171-7010

CLAMP
(Superseded to KM-92173-7009)

$8.49

$

In Stock, only 2 left!

0

92192

Cub Cadet KM-92192-7013

TUBE

$44.99

$

Usually ships in 2-5 days

0

92192A

Cub Cadet KM-92192-7014

TUBE

$41.99

$

Usually ships in 2-5 days

0

92192B

Cub Cadet KM-92192-7081

TUBE

$

$

Not available

92200

Cub Cadet KM-92200-1213

WASHER,8.5X18X2.3

$2.99

$

Usually ships in 2-5 days

0
