H 1952 (55AI4HPD050) - Cub Cadet Walk-Behind Mower Kawasaki Engine Accessories 19HP Parts Diagram

Walk-Behind Mower

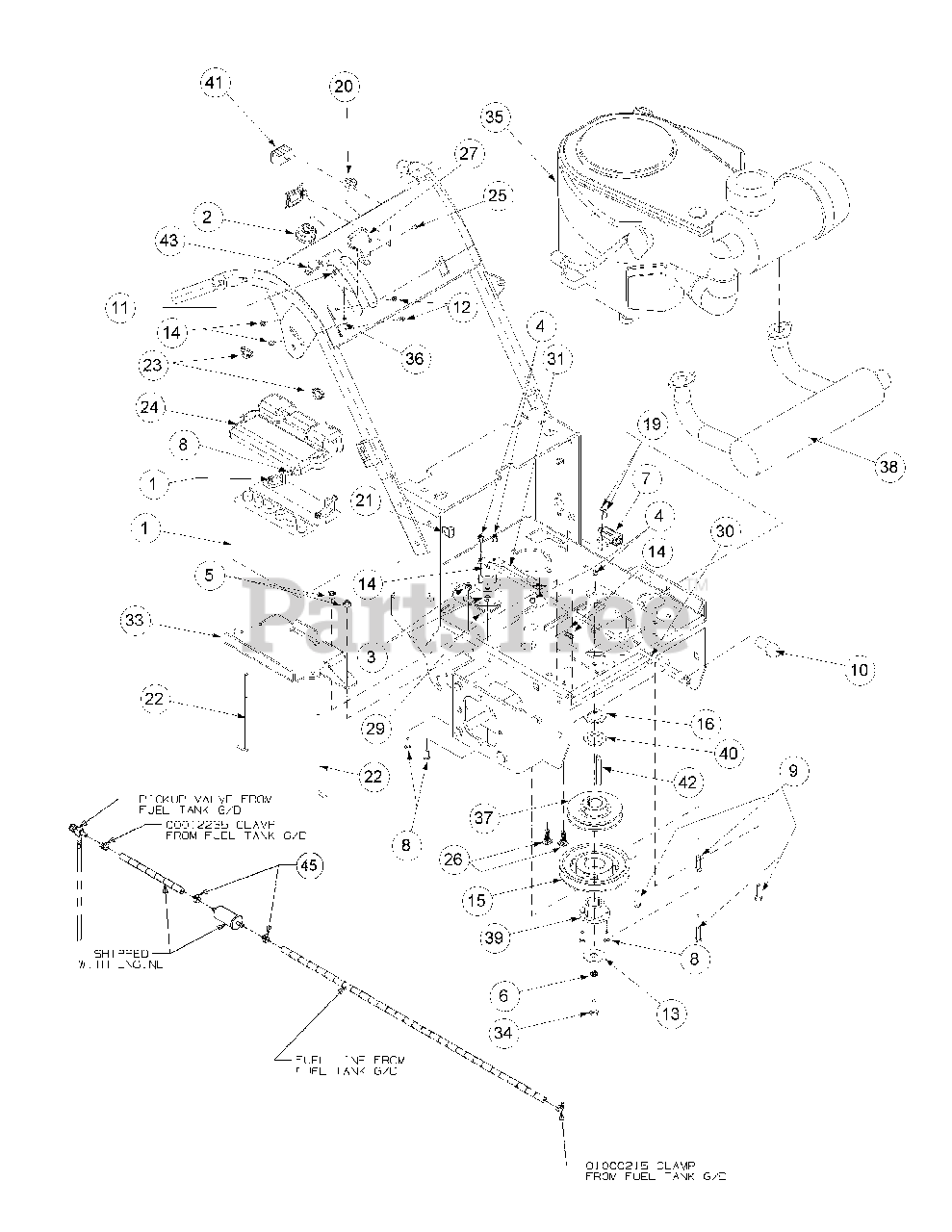

Kawasaki Engine Accessories 19HP Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery, 12V

$

$

Not available

2

Cub Cadet 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00012152

Lock Nut Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

7

Cub Cadet 00012242

Delta Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 7

0

8

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

9

Cub Cadet 00013198

Hex Cap Screw, 5/16 -18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 00013258

Rubber Boot

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00060056

Nut, 8-32, w/ star washer

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 00013669

Screw, Hex Washer w/Slot, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 00013675

Plated Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

15

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00073094

Engine Pulley Spacer

$14.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 00024233

Black Battery Cable 17" Long

$39.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 00032097

Nut, w/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

21

Cub Cadet 00060807

Support Clamp, 3/8 OD

$

$

Not available

22

Cub Cadet 911-0222A

Battery Hold Down Rod

$11.99

$

In Stock, only 1 left!

0

23

Cub Cadet 912-0397

Wing Nut, 1/4-20 w/Bell Wash
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01000204

Large Battery Cover

$11.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-3217

Machine Screw, 8-32

$6.99

$

In Stock, Qty 7

0

26

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

27

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 925-3001

Magnetic Solenoid Switch

$58.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01002252

Red Battery Cable 24"

$38.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01002253

Red Battery Cable 5"

$

$

Not available

33

Cub Cadet 01002637-0637

Battery Bracket

$

$

Not available

34

Cub Cadet 01002884

Capscrew, 7/16-20 x 1-1/4"

$

$

Not available

35

Cub Cadet 01009356P

19 Hp Twin Kawasaki Kai Engine

$

$

Not available

36

Cub Cadet 01003273P

Control Throttle w/detent

$

$

Not available

37

Cub Cadet 01007339

Cast Pulley, 1.125 Bore,

$95.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 01008867

Muffler

$358.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 00021973

Bushing, 1-1/8

$

$

Not available

40

Cub Cadet 00023822

Special Washer
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

41

Cub Cadet 925-04893

Hour Meter includes:
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 02004259

Clip

$6.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 01007533

Key Stick, 1/4 x 1/4 x 2.75

$11.99

$

In Stock, only 1 left!

0

43

Cub Cadet 02003479P

Choke Cable

$42.99

$

In Stock, only 4 left!

0

44

Cub Cadet 01007333

Hydro Pump Belt
(Superseded to 01007333P)

$54.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 01000215

Hose Clamp, 1/4-5/8, SS

$

$

Not available

Cub Cadet 00030574

Harness Wire

Note: Not shown

$

$

Not available

Cub Cadet 01001811

Hourmeter Harness,
(Superseded to 929-04195)

Note: Not shown

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 01002433

Kawasaki Harness Adapter

Note: Not shown

$

$

Not available

Cub Cadet KM-11013-7031

Air Filter

Note: Not shown

$26.99

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7025

Pre Cleaner

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

Note: Not shown

$18.99

$

In Stock, Qty 20+

0

Cub Cadet TC-611049

Spark Plug

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 01008867

Muffler

Note: Not shown

$358.99

$

Usually ships in 3-6 days

0

Cub Cadet KM-11060-7021

Muffler Gasket

Note: Not shown

$2.49

$

In Stock, Qty 20+

0

Cub Cadet KM-49019-0707

Fuel Filter
(Superseded to KM-49019-0027)

Note: Not shown

$9.99

$

In Stock, Qty 20+

0
